Installing A Receiver To An Existing Craftsman Garage Door Opener: A Complete DIY Guide for Homeowners

by
Installing A Receiver To An Existing Craftsman Garage Door Opener

Modernizing an older garage door system doesn’t always mean a full replacement. If you’re struggling with outdated remote compatibility or interference issues, installing a receiver to an existing Craftsman garage door opener can be a smart and cost-effective solution.

Installing A Receiver To An Existing Craftsman Garage Door Opener

This guide will walk you through everything you need to know—from understanding how receivers work to step-by-step instructions for a safe and effective installation. Whether you’re a seasoned DIYer or just looking to upgrade your garage system, this article is packed with tips and technical insight.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Why Install a New Receiver in Your Craftsman Garage Door Opener?

Craftsman garage door openers are known for their reliability and longevity. However, older models often use outdated radio frequencies or technologies that may not be compatible with newer remote controls or smart home systems.

Here are a few reasons you might consider installing a receiver to an existing Craftsman garage door opener:

  • Incompatible remote controls
  • Signal interference issues
  • Desire to use a universal or smart remote
  • Replacing a damaged or malfunctioning original receiver

A new external receiver can breathe new life into your garage door opener without the cost of a full replacement.

How Garage Door Receivers Work

Receivers are responsible for interpreting the signal sent from your remote control and triggering the garage door motor. In modern systems, receivers are often built into the opener. But older Craftsman models use external or standalone receivers that can be swapped or upgraded.

When installing a receiver to an existing Craftsman garage door opener, you’ll typically:

  • Disconnect or bypass the internal receiver (if applicable)
  • Wire the new receiver to the existing motor terminals
  • Program new remotes or keypads
  • Test the setup for functionality and safety

What You’ll Need Before You Begin

To get started with your garage door receiver installation, here’s a list of tools and components you should gather:

Tools:

  • Flathead screwdriver
  • Wire cutters/strippers
  • Drill (optional, for mounting)
  • Voltage tester (recommended)

Materials:

  • Compatible external receiver (e.g., LiftMaster 850LM, Linear Delta-3, etc.)
  • 2-conductor low-voltage wire (18- or 22-gauge)
  • Wire nuts or connectors
  • Compatible remote transmitters

Be sure to purchase a receiver that works with your preferred remotes and supports the power type (AC/DC) of your existing opener.

Installing A Receiver To An Existing Craftsman Garage Door Opener: Step-by-Step Instructions

Let’s dive into the actual installation. The steps below cover the general process, but always refer to the instructions provided by the receiver’s manufacturer.

Step 1: Disconnect Power

Safety first. Disconnect your Craftsman garage door opener from the power source. Either unplug it or turn off the breaker that powers the unit.

Step 2: Locate Terminal Screws on Your Garage Door Opener

On most Craftsman openers, you’ll find terminal screws on the back or side of the opener near the antenna or wall control wire inputs. These are usually labeled as:

  • “Wall Control” or “Push Button”
  • “COM” or “Common”

These terminals are where you’ll wire in the new receiver.

Step 3: Mount the New Receiver

Choose a safe, dry location near the opener to mount the receiver. It can be mounted directly onto the garage ceiling or a nearby beam using screws or adhesive.

Make sure the receiver’s antenna has enough clearance to hang down freely, away from metal or interference sources.

Step 4: Connect Wires From the Receiver to the Opener

Use your low-voltage wire to connect the terminals from your new receiver to the opener. Generally:

  • Connect one wire from the receiver’s “push button” terminal to the “wall control” terminal on the opener.
  • Connect the second wire from the receiver’s “common” terminal to the “COM” terminal on the opener.

Use wire nuts or crimp connectors to ensure a tight and safe connection.

Step 5: Power the Receiver

Some receivers draw power directly from the opener, while others require an external plug-in transformer. If yours requires an external power supply, plug it into a nearby outlet and route the cable safely.

Step 6: Program the Remotes

Follow the instructions provided with your new receiver to sync the remotes. Most require you to:

  • Press and hold a “Learn” or “Program” button on the receiver
  • Press the button on your remote
  • Wait for an LED or beep to confirm successful pairing

You can usually pair multiple remotes or keypads depending on the receiver model.

Step 7: Test the Setup

Reconnect power to your Craftsman opener. Test each remote from various distances and angles. Make sure the door opens and closes smoothly.

Also, test the wall control to ensure it still works as expected. If it doesn’t, you may need to check wiring connections.

Tips for a Successful Receiver Installation

  • Check compatibility: Make sure the receiver supports your opener’s voltage and wiring type.
  • Avoid radio interference: Keep the receiver antenna clear of metal beams or light fixtures.
  • Label wires during installation for easy troubleshooting later.
  • Don’t skip safety tests: Ensure the door’s safety reversal system works after installation.

Troubleshooting Common Issues After Installation

Remote doesn’t work?

  • Make sure you programmed it correctly.
  • Check the receiver’s power connection.
  • Recheck the terminal wiring.

Wall control stopped working?

  • Ensure the wall control and receiver don’t share the same terminal in a way that causes interference.

Door operates erratically?

  • Make sure wires are not loose.
  • Try relocating the receiver slightly to improve signal clarity.

Upgrading to Smart Home Integration

If you’re already going through the effort of installing a receiver to an existing Craftsman garage door opener, why not take it a step further?

Some receivers come with Wi-Fi or Bluetooth capabilities, enabling control via smartphone apps like MyQ, Nexx, or Aladdin Connect. These systems offer:

  • Remote door control from anywhere
  • Activity notifications
  • Integration with Amazon Alexa, Google Assistant, or Apple HomeKit

Installing a smart-compatible receiver will not only modernize your Craftsman opener but make your entire home more connected.

Cost of Installing a New Garage Door Receiver

The good news is that this is one of the most budget-friendly upgrades you can do.

ItemEstimated Cost
External receiver unit$30 – $80
Remote control transmitters$20 – $40 each
Wiring & connectors$10 – $20
Optional smart hub$50 – $100

Total project cost typically ranges from $50 to $150, depending on your chosen features.

Is Installing A Receiver To An Existing Craftsman Garage Door Opener Worth It?

Absolutely. Instead of replacing your entire opener system, you can upgrade functionality for a fraction of the cost. Benefits include:

  • Compatibility with newer remotes
  • Better range and reduced signal interference
  • Potential smart home integration
  • Extended life of your existing system

If your current Craftsman opener is still working mechanically but lacks modern features, this is an ideal middle ground.

Final Thoughts

Installing a receiver to an existing Craftsman garage door opener is a smart, affordable, and relatively simple DIY project that offers big benefits. Whether you’re trying to modernize your remote system, fix incompatibility issues, or add smart capabilities, an external receiver gives your old opener a powerful new lease on life.

Make sure to follow all safety precautions, double-check wiring instructions, and always test the system thoroughly after installation. With the right tools and a little know-how, you can save money and enhance your garage door’s performance in just a few hours.

Installing A Craftsman Garage Door Opener On A Vertical Door: A Complete Homeowner’s Guide

by
Installing A Craftsman Garage Door Opener On A Vertical Door

If you’re considering installing a garage door opener and your setup involves a vertical lift or high-lift system, you’re likely wondering: Is it even possible to install a Craftsman garage door opener on a vertical door? The answer is yes, but it requires a different approach than with standard garage doors. This comprehensive guide will walk you through installing a Craftsman garage door opener on a vertical door, with step-by-step instructions, critical considerations, and expert tips.

Installing A Craftsman Garage Door Opener On A Vertical Door

Whether you’re a DIY enthusiast or a homeowner looking to better understand your options, this guide will help you make informed decisions for a smooth and safe installation.

Understanding Vertical Garage Doors

Before diving into the specifics of installing a Craftsman opener, it’s crucial to understand what makes vertical garage doors unique.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

What Is a Vertical Garage Door?

A vertical lift garage door moves straight up along the wall instead of rolling along a curved track into the ceiling. These are commonly found in commercial spaces, high-ceiling garages, and even some residential setups where overhead clearance is limited.

How Is It Different From a Standard Sectional Garage Door?

  • No horizontal track: Traditional openers assume the door transitions horizontally. Vertical doors don’t do that.
  • Spring system variations: Vertical doors often use high-lift torsion springs instead of standard torsion or extension springs.
  • Track alignment: The tracks are installed parallel to the wall rather than curving toward the ceiling.

Because of these differences, installing a Craftsman garage door opener on a vertical door requires adjustments from a typical installation.

Can You Install a Craftsman Opener on a Vertical Door?

Yes—but not out of the box. Craftsman garage door openers are designed for standard residential doors with curved track systems. However, with the right type of opener, adapters, and mounting configuration, it’s possible.

Best Craftsman Opener Type for Vertical Doors

You’ll need a jackshaft-style opener (also known as a wall-mount opener). Traditional ceiling-mounted trolley openers are not suitable without significant modifications.

While Craftsman doesn’t produce a jackshaft opener as commonly as some other brands (like LiftMaster or Chamberlain), many Craftsman openers can still be adapted for use with vertical doors when installed creatively and safely.

Tools & Materials Needed

Before installing a Craftsman garage door opener on a vertical door, gather these items:

  • Craftsman garage door opener kit (preferably 3/4 HP or higher for torque)
  • Wall-mount conversion kit (if using a standard opener)
  • Vertical track and torsion spring setup
  • Steel mounting brackets
  • Lag bolts and screws
  • Drill with bits
  • Level
  • Garage door safety beam sensors
  • Emergency manual release cord
  • Optional: jackshaft motor with side mount bracket

Safety Considerations

Garage doors are under high tension, especially in vertical lift setups. If you’re unsure or inexperienced:

  • Hire a garage door professional to adjust springs.
  • Use caution with torsion springs, which can cause injury.
  • Always disconnect power during installation.
  • Use ladder safety and protective gear.

Installing A Craftsman Garage Door Opener On A Vertical Door: Step-by-Step Process

Here’s the main part of this guide, where we walk you through the process of installing a Craftsman garage door opener on a vertical setup.

Step 1: Inspect Your Vertical Door Configuration

  • Confirm the spring system: You’ll likely need a high-lift torsion spring setup.
  • Make sure your track system is clean and operates without friction.
  • Measure the door weight and height to ensure your opener has sufficient power.

Step 2: Choose a Suitable Mounting Location

For a vertical door, you can’t mount the opener on the ceiling as usual. Instead:

  • Wall-mount the opener beside the torsion bar.
  • The jackshaft motor connects directly to the bar to rotate it.
  • Craftsman openers may require a conversion bracket to work in this position.

⚠️ Tip: Ensure there’s at least 8–12 inches of clearance beside the door tracks for the opener to fit comfortably.

Step 3: Install Mounting Brackets

  • Use heavy-duty brackets to support the motor’s weight.
  • Mount the bracket to the wall, aligning with the torsion shaft.
  • Confirm the brackets are level and centered.

If using a traditional Craftsman opener, you may need to build a custom support frame to hold the opener horizontally above the vertical track line.

Step 4: Attach the Craftsman Opener

  • Mount the motor using the manufacturer’s bolts or heavy-duty lag screws.
  • Align the opener’s drive arm (or gear) with the torsion shaft.
  • Use an adapter coupler if the shaft diameter doesn’t match.

If you’re using a conversion setup, ensure the trolley arm is adjusted so it won’t pull the door off its vertical alignment.

Step 5: Connect the Drive System

  • If wall-mounted: Connect the opener to the torsion shaft using a direct-drive coupler.
  • If overhead (less ideal): Connect a trolley system to a modified curved arm—though this risks improper lifting forces.

Direct shaft-drive is highly recommended for true vertical doors.

Installing Safety Features for Vertical Door Systems

Even when installing a Craftsman garage door opener on a vertical door, safety sensors are critical.

Install Photoelectric Safety Sensors:

  • Mount the sensors 6 inches above the floor, one on each side of the door.
  • Wire them to the opener using low-voltage wiring.
  • Test sensor alignment—green lights should remain steady when properly aligned.

Emergency Manual Release:

  • Ensure a manual rope release is within reach in case of power failure.
  • In vertical systems, it’s especially important to prevent the door from slamming down.

Common Challenges & Troubleshooting Tips

Opener Doesn’t Move the Door

  • Check torsion springs—they may need adjusting.
  • Make sure the coupler is tight on the shaft.
  • Inspect the opener motor for sufficient torque output.

Door Jumps or Slams

  • May indicate incorrect spring balance.
  • Verify smooth movement of the track rollers.
  • Adjust travel limits on the opener.

Sensors Not Working

  • Realign safety sensors.
  • Check wiring connections.
  • Bypass the sensors temporarily for testing, but never leave them disconnected.

How Vertical Garage Door Setups Benefit From Smart Openers

Many modern Craftsman openers come with MyQ smart technology (if compatible). This allows:

  • Remote control and monitoring of door position.
  • Security alerts when the door is opened.
  • Integration with smart home assistants like Alexa or Google Home.

Even with a vertical setup, these features function the same once the opener is correctly wired and installed.

Professional Installation vs. DIY

If you’re unsure about installing a Craftsman garage door opener on a vertical door, professional installation is strongly recommended. Reasons include:

  • Torsion spring calibration is dangerous without proper tools.
  • Custom bracket building may be beyond typical DIY capabilities.
  • Warranty considerations—DIY installation might void warranty terms.

Professionals ensure code compliance, balance, and maximum safety.

Maintenance Tips After Installation

  • Lubricate rollers and hinges every 6 months.
  • Check opener mounting brackets for looseness.
  • Inspect the coupler and shaft for wear.
  • Test safety reversal function monthly.
  • Replace the battery backup every 1–2 years if equipped.

Final Thoughts on Installing a Craftsman Garage Door Opener on a Vertical Door

Installing a Craftsman garage door opener on a vertical door is a specialized project that requires planning, technical adjustments, and safety awareness. However, with the right tools, hardware, and guidance, it’s a feasible DIY project for experienced homeowners.

If you’re retrofitting an existing Craftsman opener or purchasing a new model, always consider the door configuration, mounting type, and drive mechanism. When done properly, your vertical garage door will function just as smoothly and safely as a standard door system.

How To Wire Safety Beams For Craftsman Garage Door Opener: A Step-by-Step Installation Guide

by
How To Wire Safety Beams For Craftsman Garage Door Opener

When it comes to garage door safety, nothing is more critical than correctly wiring and installing your safety sensors. If you’re dealing with a Craftsman garage door opener and need help, you’re in the right place. In this comprehensive guide, we’ll walk you through how to wire safety beams for Craftsman garage door opener with clear, actionable steps—even if you’re a beginner.

How To Wire Safety Beams For Craftsman Garage Door Opener

From understanding how these sensors work to ensuring proper alignment and wiring, we’ll cover it all. With the right tools and this guide, you’ll have your Craftsman garage door operating safely and smoothly in no time.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Why Safety Beams Matter for Garage Doors

Before diving into the technical steps, let’s first understand what safety beams do. Safety beams (also known as photoelectric sensors) are installed near the bottom of your garage door rails. They emit an invisible infrared beam across the door opening.

If the beam is interrupted—say by a person, pet, or object—the garage door will automatically stop and reverse. This prevents injuries, accidents, or property damage.

All modern garage door openers, including those from Craftsman, are required by federal law (UL 325 compliance) to include these safety sensors.

Understanding the Basics Before Wiring Safety Beams

What You’ll Need

Before starting the process of wiring safety beams for your Craftsman garage door opener, gather the following tools and materials:

  • Craftsman safety beam kit (included with opener or sold separately)
  • Phillips-head screwdriver
  • Wire strippers
  • Electrical tape or wire nuts
  • Mounting brackets
  • 2-conductor low-voltage wire (if replacement is needed)
  • Multimeter (optional, for testing connections)

Where Do the Safety Beams Go?

  • Location: One sensor is installed on either side of the garage door, no more than 6 inches from the floor.
  • Wiring path: Each sensor wires back to the motor head (opener unit on the ceiling).
  • Polarity: Craftsman sensors are usually non-polarized, meaning it doesn’t matter which wire goes to which terminal—as long as both wires are connected.

How To Wire Safety Beams For Craftsman Garage Door Opener: Step-by-Step Instructions

Let’s get into the detailed steps of wiring and installing the safety beams properly.

Step 1: Disconnect Power

For safety reasons, unplug your Craftsman garage door opener from the power outlet or switch off the breaker. Working with live wires is dangerous and could damage the unit.

Step 2: Mount the Safety Sensors

  1. Identify the brackets that came with your Craftsman opener.
  2. Attach the brackets to the vertical tracks of your garage door, around 4–6 inches from the floor.
  3. Slide the safety beams into the brackets. Typically, the sensor with the amber LED is the transmitter, and the one with the green LED is the receiver.
  4. Tighten screws to hold the sensors firmly, but don’t fully lock them yet—you’ll align them later.

Step 3: Route the Wires

  1. Use low-voltage 2-conductor wire to run from each sensor to the opener.
  2. Secure the wire along the wall using staples or clips.
  3. Label each wire to identify the left and right sensors for easier troubleshooting.
  4. Run both wires up the garage wall and across the ceiling toward the garage door opener unit.

💡 Pro Tip: Avoid sharp bends and keep wires away from moving parts like springs or rollers.

Step 4: Connect to the Garage Door Opener

At the back of your Craftsman opener, you’ll find the terminal strip, typically labeled:

  • RED and WHITE (power and wall control)
  • BLACK and WHITE (safety sensors)

Here’s how to wire them:

  1. Twist or insert the two white wires (one from each sensor) into the WHITE terminal.
  2. Twist or insert the two black wires into the BLACK terminal.
  3. Use a small flat screwdriver to secure the wires in place.

✅ Craftsman systems are usually non-polarized, so either wire can be connected as long as they go to the correct terminal set.

Step 5: Align the Sensors

Once everything is wired, it’s time to align the safety beams:

  1. Plug your opener back in.
  2. Check for LED lights on both sensors:
    • Amber means the sender is powered.
    • Green means the sensors are aligned and communicating.
  3. Adjust one or both sensors until the green light is solid.
  4. Once aligned, tighten all screws to secure the sensors.

Troubleshooting Safety Beam Wiring for Craftsman Garage Door Openers

After completing the wiring, you might still encounter issues. Here’s how to diagnose common problems related to how to wire safety beams for Craftsman garage door opener setups.

Problem: Door Won’t Close

  • Flashing lights on the opener? This usually indicates misalignment.
  • No green LED? Realign the sensors until the green light is solid.
  • Blinking green LED? There might be an obstruction or loose connection.

Problem: One LED is Off

  • Check the wiring connection to that sensor.
  • Inspect the wire for nicks or staples piercing the insulation.
  • Swap the sensor positions to test if one is faulty.

Problem: Both LEDs Are Off

  • Check power to the opener.
  • Test the terminal connections.
  • Inspect all wiring from sensor to opener.

Frequently Asked Questions

Q1: Can I install safety beams myself without a technician?

Yes, many homeowners successfully wire safety beams themselves. Follow the manufacturer’s instructions and this guide carefully.

Q2: Do I need to replace safety beams if one fails?

Most of the time, yes. Craftsman sensors are sold as paired units and must match the opener model. Mixing sensors from different brands can cause malfunction.

Q3: What gauge wire should I use for safety beam wiring?

Use 22- or 24-gauge 2-conductor low-voltage wire. It’s sufficient for the current needed and easy to route.

Q4: Do safety sensors work in the dark?

Yes. The infrared beam isn’t affected by visible light. However, ensure the lenses are clean and the sensors are not exposed to harsh weather or water.

When Should You Call a Professional?

While this guide on how to wire safety beams for Craftsman garage door opener is beginner-friendly, certain scenarios may call for professional help:

  • You’re uncomfortable with electrical work
  • You’ve double-checked wiring and alignment, and the sensors still won’t activate
  • Your garage opener is older and incompatible with modern sensors

Hiring a garage door technician can save you hours of frustration and ensure your system is safe and compliant.

Tips for Maintaining Garage Door Safety Sensors

Once your safety beams are wired and working, here are a few tips to keep them in good condition:

  • Clean the lenses monthly with a soft cloth.
  • Check for loose wires or signs of corrosion at the terminals.
  • Make sure the sensor brackets stay secure after repeated door operation.
  • Test the sensors regularly by placing an object in the beam’s path.

Final Thoughts on How To Wire Safety Beams For Craftsman Garage Door Opener

Wiring safety beams isn’t just about convenience—it’s about safety and compliance. Following this detailed guide on how to wire safety beams for Craftsman garage door opener ensures your system is functioning correctly, helping to prevent accidents and maintain peace of mind.

Whether you’re installing new sensors or replacing faulty ones, proper wiring and alignment are key to a secure and functional garage door opener. Take your time, double-check connections, and don’t hesitate to call for help if needed.

With just a few tools and some patience, you can complete this project and know your garage door is as safe as possible.

How To Wire A Craftsman Garage Door Opener Wiring Diagram: Step-by-Step Guide for DIY Installers

by
How To Wire A Craftsman Garage Door Opener Wiring Diagram

If you’ve ever wondered how to wire a Craftsman garage door opener wiring diagram, you’re in the right place. Whether you’re installing a new unit, replacing an old one, or just need help understanding how the wiring works, this comprehensive guide is designed to help you through the process.

How To Wire A Craftsman Garage Door Opener Wiring Diagram

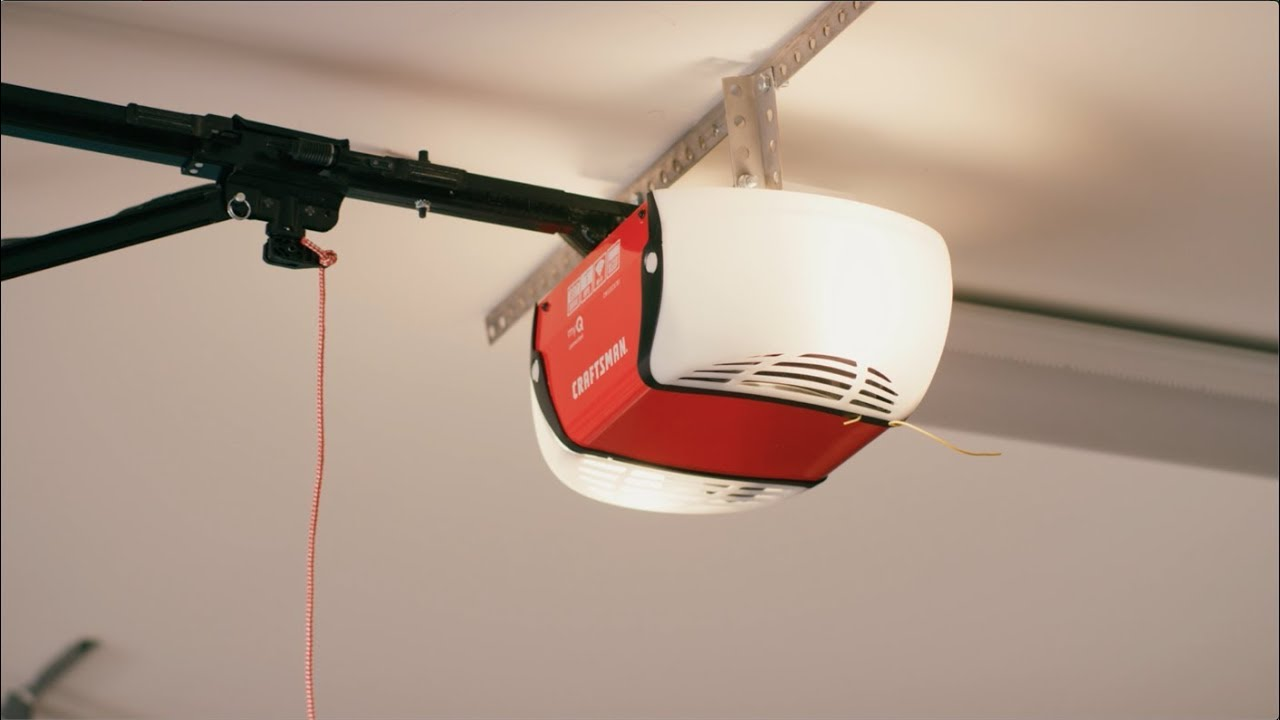

Craftsman garage door openers are among the most popular and widely used models in North America. Known for their durability and user-friendly design, many models also feature simple wiring systems that allow for DIY installation. However, dealing with electrical connections, sensors, and wall controls still requires some basic understanding and a solid wiring diagram.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

In this article, we’ll walk you through everything from the tools you’ll need, how to interpret a Craftsman garage door opener wiring diagram, and step-by-step instructions to wire the unit safely and correctly.

How To Wire A Craftsman Garage Door Opener Wiring Diagram: Understanding the Basics

To properly wire your Craftsman garage door opener, you need to understand the components included and how they connect.

Key Components in Craftsman Garage Door Opener Wiring

  1. Power Supply Cord
    Supplies electrical power to the motor unit.
  2. Wall-Mounted Control Panel
    Allows manual operation from inside the garage.
  3. Safety Sensors (Photo-Eye Sensors)
    Installed on both sides of the garage door near the ground to detect obstacles.

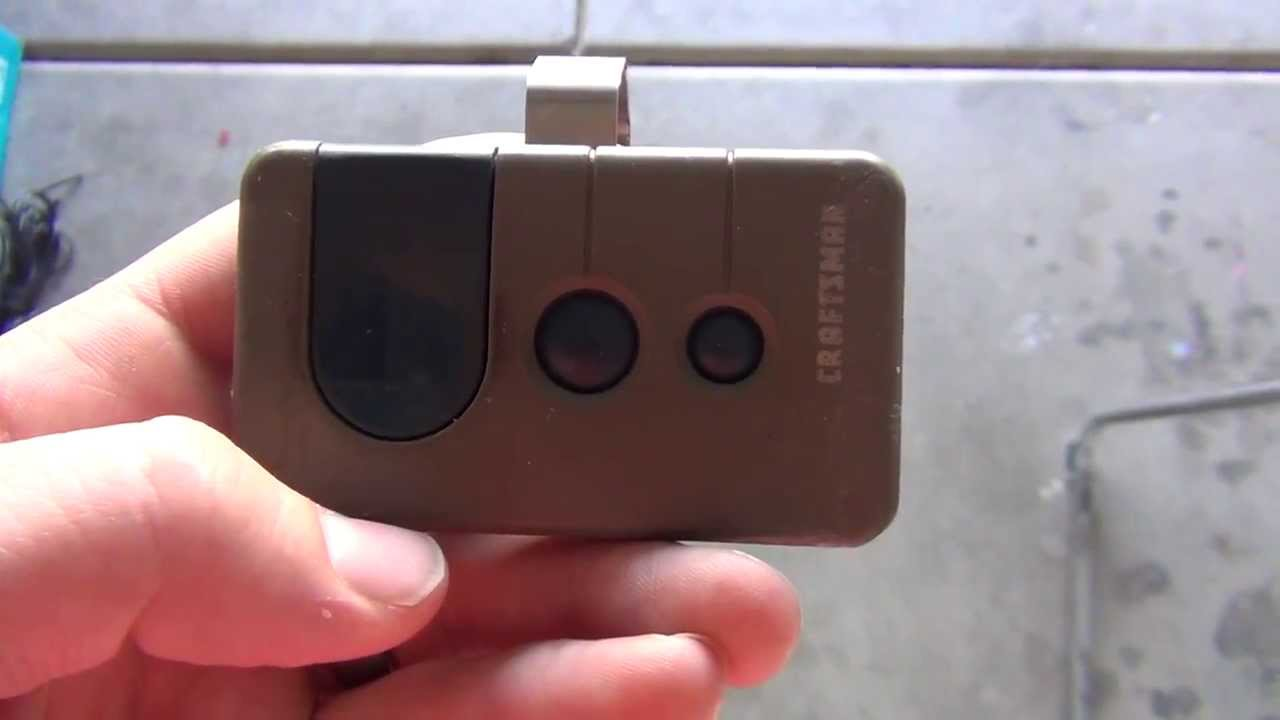

  4. Remote Receiver and Antenna
    Allows wireless signal reception from remote controls.
  5. Motor Unit
    The brain of the system where all wiring connects.
  6. Garage Door Light
    Wired to the unit, this light activates when the opener is used.

Tools You’ll Need to Wire a Craftsman Garage Door Opener

Before diving into wiring, make sure you have these essential tools:

  • Flathead and Phillips screwdrivers
  • Wire stripper/cutter
  • Electrical tape
  • Ladder
  • Voltage tester
  • Drill (optional, for mounting)

Reading and Understanding the Wiring Diagram

A typical Craftsman garage door opener wiring diagram will show you how all components connect to the motor unit. Diagrams are usually located in the user manual or inside the unit’s cover.

Common Color Codes:

Wire ColorFunction
WhiteCommon (neutral)
RedWall control wire
BlackPower (hot)
Blue/GreenSensor wire
YellowLight output

Understanding these color codes is critical when you wire the unit, especially if you’re replacing existing connections.

Step-by-Step Instructions: How To Wire A Craftsman Garage Door Opener Wiring Diagram

Let’s go through the installation and wiring process in detail:

Step 1: Disconnect Power

Safety first. Unplug the opener or shut off the breaker to avoid any electric shock during installation.

Step 2: Mount the Motor Unit

Secure the motor unit to the ceiling using the provided bracket. Ensure it aligns with the center of your garage door.

Step 3: Install the Wall Control

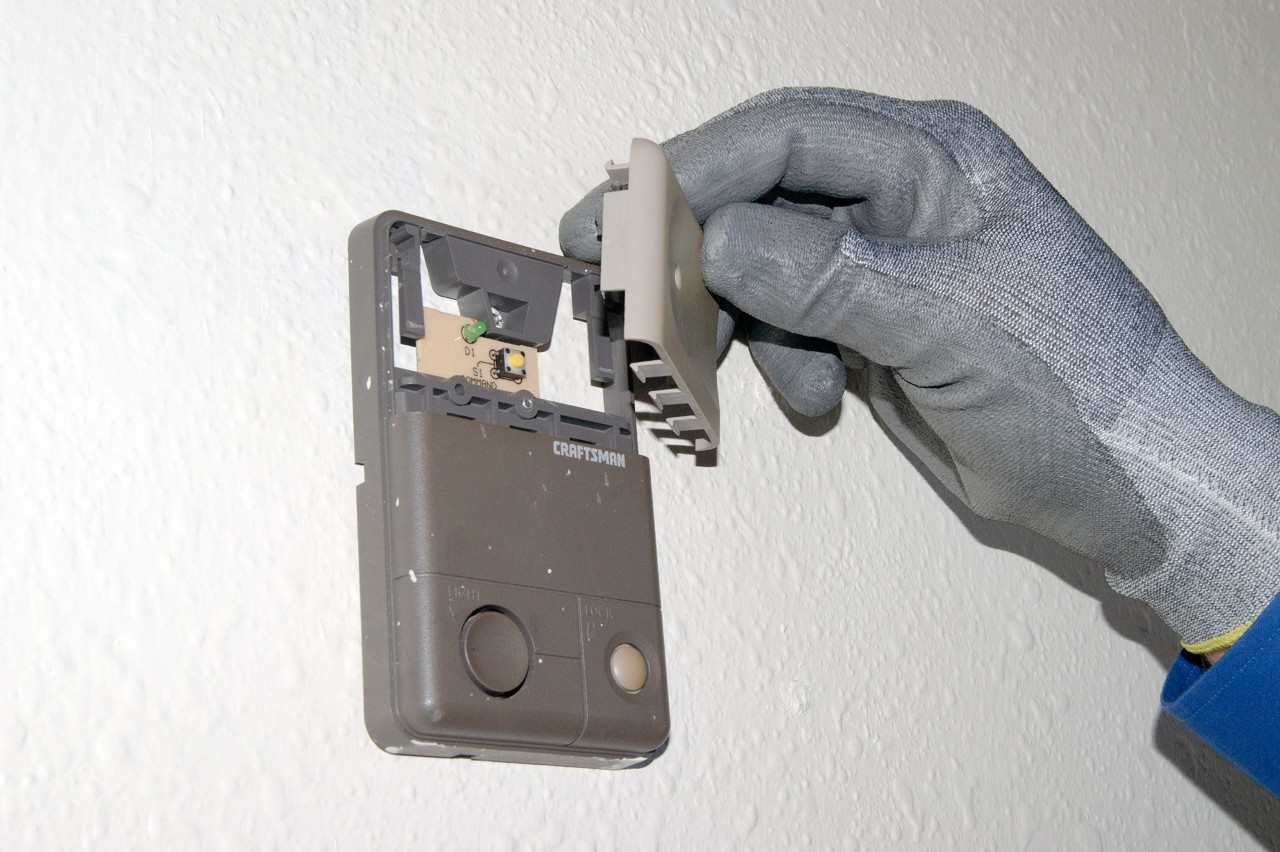

Mount the wall-mounted control panel at eye level near the entry door. Run the red and white wires from the control panel to the terminals on the back of the motor unit. Most Craftsman models label these terminals:

  • Red wire goes to R or Terminal 1
  • White wire goes to W or Terminal 2

Use low-voltage wire (18 to 22 gauge), usually included in the box.

Step 4: Wire the Safety Sensors

Mount the photo-eye sensors on either side of the garage door opening, 6 inches above the floor. Align them directly across from each other.

Each sensor will have two wires:

  • One white
  • One white with a black stripe

Run both sets of wires back to the motor unit and connect as follows:

  • White wires from both sensors twist together and connect to the white terminal (often labeled “Sensor White”).
  • Striped wires twist together and connect to the gray or black terminal.

Use staples or insulated clips to secure the wires along the garage wall and ceiling.

Step 5: Connect the Power Cord

Plug in the unit if it’s a standard 120V model. If it’s hardwired, connect black (hot), white (neutral), and green (ground) wires to your home wiring circuit using wire nuts.

Use a voltage tester to confirm no live current is present before touching house wires.

Step 6: Test the Wiring

Now that all components are wired:

  • Test the wall control — the door should open/close.
  • Use your remote to ensure the receiver works.
  • Check the safety sensors by blocking one sensor — the door should not close.

Common Wiring Mistakes to Avoid

  • Reversing sensor wires: This can cause sensor failure even if both are powered.
  • Loose connections: Make sure wire nuts are tight and tape connections for safety.
  • Mixing up terminal wires: Follow the manual or diagram exactly—reversed wires will prevent the opener from working.
  • Not securing wires properly: Loose wires can tangle with the door mechanism or be damaged.

Tips for Reading Your Specific Craftsman Wiring Diagram

Each model might vary slightly. Here’s how to decode your specific diagram:

  1. Look for labels like “Wall Control,” “Safety Sensor,” or “Motor Terminals.”
  2. Match symbols with actual components—the legend or key should help.
  3. Pay attention to line colors—follow the color code strictly.
  4. Zoom in or print a copy of the diagram for easy reference while working.

Wiring for Additional Accessories

Craftsman openers often support optional features:

Keypad Wiring

Some older models require wiring for exterior keypads. These usually connect to the same terminals as the wall button (red and white).

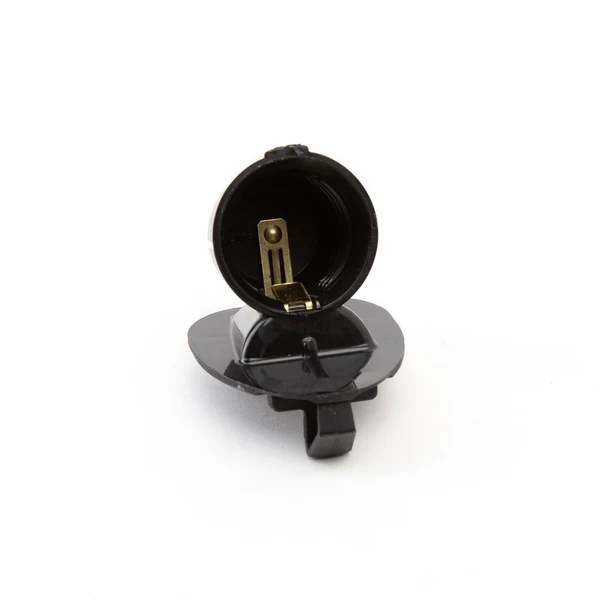

Light Module

Garage door lights often plug directly into the motor housing. However, in some models, they require wiring to a separate relay.

Battery Backup (Optional)

If you have a unit with battery backup, there may be additional wiring or slots for a battery pack inside the motor housing.

Safety Tips When Wiring a Garage Door Opener

  • Turn off power at the breaker.
  • Avoid pinching wires between mounting brackets.
  • Do not run low-voltage wires in the same conduit as high-voltage wires.
  • Label wires during disassembly to make reassembly easier.

Final Testing and Troubleshooting

Once the opener is wired and powered on, perform a full system test:

  1. Open and close the door using the wall control and remote.
  2. Block the safety sensor beam — door should reverse or not close.
  3. Check light operation if your opener has built-in lights.
  4. Listen for unusual sounds—this could indicate wiring issues or motor strain.

Common Fixes:

IssueFix
Wall control not workingCheck red/white wire connections
Sensors flashingMisalignment or reversed wiring
Door won’t moveRecheck all terminal connections and fuses
Remote works, wall doesn’tLikely wall button wiring problem

Conclusion

Wiring a Craftsman garage door opener may seem intimidating, but once you understand the wiring diagram and component layout, it becomes a manageable DIY task. Whether you’re installing a new unit or rewiring an old one, following proper procedures and safety precautions ensures reliable operation for years.

Remember, always consult the specific model manual for wiring diagrams tailored to your unit. If you’re ever in doubt, contacting a licensed electrician or garage door technician is a wise move.

Now that you know how to wire a Craftsman garage door opener wiring diagram, you can enjoy the convenience and security of your garage opener with full confidence.

How To Use Lock Function On Craftsman Garage Door Opener: A Complete Safety and Security Guide

by
How To Use Lock Function On Craftsman Garage Door Opener

Craftsman garage door openers are known for their reliability and advanced features. One function that often goes underutilized is the Lock function, which offers added safety and peace of mind for homeowners. If you’re asking, “How to use lock function on Craftsman garage door opener?”—you’re not alone.

How To Use Lock Function On Craftsman Garage Door Opener

This guide will explain what the Lock function is, how to use it properly, when to activate it, and why it’s one of the best features for home security. Whether you’re a new user or just exploring more of your Craftsman garage door opener’s capabilities, this article will walk you through everything you need to know.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

How To Use Lock Function On Craftsman Garage Door Opener

The Lock function on a Craftsman garage door opener is designed to disable remote access to your garage door. This means that when the Lock mode is activated, no one can open the garage door using a remote control. The function is especially useful when you’re on vacation, away from home for extended periods, or during nighttime hours for added security.

Let’s break down exactly how to use this feature and what you need to know.

Understanding the Lock Function on Craftsman Openers

Before diving into how to use the lock function, it helps to understand what it does and how it works:

🔒 What Is the Lock Function?

The Lock function disables remote signals to your garage door opener. When it’s engaged:

  • Remote controls won’t open the door
  • Wireless keypads will be disabled
  • The wall control panel still works for manual operation from inside the garage

This function is especially useful to prevent unauthorized entry using a lost or stolen remote or during security-sensitive times.

🔄 What It Does NOT Do

  • It does not physically lock the garage door (you’ll need a manual deadbolt or slide lock for that).
  • It doesn’t affect the MyQ app or other smart integrations (unless specified in your model).
  • It does not disable wall control access—you can still operate the door from inside the garage using the hardwired wall console.

When Should You Use the Lock Function?

Here are some ideal situations for activating the lock mode on your Craftsman opener:

  • Vacation or Travel: Keep your garage secure while you’re away.
  • Nighttime Security: Ensure no one can remotely open your garage while you sleep.
  • After Losing a Remote: Temporarily disable all remotes until the lost device is replaced.
  • Child Safety: Prevent children from accidentally opening the garage door via remote.

How To Activate the Lock Function on Craftsman Garage Door Opener

Most modern Craftsman models include a Smart Wall Control Panel that makes using the Lock function easy.

Step-by-Step Guide:

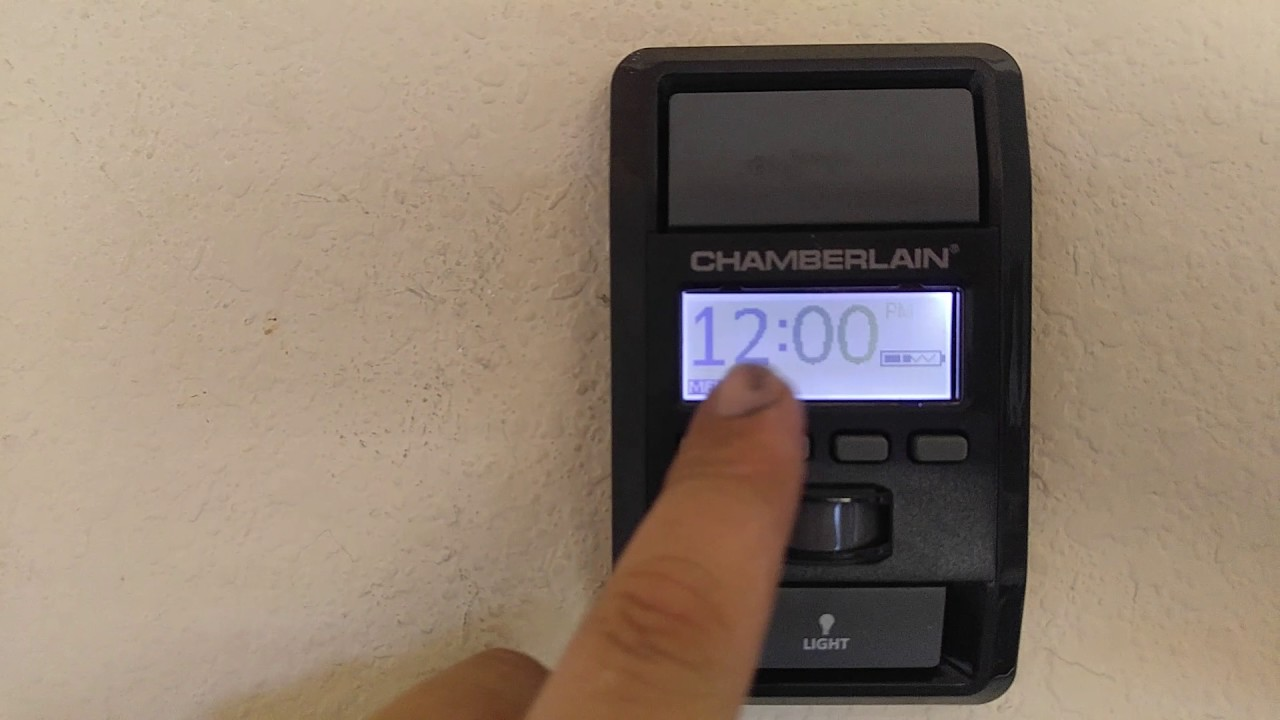

  1. Locate the Wall Control Panel
    Find the wall-mounted unit inside your garage (usually near the garage entrance door).
  2. Identify the “Lock” Button
    The panel should have a button labeled “Lock”, “Security+”, or show a lock symbol. Some models require holding down a separate button to enter lock mode.
  3. Press and Hold the Lock Button
    Press and hold the lock button for 2-3 seconds. The LED light next to the button will blink or remain solid (depending on the model), indicating the lock mode is active.
  4. Test It Out
    Try using your remote control. The door should not respond, confirming lock mode is enabled.
  5. To Deactivate the Lock Function
    Simply press and hold the lock button again until the light turns off. Your remotes and keypads will resume functionality.

Using the Lock Function with Smart Controls and MyQ

Some newer Craftsman models integrate with MyQ technology, allowing you to control many features, including the Lock function, directly from your smartphone.

Here’s how to use it through the MyQ App:

  1. Download and open the MyQ app
  2. Connect your Craftsman garage door opener
  3. Navigate to Settings > Device Features
  4. Tap “Lock Controls” (if available on your model)
  5. Toggle the lock on or off remotely

Note: Not all Craftsman models support locking remotely through MyQ—check your user manual for compatibility.

Why Use the Lock Function Instead of Disconnecting Power?

While some homeowners might simply unplug the opener for security, using the lock function is a more efficient and secure approach:

  • You retain access from inside via the wall panel.
  • You avoid resetting settings or clocks in the opener.
  • Locking is instant and reversible—perfect for quick trips or evening routines.

Common Misconceptions About Lock Mode

Let’s clarify a few common myths regarding this feature:

MisconceptionTruth
The Lock physically locks the door❌ No. It disables remote access only.
I can’t open the door at all in Lock mode❌ You can still use the wall control inside.
Lock mode affects Wi-Fi and MyQ functions✅ Partially. It depends on your model. Some allow remote locking via MyQ, others don’t.
Locking is permanent until factory reset❌ You can toggle it on/off any time using the panel.

Troubleshooting the Lock Function

If the Lock function isn’t working or your remotes are disabled unexpectedly, try these steps:

1. Check LED Indicators

Most wall panels will show a flashing or solid light when lock mode is active.

2. Try the Wall Button

If the wall control works but remotes don’t, the Lock function is likely on.

3. Check for Faulty Remotes

Sometimes dead batteries can mimic lock mode behavior. Replace the battery to rule this out.

4. Reset the Opener

If the wall control is unresponsive, try a soft reset by unplugging the opener for 10 seconds and plugging it back in.

Safety Tips When Using the Lock Function

While the Lock function boosts security, here are extra safety tips to keep in mind:

  • Manually lock your garage with a side bolt or deadbolt for added protection.
  • Always double-check the status before leaving for extended periods.
  • If you use MyQ, enable notifications for door activity.

Integrating Lock Mode into Daily Routine

Here’s how you can incorporate this feature into your everyday habits:

  • Nighttime Routine: Before bed, enable lock mode and turn off garage lights.
  • Vacation Checklist: Add “Enable Garage Lock Mode” to your departure routine.
  • Kids Home Alone: Lock remote access so children can’t operate the door from the outside.

Final Thoughts

Understanding how to use lock function on Craftsman garage door opener is a simple yet crucial part of maximizing your garage’s security. Whether you’re looking to prevent unauthorized access, secure your home during travel, or just sleep better at night, this feature is a powerful tool you should use regularly.

By using the wall-mounted control panel or integrated MyQ app, you can quickly enable or disable the Lock function as needed. Just remember—it doesn’t physically lock the door, so consider combining it with manual locks for complete peace of mind.

With this guide, you now have all the information you need to use the Lock function effectively and confidently.

How To Use Alexa With A Craftsman Garage Door Opener: A Complete Smart Home Integration Guide

by
How To Use Alexa With A Craftsman Garage Door Opener

As smart home technology becomes more mainstream, homeowners are seeking ways to control everyday household features through voice commands. One common question is: How to use Alexa with a Craftsman garage door opener?

How To Use Alexa With A Craftsman Garage Door Opener

If you’re a Craftsman garage door opener owner and want to integrate it with Amazon Alexa, this comprehensive guide walks you through everything—from compatibility and setup to troubleshooting and tips to maximize your experience.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

By the end of this article, you’ll know whether your Craftsman model works with Alexa, what you need to get started, how to link the systems securely, and how to make the most of voice-controlled garage access.

How To Use Alexa With A Craftsman Garage Door Opener

Connecting your Craftsman garage door opener to Alexa involves several steps and components, depending on your model. Not all Craftsman openers come with native smart features, but you can still achieve Alexa integration using MyQ or third-party smart controllers.

Let’s break down the process step-by-step.

Step 1: Check Craftsman Model Compatibility

First, identify your Craftsman garage door opener’s model number. You can usually find this:

  • On the motor unit (on the ceiling)
  • In the user manual
  • Inside the battery compartment of the wall control panel

You’re specifically looking to see if the opener supports MyQ technology. Most Craftsman Smart Garage Door Openers (model 57915 and newer) come with built-in MyQ compatibility.

If your model is not MyQ-compatible, don’t worry—you can still integrate it with Alexa using a smart garage hub like Chamberlain MyQ Smart Garage Hub or third-party systems such as Tailwind iQ3 or Garadget.

Step 2: Connect Your Craftsman Opener to MyQ (If Supported)

If your Craftsman opener supports MyQ:

  1. Download the MyQ App from the App Store (iOS) or Google Play (Android).
  2. Create or log in to your MyQ account.
  3. Plug in the MyQ Wi-Fi Hub (if your opener isn’t Wi-Fi enabled).
  4. Use the MyQ app to scan the device and connect it to your Wi-Fi network.
  5. Follow the in-app instructions to complete setup and test the garage door.

At this stage, you can now control your garage door through the MyQ app, including remote opening, closing, and monitoring activity.

Step 3: Enable MyQ Skill on Alexa

MyQ does not offer direct Alexa control for opening and closing your garage door due to security concerns, but it does allow you to monitor and check the status via Alexa.

Here’s how to connect Alexa to MyQ:

  1. Open the Alexa app on your phone.
  2. Tap on “More” > “Skills & Games”.
  3. Search for the “MyQ Skill”.
  4. Enable the skill and log into your MyQ account to authorize the link.
  5. Let Alexa discover new devices.

Once connected, you can ask Alexa:

  • “Alexa, ask MyQ if the garage door is open.”
  • “Alexa, ask MyQ to close the garage door” (requires subscription)

Note: To open or close your garage via Alexa, MyQ now requires a $1/month or $10/year subscription for premium voice services.

Step 4: Use Third-Party Devices (If MyQ Isn’t Enough)

If your Craftsman opener doesn’t support MyQ, or you want full Alexa voice control without subscriptions, consider these alternatives:

1. Tailwind iQ3 Smart Garage Controller

  • Compatible with many Craftsman openers
  • Works with Alexa and Google Assistant
  • Requires a vehicle sensor or smartphone detection
  • No subscription fees

2. Garadget

  • Wi-Fi-based laser sensor for door monitoring
  • Compatible with Alexa, SmartThings, and IFTTT
  • Simple voice commands enabled
  • No monthly fee

3. Nexx Garage

  • Voice control via Alexa, Google, or Siri
  • App-based scheduling and geofencing
  • Compatible with most Craftsman openers

These options provide broader functionality and don’t require MyQ subscriptions.

Benefits of Using Alexa With a Craftsman Garage Door Opener

Using Alexa with your garage door opener introduces a new level of convenience and security:

✅ Hands-Free Operation

No need to fumble for your phone or remote. Just say, “Alexa, is the garage door open?”

✅ Enhanced Security

Quickly check if you left the garage door open—even when you’re not home.

✅ Remote Monitoring

Get alerts and notifications when the door opens or closes, useful for parents or deliveries.

✅ Integration With Routines

Trigger actions like turning on garage lights or adjusting thermostats when your door opens.

Common Alexa Commands (With MyQ Subscription or Smart Controllers)

  • “Alexa, open the garage door.”
  • “Alexa, close the garage door.”
  • “Alexa, is the garage door open?”
  • “Alexa, ask MyQ to close all doors.”
  • “Alexa, tell MyQ to lock the garage.”

Troubleshooting Tips

If you’re having issues using Alexa with your Craftsman opener, try these tips:

1. Alexa Doesn’t Recognize My Garage Door

  • Double-check that your device is connected in the Alexa app.
  • Make sure your MyQ or third-party skill is enabled and linked properly.

2. Garage Door Won’t Respond to Commands

  • Confirm your garage opener is online and receiving Wi-Fi.
  • Restart your router and reconnect your hub if needed.
  • Check for firmware updates in your smart controller app.

3. Alexa Says “That Command Is Not Supported”

  • Some commands require a subscription with MyQ.
  • Switch to a third-party device for full functionality if necessary.

Security Considerations

Garage doors are a major access point to your home. When connecting smart technology:

  • Always use strong Wi-Fi passwords.
  • Enable two-factor authentication on your MyQ or Alexa accounts.
  • Monitor app logs to track who accesses the garage.

You may also want to disable voice access when you’re away or use PIN codes (available in some third-party apps) for added safety.

Real-Life Example: Alexa Routine for Garage Automation

Here’s how to create a morning routine using Alexa:

  1. Open Alexa App → Routines → Create New Routine
  2. Trigger: “Alexa, good morning”
  3. Actions:
    • Close garage door (via MyQ or Tailwind)
    • Turn on hallway light
    • Read news/weather

Now, with one voice command, your garage door checks, lights activate, and Alexa gives your daily update.

Final Thoughts

If you’ve been wondering how to use Alexa with a Craftsman garage door opener, the process is now more accessible than ever. Whether your model supports MyQ or you use a smart controller like Tailwind or Nexx Garage, voice integration can dramatically increase the convenience and security of your daily routine.

Smart home integration is all about seamless control—and thanks to Alexa and compatible garage systems, you can now monitor, open, or close your garage door using simple voice commands.

Make sure to check compatibility, explore third-party options if needed, and ensure your network is secure. Once set up, you’ll enjoy peace of mind, convenience, and the satisfaction of a fully connected smart home.

How To Turn Off Light On Craftsman Garage Door Opener: A Step-by-Step Guide to Save Energy and Customize Your System

by
How To Turn Off Light On Craftsman Garage Door Opener

Garage door openers today are more than just machines that open and close your garage door. Many models, including those from Craftsman, feature built-in lights that turn on automatically when the door is operated. These lights can help improve visibility and safety, but for some homeowners, they can become a nuisance—especially if they turn on unnecessarily, stay on too long, or simply aren’t needed.

How To Turn Off Light On Craftsman Garage Door Opener

If you’ve ever wondered how to turn off light on Craftsman garage door opener, you’re not alone. This guide covers every aspect of controlling, disabling, or adjusting your opener’s light settings—whether you’re looking to save electricity, reduce light pollution, or gain full control over your home automation system.

Why You Might Want to Turn Off the Light on Your Garage Door Opener

The built-in light on a Craftsman garage door opener is designed to automatically activate when the opener is in use or when motion is detected. However, you may want to disable or adjust it for several reasons:

  • Energy savings: Especially if your opener light uses incandescent or halogen bulbs.
  • Reducing unwanted illumination: Bright lights in attached garages can disturb bedrooms or disrupt sleep.
  • Home automation compatibility: You may want full control over lighting through a smart home system.
  • Personal preference: Some homeowners simply prefer a darker garage or don’t need the light at all.

Fortunately, Craftsman garage door openers offer settings and manual options that allow you to control the light behavior to meet your preferences.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

How To Turn Off Light On Craftsman Garage Door Opener: Complete Instructions

Let’s dive into the exact steps to disable or modify your Craftsman opener’s light functionality. Depending on your model, the process may vary slightly, but the core instructions apply to most Craftsman ½ HP, ¾ HP, and 1 HP openers, including older models and newer smart garage systems.

Step 1: Identify Your Craftsman Garage Door Opener Model

Before you begin, it’s helpful to locate the model number of your opener. This will determine whether you can program the light manually, need a remote, or require access to smart app settings.

Where to find it:

  • On the main housing of the opener (usually on a label near the light lens)
  • Inside the Craftsman user manual
  • On the remote control if it’s a smart-compatible model

If your opener was manufactured by Chamberlain (Craftsman’s parent company), the steps may resemble Chamberlain or LiftMaster procedures.

Step 2: Use the Wall Control Panel (If Available)

Most modern Craftsman garage openers include a multi-function wall console that allows you to adjust features like lighting time and auto-on behavior.

To turn off the automatic light feature:

  1. Locate the light button on the wall-mounted control panel.
  2. Press and hold the light button for 6–10 seconds until the LED flashes.
  3. Release the button when the light blinks or you hear a click. This disables the motion sensor or automatic lighting function.

In some models, you can toggle the light timer settings:

  • Press the light button multiple times to cycle through 1.5, 2.5, 3.5, or 4.5-minute durations.
  • Some newer models allow you to turn the timer off completely.

Pro Tip: On some models, you must press the “Light” button and “Lock” button simultaneously to enter programming mode.

Step 3: Disable the Motion Sensor (If Equipped)

Some Craftsman models have a motion-detection feature that automatically activates the light when someone walks into the garage.

To disable the motion sensor:

  • Go to the wall control panel and look for a “motion sensor disable” switch or option.
  • Slide it to “Off” or press and hold the corresponding button (based on model).
  • Alternatively, if you’re using the Smart Control Panel, go into settings and turn off “Motion Detect Light”.

Step 4: Use Your Remote to Control the Light

If your remote or keypad includes a dedicated light button, it allows you to toggle the light on/off manually without affecting the garage door operation.

  • Press the light button once to turn the light off.
  • Press again to turn it back on.

Some remotes also allow you to reprogram light controls:

  • Press the learn button on the garage opener motor (near the antenna).
  • Within 30 seconds, press the remote light button until the garage light flashes or you hear a click.

This links the remote’s light button to the unit so you can control the lighting independently.

Step 5: For Smart Models – Use the myQ App

If you have a newer Craftsman smart garage door opener compatible with Chamberlain myQ technology, follow these steps:

  1. Open the myQ app on your smartphone.
  2. Tap your garage door opener from the devices list.
  3. Select “Lighting” or “Device Settings.”
  4. Toggle off “Light Turns On With Door Movement” or set your preferred duration.

This is one of the easiest and most customizable ways to manage lighting on modern Craftsman openers.

Step 6: Physically Remove or Replace the Light Bulbs

If you’re dealing with an older opener that doesn’t support electronic disabling or programmable features, the most straightforward way to turn off the light permanently is to remove the bulb.

Steps:

  1. Unplug the opener from the power outlet for safety.
  2. Remove the light lens cover (usually snaps or unscrews).
  3. Carefully unscrew the bulb(s) and store or dispose of them.
  4. Reattach the cover and restore power.

Tip: Consider replacing incandescent bulbs with LED garage-rated bulbs to reduce power consumption if you’re concerned about energy usage, even if you leave them on.

Step 7: Reset to Default (If You Want to Re-Enable the Light)

At any time, you can reset your Craftsman opener to default settings:

  • Press and hold the Learn button on the opener motor for 6–10 seconds until the light flashes.
  • This will erase all remote and keypad programming, including any custom light behavior.
  • Re-pair your devices as needed and reset lighting preferences.

This is useful if something isn’t working correctly or you’ve inherited a garage system with unknown settings.

Troubleshooting Light Control Issues

Even when you follow the steps correctly, you might run into a few issues. Here’s how to troubleshoot:

IssueLikely CauseSolution
Light won’t turn offStuck relay, sensor malfunctionTry resetting the unit or disabling motion sensor
Wall panel not respondingPower loss or wiring faultCheck circuit breakers and connections
Light stays on constantlyTimer set to max or faulty control boardReset or call technician
Remote won’t control lightNot properly pairedReprogram using Learn button

If the problem persists, contact Craftsman support or a certified garage door technician.

Energy-Efficient Alternatives

If your goal is energy savings, here are some ways to reduce light consumption:

  • Switch to LED bulbs rated for garage door openers (vibration-resistant and low-wattage).
  • Install a motion sensor LED light bar separately and bypass the built-in light.
  • Use myQ smart scheduling to ensure lights only turn on when needed.

These methods help you customize lighting behavior while reducing electric bills and extending bulb life.

Final Thoughts

Now that you know exactly how to turn off light on Craftsman garage door opener, you can take control of your garage lighting for better comfort, efficiency, and convenience. Whether you’re disabling automatic features, programming light timers, or integrating with smart systems, Craftsman openers give you flexible options.

If you’ve been annoyed by a garage light that won’t shut off or one that turns on at the wrong times, this guide offers everything you need to tailor your system to your lifestyle.

How To Test A Craftsman 1 Hps Garage Door Opener: The Ultimate Guide for Homeowners and DIYers

by
How To Test A Craftsman 1 Hps Garage Door Opener

Garage door openers are essential components of modern homes, providing convenience, security, and safety. The Craftsman 1 HPS garage door opener is a popular model known for its power, reliability, and durability. But like all mechanical devices, it requires regular maintenance and occasional troubleshooting. If your opener isn’t functioning as expected or you’re conducting routine checks, understanding how to test a Craftsman 1 HPS garage door opener is critical.

How To Test A Craftsman 1 Hps Garage Door Opener

This comprehensive guide will walk you through everything you need to know to test your garage door opener, ensuring it operates smoothly and safely.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

Why Testing Your Craftsman 1 HPS Garage Door Opener Is Important

Before diving into the steps, it’s essential to understand why regular testing matters.

1. Safety

Garage doors are heavy and operate with significant force. A malfunctioning opener could pose serious risks to children, pets, and property.

2. Security

If your garage door doesn’t close properly or malfunctions, it can leave your home vulnerable to intruders.

3. Performance

Testing helps identify mechanical or electrical issues early, saving you from unexpected breakdowns and expensive repairs.

4. Longevity

Routine testing and maintenance can extend the life of your Craftsman 1 HPS garage door opener, making it a better investment over time.

Tools and Preparations

Before you start testing, you’ll need to gather a few basic tools:

  • A sturdy ladder
  • Safety gloves and protective eyewear
  • A screwdriver or socket wrench set
  • A notepad to log issues
  • A multimeter (for electrical testing)
  • Your garage door remote or wall panel

Also, make sure the garage is well-lit and the opener is powered.

How To Test A Craftsman 1 Hps Garage Door Opener in 10 Simple Steps

Let’s break down the complete process to safely and effectively test your opener.

Step 1: Visual Inspection

Begin with a visual check of the entire garage door system.

  • Examine the opener unit for signs of wear or damage.
  • Inspect the door’s tracks for obstructions or warping.

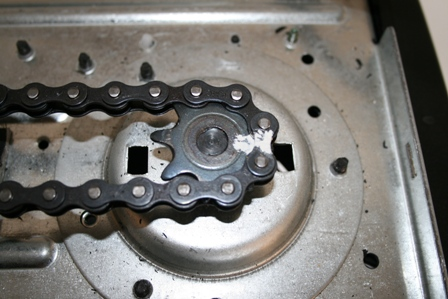

  • Check the drive system (belt or chain) for slack or fraying.
  • Make sure all screws, bolts, and brackets are tight.

This step is simple but crucial. Many problems can be identified without powering the unit.

Step 2: Test the Power Supply

A malfunctioning opener might be the result of a faulty power connection.

  • Plug a lamp or other device into the same outlet to verify power.
  • Check the circuit breaker or GFCI outlet reset.
  • Inspect the power cord for visible damage.

No power means the unit won’t respond, even if everything else is working fine.

Step 3: Operate Using Remote and Wall Panel

Use the remote and wall-mounted panel to open and close the door.

  • Does the opener respond immediately?
  • Are there delays, false starts, or incomplete cycles?
  • Does it make unusual noises?

This initial response test can uncover both mechanical and electrical issues.

Step 4: Test the Safety Sensors

Craftsman 1 HPS garage door openers are equipped with safety sensors mounted near the floor.

  • Make sure sensors are clean, aligned, and not obstructed.
  • Close the door using the remote, then pass an object (like a broom) between the sensors.
  • The door should immediately reverse.

If the door doesn’t reverse, the sensors may be misaligned or malfunctioning, a serious safety hazard.

Step 5: Manually Test Door Balance

Disconnect the opener using the red emergency release cord.

  • Lift the garage door manually halfway and release.
  • A properly balanced door will stay in place.
  • If it falls or rises, the springs may need adjustment.

An unbalanced door puts extra strain on the opener and should be addressed by a professional.

Step 6: Test Force Settings

Force settings determine how much power the opener uses to open or close the door.

  • Push against the door as it’s closing.
  • It should reverse with light resistance.
  • If it doesn’t, adjust the force settings via the dials on the opener unit.

Force that’s too high can be dangerous; too low and the door may not close properly.

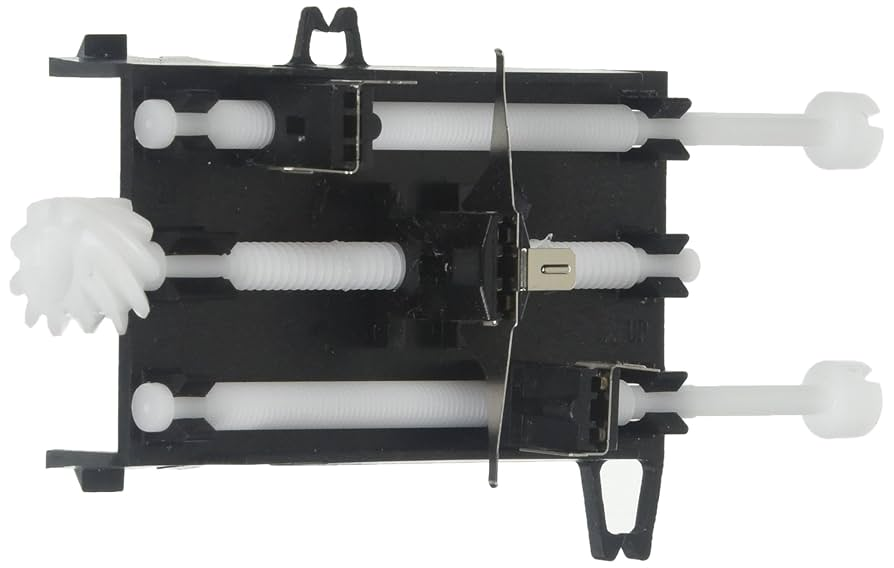

Step 7: Test Travel Limits

Travel limits control how far the door moves when opening or closing.

  • If the door stops short or overshoots, it needs adjusting.
  • Use a flathead screwdriver to tweak the up and down limit screws on the opener.
  • Re-test the door after each adjustment.

Accurate travel limits ensure the door seals completely and opens fully.

Step 8: Check the Battery in the Remote

If the remote doesn’t work but the wall panel does, the battery may be dead.

  • Replace the remote’s battery with a fresh one.
  • Re-pair the remote if necessary using the “Learn” button on the opener unit.

A weak signal is often the root of remote-related issues.

Step 9: Electrical Testing (Optional)

Use a multimeter to check electrical continuity, especially if the opener doesn’t respond at all.

  • Disconnect the unit from power first.
  • Test the motor, sensors, and control board connections.
  • Look for burnt wires or inconsistent voltage readings.

If you’re not comfortable with electrical testing, consult a professional technician.

Step 10: Perform a Full System Cycle

Once all adjustments are made:

  • Reconnect the opener.
  • Open and close the door several times using both the remote and wall control.
  • Observe for smooth operation, consistent speed, and correct stop/start behavior.

Log any abnormalities in your notepad for future reference or technician visits.

Common Problems When Testing a Craftsman 1 HPS Garage Door Opener

Here are issues frequently found during testing:

ProblemLikely Cause
Door reverses immediatelyMisaligned safety sensors
Door won’t openRemote issue, power loss, motor fault
Opener hums but doesn’t moveBroken gear or trolley
Door stops mid-cycleTravel limit or sensor error

Understanding these can help you troubleshoot faster and more effectively.

When to Call a Professional

Some problems are too complex or dangerous to tackle alone, such as:

  • Broken torsion or extension springs
  • Faulty circuit boards
  • Wiring short circuits
  • Motor or gearbox failure

If your garage door jerks, slams, or gets stuck frequently—even after adjustments—consult a licensed garage technician.

Tips for Ongoing Maintenance

After testing your Craftsman 1 HPS opener, follow these tips for regular care:

  • Test the system every 3–6 months.
  • Clean safety sensors monthly.
  • Lubricate rollers, hinges, and tracks with silicone-based grease.
  • Replace opener remote batteries annually.
  • Schedule a professional inspection every 2–3 years.

Staying proactive reduces long-term costs and improves home safety.

Final Thoughts: Testing Keeps Your Opener Reliable and Safe

Knowing how to test a Craftsman 1 HPS garage door opener is essential for every homeowner. Whether you’re troubleshooting a problem or doing routine maintenance, regular testing ensures your system remains reliable, efficient, and safe.

A few simple tools, an hour of your time, and this detailed guide are all you need to take control of your garage door’s performance. Always remember, when in doubt, consult a certified garage door technician to keep your system running like new.

How To Train A Craftsman Garage Door Opener Hyundai Homelink: The Complete Guide for Smooth Integration

by
How To Train A Craftsman Garage Door Opener Hyundai Homelink

Integrating your Hyundai’s Homelink system with a Craftsman garage door opener can bring a new level of convenience to your daily routine. No more fumbling for remotes—your car becomes the remote. But many people find the syncing process confusing. That’s why we’ve created this comprehensive guide on how to train a Craftsman garage door opener Hyundai Homelink, covering everything from preparation to troubleshooting.

How To Train A Craftsman Garage Door Opener Hyundai Homelink

Whether you’re driving a new Hyundai or just discovered the Homelink system in your vehicle, this article will walk you through every step to ensure a seamless connection between your Craftsman garage door opener and your car.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

What Is Hyundai Homelink and Why Should You Use It?

Hyundai Homelink is a built-in wireless control system that allows you to operate compatible garage door openers, gates, lighting systems, and more, directly from buttons embedded in your car’s interior (often on the rearview mirror or sun visor).

Benefits of using Homelink include:

  • No need to carry or replace handheld remotes
  • Faster and safer garage access
  • A cleaner, tech-integrated driving experience
  • Added resale value for your car

If you own a Craftsman garage door opener, the Homelink system can be synced to it in just a few minutes—once you understand the correct process.

Preparing for Programming: What You’ll Need

Before jumping into how to train a Craftsman garage door opener Hyundai Homelink, make sure you have the following ready:

  • Your Craftsman garage door opener remote
  • Your Hyundai vehicle parked near the garage
  • A ladder (to access the garage door opener’s “learn” button)
  • The owner’s manual for both your Hyundai and Craftsman opener (optional but helpful)

Make sure your Craftsman garage door opener is powered and functional. If it’s an older model, confirm it’s compatible with rolling code systems, as many Homelink systems rely on that.

Step-by-Step Guide: How To Train A Craftsman Garage Door Opener Hyundai Homelink

Step 1: Clear Existing Homelink Settings (If Needed)

If you’ve recently purchased the car or used the Homelink system before, clear previous settings:

  1. Turn your vehicle’s ignition to the “ON” position (do not start the engine).
  2. Press and hold the two outer Homelink buttons for approximately 20 seconds.
  3. Release the buttons once the indicator light flashes rapidly.

Note: This erases any existing programming. Only perform this if you want to start fresh.

Step 2: Program Homelink with Craftsman Remote

  1. Hold the Craftsman garage door remote 1–3 inches away from the Homelink buttons in your Hyundai.
  2. Simultaneously press and hold:
    • The button on your remote AND
    • The Homelink button you wish to program.
  3. Hold both until the Homelink light changes from slow blinking to rapidly blinking. This may take up to 30 seconds.

This step transfers the signal from your Craftsman remote to your vehicle.

Step 3: Train the Garage Opener with Homelink

Most modern Craftsman openers use rolling codes, which means they require a final step:

  1. On your Craftsman garage opener motor (mounted to the ceiling), locate the “Learn” or “Smart” button. It’s usually behind the light cover.
  2. Press and release the Learn button. A light should start blinking, indicating the unit is ready to pair.
  3. Return to your Hyundai within 30 seconds and press the Homelink button you just programmed for 2 seconds, then release.
  4. Repeat the press/hold step up to 3 times until the garage door moves.

Congratulations! You’ve now completed the process of training a Craftsman garage door opener with Hyundai Homelink.

Common Mistakes When Programming Homelink

Even though the process is straightforward, there are common pitfalls:

  • Not pressing the buttons long enough during initial programming
  • Holding the Homelink button continuously after the Learn button is pressed (you should release and re-press instead)
  • Waiting too long after pressing the Learn button on the garage opener
  • Old battery in the Craftsman remote, leading to weak signal transfer
  • Obstructions between the vehicle and opener during programming

Taking your time and following the steps in order can eliminate most issues.

Troubleshooting Tips for Homelink and Craftsman Compatibility

If you’ve followed all the steps and your Hyundai still won’t open the garage, try these tips:

  • Check the age of your Craftsman opener. Units made before 1996 may not be compatible with Homelink.
  • Update the Homelink system. Some models require a compatibility bridge (Homelink Repeater Kit) if your Craftsman uses newer security protocols.
  • Replace the remote battery. A weak signal during training can lead to a failed pairing.
  • Reboot the system. Clear Homelink memory and start from scratch if things aren’t syncing.

Troubleshooting Guide: How To Train A Craftsman Garage Door Opener Hyundai Homelink When It Doesn’t Work

Sometimes, despite doing everything right, you may find that your Hyundai Homelink won’t pair with your Craftsman garage door opener. This section dives into deeper-level fixes.

1. Use the Homelink Compatibility Tool

Visit the official Homelink compatibility tool and enter your car’s make, model, and year, along with your Craftsman opener model. This will tell you:

  • Whether the devices are directly compatible
  • If a repeater kit is needed
  • Specific instructions for your vehicle-garage opener combo

2. Install a Homelink Repeater Kit

For newer Craftsman openers with Security+ 2.0 or other advanced rolling codes, your Homelink may need help receiving the signal.

  • Purchase a Homelink Repeater Kit (available through LiftMaster or Chamberlain)
  • Plug the transmitter into a nearby wall socket
  • Train Homelink with the repeater rather than the original remote

This bridge tool makes incompatible systems work smoothly.

3. Check for Interference

  • Keep your Hyundai within 20 feet of the garage door opener
  • Turn off LED lights or other electronics that may disrupt wireless signals during setup

Safety Considerations

Programming Homelink is generally safe, but always keep these in mind:

  • Never stand under the garage door during testing
  • Use a stable ladder if accessing the motor unit
  • Make sure children and pets are at a safe distance

Maintenance Tips After Successful Pairing

After you’ve successfully synced your Hyundai with your Craftsman opener, here’s how to keep everything running smoothly:

  • Test the system monthly to ensure reliable operation
  • Replace the remote battery yearly, even if not regularly used
  • Lubricate garage door parts as per Craftsman’s maintenance guide
  • Clear Homelink buttons when selling your car

Keeping your equipment in top shape ensures ongoing security and convenience.

Conclusion: Streamline Your Routine with Hyundai and Craftsman

Now that you understand how to train a Craftsman garage door opener Hyundai Homelink, you’re set to enjoy the benefits of a smarter, more efficient garage system. Integrating Homelink into your Hyundai makes life easier and offers a safer, cleaner alternative to traditional garage remotes.

With the correct steps, a little patience, and proper safety precautions, pairing these two systems is simple and rewarding. If you run into any hiccups, use the troubleshooting section or reach out to Homelink or Craftsman customer support for further guidance.

How To Set Limits On A Craftsman Garage Door Opener: Step-by-Step Guide to Safe and Smooth Operation

by
How To Set Limits On A Craftsman Garage Door Opener

Garage doors are a crucial part of home security and convenience. However, many homeowners face the issue of their garage doors not closing or opening completely. If you’ve installed or recently reprogrammed your Craftsman garage door opener, learning how to set limits on a Craftsman garage door opener is essential to ensure smooth operation, avoid potential damage, and maintain safety.

How To Set Limits On A Craftsman Garage Door Opener

This comprehensive guide will walk you through the process of setting and adjusting limits on your Craftsman opener, explain why it matters, what tools you may need, and answer frequently asked questions from homeowners dealing with this common garage issue.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

How To Set Limits On A Craftsman Garage Door Opener

Setting the travel limits tells the opener when to stop when the garage door is fully open or closed. Without correct limit settings, the door may:

  • Reverse before reaching the floor
  • Remain slightly open
  • Fail to open fully

The Craftsman garage door opener, especially those with chain drive and belt drive models, includes mechanical or electronic limit settings depending on the model’s age and design. Here’s how to correctly set them.

🔧 Step 1: Understand Your Craftsman Model Type

Before proceeding, determine whether your model uses manual adjustment screws (usually older models) or smart limit programming buttons (for newer MyQ-enabled Craftsman openers). You can usually find this information in the user manual or by checking the motor housing unit.

  • Manual Limit Models: Use two screws labeled UP and DOWN.
  • Electronic Limit Models: Use smart button controls often labeled “SET,” “UP,” and “DOWN.”

🔌 Step 2: Safety First

Before adjusting any limits, follow these safety precautions:

  • Unplug the opener or disconnect the power to prevent accidental activation.
  • Make sure the garage door is closed before starting.
  • Keep children and pets away from the work area.

⚙️ Step 3: Access the Limit Adjustment Panel

Locate the limit switch mechanism. On most Craftsman models, this is found:

  • Beneath the light cover on the opener housing
  • Near the rear of the motor head
  • Or alongside the unit with clearly labeled dials or buttons

Use a step ladder to access it safely if mounted high.

🔩 Step 4: Adjust the Close Limit

If your garage door doesn’t close completely or reverses before hitting the ground:

  • Manual Model: Turn the DOWN screw clockwise to increase the travel distance. One full turn equals about 2 inches.
  • Electronic Model: Press and hold the SET button until the LED blinks. Press and hold the DOWN arrow until the door reaches the desired closed position. Then press SET again to save.

Test the door by activating it from the wall panel or remote. If it doesn’t close properly, fine-tune with slight additional turns or button presses.

🔼 Step 5: Adjust the Open Limit

If the garage door opens too far or doesn’t open fully:

  • Manual Model: Turn the UP screw clockwise to increase the up travel.
  • Electronic Model: Press and hold the SET button. Then hold the UP arrow until the door opens fully. Press SET to confirm.

Again, activate the door to test the function.

🛠 Step 6: Final Testing and Safety Sensor Check

Once both limits are set:

  1. Plug the opener back in.
  2. Activate the door to go through a full cycle (open and close).
  3. Watch for any unusual sounds or abrupt stops.
  4. Ensure the safety reversal system is functioning—wave an object in the door’s path while closing. The door should automatically reverse.

🧠 Why Proper Limit Settings Matter

Here’s why knowing how to set limits on a Craftsman garage door opener is more than just convenience:

  • 🛡 Safety: Prevents the door from crushing objects or reversing unexpectedly.
  • 🔧 Longevity: Avoids overworking the motor and mechanical components.
  • 🧱 Security: Ensures the door fully closes, protecting your home from intruders.
  • 🔇 Noise Reduction: A properly set opener runs more quietly with less vibration.

🕵️‍♂️ Troubleshooting Common Issues When Setting Limits

Even after following the steps, you may encounter a few hiccups. Here are solutions to common problems:

❌ Door Closes Then Immediately Opens

Cause: The down limit is set too far and triggers the safety reversal system.

Fix: Turn the down limit screw counterclockwise slightly or adjust the electronic limit.

🚪 Door Doesn’t Close Completely

Cause: The down limit is too short, or the safety sensors are misaligned.

Fix: Realign sensors at the bottom of the tracks and slightly increase the down limit.

🔄 Door Won’t Open All the Way

Cause: The up limit is too low.

Fix: Turn the up limit screw clockwise or press the up button to increase travel.

🧰 Tools You May Need

For manual limit adjustment models:

  • Flathead screwdriver
  • Step ladder
  • Work gloves
  • Flashlight
  • Craftsman opener manual (optional but helpful)

For newer smart models:

  • Nothing more than the wall control panel or remote

🧪 How to Know If You Need to Reset Your Limits

You may need to adjust or reset your limit settings if:

  • You’ve replaced your garage door
  • The motor was reinstalled or repaired
  • The door is slamming down or stopping mid-way
  • A power outage or surge reset the opener’s memory

In such cases, reprogramming the limits using the above steps is a must.

📦 Craftsman Openers with Smart Limit Memory

Some newer Craftsman MyQ models automatically detect limit positions after initial setup. However, you may still need to fine-tune these if the door misbehaves or gets stuck mid-travel.

These models usually include:

  • LED indicators for diagnostics
  • Auto force adjustment
  • Motion sensors and WiFi connectivity

Refer to your Craftsman smart opener’s manual for model-specific instructions.

💡 Pro Tips for Garage Door Limit Settings

  • Mark original positions of the screws before adjusting for reference.
  • Make small adjustments and test after each.
  • Lubricate moving parts to ensure accurate performance post-adjustment.
  • Reset opener to factory settings if you’re unsure about previous adjustments.

🤔 FAQs: How To Set Limits On A Craftsman Garage Door Opener

Q: How long does it take to set limits?

A: Typically 10–15 minutes for experienced users, a bit longer for first-timers.

Q: Do I need to reset the remote after adjusting limits?

A: No. Limit settings and remote programming are separate processes.

Q: Why does my Craftsman garage door reverse after hitting the ground?

A: The down limit is set too far. The opener thinks it’s hit an obstruction and reverses.

Q: Can I use my smartphone to adjust limits?

A: Only with MyQ-enabled smart openers. Use the MyQ app or follow on-screen prompts.

🔚 Final Thoughts

Learning how to set limits on a Craftsman garage door opener ensures optimal functionality, safety, and convenience. Whether you’re using an older manual model or a newer smart system, proper adjustment can prevent issues like improper closures, door reversals, and mechanical strain.

By following the steps outlined in this guide, you can confidently troubleshoot and fine-tune your garage door opener for reliable performance every day. Don’t hesitate to consult your model’s user manual for diagrams or contact a professional if something doesn’t feel right.

How To Set Force Limits On Craftsman Garage Door Opener: Step-by-Step Guide to Safe and Smooth Operation

by
How To Set Force Limits On Craftsman Garage Door Opener

Craftsman garage door openers are known for their durability, performance, and user-friendly features. However, to ensure your door operates safely and efficiently, it’s crucial to understand how to set force limits on Craftsman garage door opener. Setting the correct force limits helps prevent property damage, ensures user safety, and maintains the integrity of your opener system over time.

How To Set Force Limits On Craftsman Garage Door Opener

If you’re experiencing issues where your garage door doesn’t open or close completely, reverses suddenly, or struggles when moving, force settings could be the culprit. This comprehensive guide will walk you through why force limits matter, how to set them properly, and troubleshooting tips to keep your Craftsman garage door opener in peak condition.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Why Setting Force Limits on a Garage Door Opener Matters

Before we explain how to set force limits on Craftsman garage door opener, it’s important to understand what “force limits” actually are.

🔧 What Are Force Limits?

Force limits determine how much power your garage door opener uses to open and close the door. If the door encounters resistance, like an object in its path or a jammed track, the opener will either stop or reverse depending on the set force limits. This feature is a critical part of the opener’s safety system.

⚠️ Why It’s Important:

  • Safety: Prevents the door from crushing people, pets, or objects underneath.
  • Efficiency: Reduces wear and tear on the opener motor.
  • Compliance: Meets UL safety standards required for modern garage door systems.
  • Damage Prevention: Avoids stress on tracks, rollers, and panels.

Signs That You Need to Adjust the Force Limits

Before diving into how to set force limits on Craftsman garage door opener, here are some indicators that your current settings may be off:

  • The garage door reverses before closing fully.
  • The door stops mid-operation without any visible obstruction.
  • You need to hold the wall button to fully close the door.
  • The opener struggles or makes a grinding noise during operation.
  • There’s an error code or blinking LED on the opener unit.

Tools and Preparation for Setting Force Limits

🧰 What You’ll Need:

  • A stepladder
  • Flathead screwdriver (for manual adjusters)
  • Flashlight (if in a dim garage)
  • Your garage door remote or wall-mounted opener button
  • The owner’s manual for your specific Craftsman model

⚠️ Safety Tips:

  • Disconnect power before making any mechanical changes.
  • Keep children and pets away from the work area.
  • Make small adjustments — never force the settings.

How To Set Force Limits On Craftsman Garage Door Opener

Depending on your Craftsman opener model, you’ll either have manual adjustment dials or electronic control buttons. We’ll cover both methods.

Method 1: Manual Force Adjustment (Older Craftsman Models)

  1. Unplug the Opener
    For safety, disconnect the power before working on the unit.
  2. Locate Force Adjustment Screws
    On older Craftsman models, two dials are labeled “Up Force” and “Down Force” on the rear or side panel of the motor housing.
  3. Use a Screwdriver to Adjust
    • Turn clockwise to increase the force.
    • Turn counterclockwise to decrease the force.
    Typically, a quarter-turn at a time is sufficient.
  4. Test the Door
    Plug the unit back in and press the wall button or remote. Observe how the door behaves:
    • If the door reverses before closing, slightly increase the down force.
    • If it struggles to open, slightly increase the up force.
  5. Repeat Until Properly Calibrated
    The door should open and close smoothly without stopping, reversing, or hesitating.

Method 2: Electronic Force Adjustment (Newer Craftsman Smart Models)

  1. Access the Digital Control Panel
    Open the light cover on the motor unit. You’ll see buttons labeled “Up,” “Down,” and “Force.”
  2. Activate Force Setting Mode
    Press and hold the “Force” button until the LED indicator flashes. This puts the unit into adjustment mode.
  3. Adjust Up Force
    • Press the “Up” arrow to increase force.
    • Press the “Down” arrow to decrease force.
  4. Adjust Down Force
    After setting the Up Force, press the “Force” button again to move to the Down Force setting, then adjust using the same up/down arrows.
  5. Exit and Test
    Press the “Force” button again to exit setup mode. Test the door several times and observe for proper function.

Troubleshooting Force Settings on a Craftsman Garage Door Opener

🚫 Door Reverses Immediately

Cause: Down force too low
Fix: Increase the down force slightly

🚫 Door Doesn’t Open All the Way

Cause: Up force too low
Fix: Increase up force in small increments

⚠️ Door Slams Shut

Cause: Down force too high
Fix: Decrease down force immediately — too much force is a safety hazard.

⚠️ Garage Door Opener Light Flashes

Cause: Safety sensor issue or incorrect force settings
Fix: Realign sensors and recheck force settings

How Force Settings Work with Safety Sensors

Even if your force limits are set correctly, malfunctioning safety sensors can override the settings. Craftsman openers are designed to prioritize safety, meaning:

  • Misaligned sensors = door won’t close
  • Dirty sensor lenses = door reverses mid-close
  • Wiring issue = flashing LED or non-responsive door

Always check sensors after adjusting force limits to ensure full system functionality.

Maintenance Tips After Setting Force Limits

Once you’ve learned how to set force limits on Craftsman garage door opener, here are some maintenance tips to keep it running smoothly:

✅ Monthly Force Recheck

Especially in cold climates where components contract or expand.

✅ Lubricate Rollers and Tracks

Reduces the amount of force needed to move the door.

✅ Check Door Balance

Disconnect the opener and manually lift the door. If it’s too heavy, the springs may need adjustment — not the force setting.

✅ Replace Remote Batteries

Weak signals can mimic force problems.

FAQs: How To Set Force Limits On Craftsman Garage Door Opener

Q: How do I know if I set the force limits correctly?

A: The door should open and close smoothly without reversing, stopping, or slamming. No warning lights should flash.

Q: Can high force settings damage my opener?

A: Yes. Setting the force too high can wear out the motor or strip the gears over time. It’s also a safety hazard.

Q: How often should I reset the force limits?

A: Check every 6 months or after any door repair, track replacement, or significant weather change.

Q: Do I need a technician to set force limits?

A: Not usually. With the proper guide and safety precautions, most homeowners can do it themselves.

Final Thoughts

Understanding how to set force limits on Craftsman garage door opener is key to keeping your system safe, efficient, and durable. Whether you’re adjusting a legacy screw-drive model or a new smart opener, these settings ensure your garage door responds appropriately to obstacles and performs reliably day after day.

Regular testing and maintenance not only improve performance but also extend the lifespan of your entire garage door system. So, grab a screwdriver or use your digital interface and fine-tune those force settings — your garage door will thank you!

How To Set Down Travel On Craftsman Garage Door Opener: A Complete Step-by-Step Guide for Smooth Operation

by
How To Set Down Travel On Craftsman Garage Door Opener

If your garage door doesn’t close all the way or hits the ground too hard when closing, you may need to adjust the down travel. This is a common maintenance task that homeowners often overlook but can significantly impact the performance and lifespan of the garage door system. In this detailed guide, you’ll learn how to set down travel on Craftsman garage door opener, why it matters, and how to troubleshoot issues related to door travel settings.

How To Set Down Travel On Craftsman Garage Door Opener

Whether you’re installing a new opener, replacing parts, or simply maintaining your system, adjusting the down travel ensures your garage door closes fully and safely—without damaging the floor or opener motor.

Why Is Down Travel Important on a Garage Door Opener?

Before diving into the steps on how to set down travel on Craftsman garage door opener, it’s helpful to understand what “down travel” means and why it’s essential.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Down travel refers to how far the garage door travels when closing. If it stops too high, the door won’t seal properly, letting in cold air, pests, or even intruders. If it closes too far, the door may slam into the ground, damaging the door or opener.

Proper down travel adjustment:

  • Prevents door bounce or slamming
  • Ensures safety sensor alignment
  • Helps the opener motor last longer
  • Improves energy efficiency by ensuring a proper seal

Craftsman garage door openers allow you to control this setting with either manual adjustment screws or digital buttons, depending on the model.

Tools and Safety Precautions Before Adjusting Down Travel

Before learning how to set down travel on Craftsman garage door opener, here are some safety precautions and tools you might need:

✅ Tools You May Need:

  • Stepladder
  • Flathead screwdriver (for manual adjusters)
  • Flashlight
  • Safety gloves

⚠️ Safety Tips:

  • Always disconnect power before making adjustments.
  • Do not place hands or fingers near moving parts.
  • If unsure, consult the owner’s manual or a garage door professional.

How To Set Down Travel On Craftsman Garage Door Opener

Let’s walk through the steps for adjusting the down travel on a Craftsman opener. Craftsman models typically fall into two categories: manual screw-adjusted models and digital control models. Here’s how to handle both.

🔧 For Manual Adjustment Models:

  1. Unplug the Opener: Safety first—disconnect the power from the outlet to avoid electric shock or accidental activation.
  2. Locate the Down Travel Adjustment Screw: On most Craftsman openers, you’ll find two white or colored screws located on the side or back of the motor unit. One is for “Up” (open travel), and the other for “Down” (close travel).
  3. Use a Flathead Screwdriver: Turn the “Down” screw clockwise to increase the down travel or counterclockwise to decrease it. Typically, one full turn changes the travel by about 2 inches.
  4. Reconnect Power and Test: Plug the opener back in and press the wall button or remote to test the door.
  5. Fine-Tune if Necessary: If the door doesn’t close completely or slams, adjust incrementally until you reach the ideal stopping point.

⚙️ For Digital Models (Smart Craftsman Openers):

  1. Access the Adjustment Panel: Open the cover on the motor housing. You’ll see “Up” and “Down” arrow buttons or digital indicators.
  2. Press and Hold the Down Button: Hold the down arrow until the door begins to move.
  3. Release When the Door Reaches the Floor: Stop the door just before it touches the ground to avoid slamming.
  4. Test and Confirm: Use the remote to open and close the door. If the door stops too short or continues too far, repeat the process and adjust as needed.

Signs You Need to Adjust Down Travel

Now that you know how to set down travel on Craftsman garage door opener, how do you know it’s time to make adjustments? Watch for these signs:

  • The door doesn’t close fully
  • The door bounces or reverses when hitting the ground
  • You see gaps between the door and ground
  • The door reverses suddenly before reaching the ground
  • There are error codes flashing on the opener (for newer models)

Common Issues When Setting Down Travel & How to Fix Them

🔁 Problem: Door Reverses After Closing

Cause: This usually indicates that the down travel is set too far, and the opener thinks it hit an obstacle.
Fix: Decrease the down travel by turning the adjustment screw counterclockwise or reducing digital settings.

🟩 Problem: Door Doesn’t Close All the Way

Cause: The down travel is too short, causing the opener to stop prematurely.
Fix: Increase the down travel by turning the adjustment screw clockwise or increasing the digital setting.

🔒 Problem: Safety Sensors Prevent Closing

Cause: Sensors may be misaligned, dirty, or blocked. This is often mistaken for a down travel issue.
Fix: Clean the lenses and realign the sensors until the LED lights are solid.

How Down Travel Affects Garage Door Safety and Efficiency

Incorrect down travel settings can cause more than just functional issues. Here’s how it affects the entire system:

🛡️ Safety:

Improper settings can cause the door to crash down or leave openings. This could injure pets or children or make your home less secure.

💡 Energy Efficiency:

Doors that don’t fully close allow outdoor air to seep in, leading to increased heating or cooling costs.

⚙️ Opener Longevity:

Each incorrect cycle strains the motor. Over time, this leads to mechanical failure or the need for premature replacement.

Pro Tips for Maintaining Craftsman Garage Door Openers

After you’ve learned how to set down travel on Craftsman garage door opener, here are some tips to ensure long-term smooth operation:

✅ Regular Testing

Test the door’s open/close cycles every 3–6 months to make sure travel settings haven’t shifted due to vibrations or temperature changes.

✅ Lubricate Moving Parts

Apply garage door lubricant to tracks, rollers, and hinges. A smooth track ensures precise travel limits.

✅ Inspect Safety Sensors

Even if your down travel is perfectly set, malfunctioning sensors can cause issues. Keep them aligned and clean.

✅ Battery Backups

Power outages can interfere with travel memory in smart openers. Use battery backup systems to prevent reprogramming.

FAQs: How To Set Down Travel On Craftsman Garage Door Opener

Q: How often should I check the down travel settings?

A: At least twice a year or after any power outage or mechanical service.

Q: Can I use the same steps for other brands?

A: While similar, always refer to your specific model’s manual. Craftsman procedures differ slightly from brands like Chamberlain or LiftMaster.

Q: What happens if I don’t adjust it correctly?

A: Improper adjustment can damage your garage floor, door panels, or the opener’s internal gears.

Final Thoughts

Learning how to set down travel on Craftsman garage door opener is a straightforward yet essential part of garage door maintenance. Proper adjustment ensures smooth door operation, safety, energy efficiency, and extends the lifespan of your garage door opener system.

Whether you have a traditional screw-drive opener or a modern smart system, regular adjustments and maintenance will keep your garage operating reliably for years. Don’t wait for a problem to occur—check your down travel today and enjoy peace of mind knowing your garage door is working exactly as it should.

How To Reset Your Craftsman Half Horsepower Garage Door Opener: Step-by-Step Troubleshooting Guide for Homeowners

by
How To Reset Your Craftsman Half Horsepower Garage Door Opener

Garage doors are essential components of home security and convenience. Among the popular brands, Craftsman stands out for its durability and reliability—especially the Craftsman half horsepower garage door opener model, which is a common fixture in many American homes. But what happens when the system malfunctions or stops responding? In such situations, knowing how to reset your Craftsman half horsepower garage door opener can save you time, money, and frustration.

How To Reset Your Craftsman Half Horsepower Garage Door Opener

In this comprehensive guide, we’ll walk you through the entire process of resetting your Craftsman garage door opener, explain when and why you should reset it, and share useful tips to maintain its peak performance.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Why Would You Need to Reset a Craftsman Garage Door Opener?

Before learning how to reset your Craftsman half horsepower garage door opener, it’s important to understand why a reset might be necessary. Common reasons include:

  • Lost or stolen remotes
  • Keypad malfunction or reprogramming
  • Mismatched signals between opener and remotes
  • A power outage or surge that disrupted memory
  • Moving into a new home with a pre-installed unit

Resetting your Craftsman opener allows you to erase all stored codes, remotes, and keypads, effectively giving you a clean slate.

Understanding Craftsman’s Half Horsepower Models

The half horsepower (½ HP) Craftsman garage door openers are designed for standard single and double garage doors. They offer a balanced combination of lifting power and quiet operation, making them a favorite for residential use.

These openers typically come with:

  • A ceiling-mounted motor unit
  • Wireless keypads
  • Wall-mounted control panels
  • Remote clickers
  • A safety sensor system

Knowing the parts of your opener makes the reset process easier.

How To Reset Your Craftsman Half Horsepower Garage Door Opener

Now, let’s get into the core of this guide: how to reset your Craftsman half horsepower garage door opener. This method works for most Craftsman ½ HP models manufactured in the last two decades.

🔧 Step 1: Disconnect the Power

Before you begin working on the motor unit:

  • Unplug the opener from the power outlet to avoid any electrical hazards.
  • Wait at least 30 seconds before reconnecting power. This simple action may resolve minor glitches.

🔧 Step 2: Locate the “Learn” Button

Most Craftsman models include a “Learn” button on the back or side of the motor unit. It’s typically located behind the light cover or near the antenna wire. The button may be yellow, red, orange, green, or purple depending on your model.

  • Use a ladder if needed and ensure proper lighting.
  • The “Learn” button is often accompanied by an LED indicator light.

🔧 Step 3: Press and Hold the “Learn” Button

To reset the system:

  • Press and hold the Learn button for 6–10 seconds.
  • The LED light will turn off or blink, indicating that all remote control and keypad programming has been erased.

This step removes all paired devices from memory, including any potentially compromised remotes.

🔧 Step 4: Reprogram the Remotes and Keypad

After the reset, you’ll need to reprogram each remote and keypad individually.

To program a remote:

  1. Press the Learn button once (don’t hold it).
  2. Within 30 seconds, press and hold the button on your remote.
  3. The LED will blink or the garage light will flash to confirm successful pairing.

To program a wireless keypad:

  1. Press the Learn button.
  2. Within 30 seconds, enter your desired 4-digit code on the keypad.
  3. Press and hold the Enter button.
  4. When the opener lights flash, your code is accepted.

What to Do If Resetting Doesn’t Work

Sometimes, pressing the Learn button doesn’t reset the system correctly. Here’s what you can do:

  • Double-check power supply: A faulty outlet or loose plug might prevent the reset from initiating.
  • Check for signal interference: Nearby electronics can disrupt the opener’s signal. Unplug devices like routers or baby monitors temporarily.
  • Replace batteries: Old or dying batteries in remotes and keypads often mimic reset failures.
  • Inspect the safety sensors: Blocked or misaligned sensors can stop the door from functioning, even after a reset.

Reset vs. Reprogram: What’s the Difference?

It’s easy to confuse resetting with reprogramming. Here’s the distinction:

  • Resetting erases all paired devices and clears the memory.
  • Reprogramming pairs individual remotes, wall units, and keypads back into the system.

You must reset first if you’re unsure about who has access to your garage, such as after moving into a new home.

When Should You Call a Professional?

Most homeowners can handle the reset themselves, but certain scenarios may require expert help:

  • You lost access to the Learn button and can’t reach the motor unit.
  • Your opener is more than 15 years old and lacks proper documentation.
  • Resetting does not resolve operational issues like failure to close or open.

If you’ve followed all the steps and still have trouble, a garage door technician can diagnose internal faults in the motor, circuit board, or wiring.

Advanced Tips for Craftsman Garage Door Opener Owners

After learning how to reset your Craftsman half horsepower garage door opener, consider these extra tips to enhance security and performance:

✅ Enable Rolling Code Technology

Many Craftsman openers include Security+ rolling code technology, which generates a new access code every time the remote is used. This prevents code theft and unauthorized access.

✅ Use a Smart Garage Hub

Want to control your garage from your smartphone? Add a smart garage hub compatible with Craftsman models to enable mobile access, voice commands, and activity tracking.

✅ Conduct Annual Maintenance

Regular maintenance ensures long-lasting performance. This includes:

  • Lubricating tracks and rollers
  • Tightening bolts
  • Cleaning safety sensors
  • Testing balance and alignment

FAQs: How To Reset Your Craftsman Half Horsepower Garage Door Opener

Q: Will a reset erase the HomeLink system in my car?

A: Yes. If you perform a full reset, you’ll need to reprogram your car’s built-in opener system afterward.

Q: How do I know if the reset was successful?

A: You’ll know the reset was successful if none of the remotes or keypads work after holding the Learn button for 10 seconds. You must then reprogram them.

Q: Do all Craftsman garage door openers use the same reset method?

A: Most models follow a similar reset method, but older units (pre-2000) may require alternate steps. Always consult your model’s user manual.

Final Thoughts

Resetting your garage door opener isn’t just about fixing a problem—it’s about taking control of your home’s security. By learning how to reset your Craftsman half horsepower garage door opener, you ensure that only trusted individuals have access to your garage and, by extension, your home.

Whether you’re doing it for the first time or after a security incident, this guide equips you with everything you need to safely reset and reprogram your Craftsman opener. And remember, a secure garage starts with regular checks, strong PINs, and updated access controls.

How To Reset PIN On W Craftsman Garage Door Opener: A Complete Step-by-Step Guide for Homeowners

by
How To Reset Pin On W Craftsman Garage Door Opener

A secure and functional garage door opener is a necessity in every home, offering convenience and peace of mind. If you’re using a W Craftsman garage door opener, you know how important your access PIN is. But what if you forget it, or just want to change it for security reasons? In this in-depth guide, we’ll explain how to reset PIN on W Craftsman garage door opener—quickly, safely, and efficiently.

How To Reset Pin On W Craftsman Garage Door Opener

Whether you’re a new homeowner, recently moved into a property with an existing system, or just want to update your security settings, this article is tailored to help you through the process with clarity.

Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Why You Might Need to Reset Your Craftsman Garage Door Opener PIN

There are many practical and security-based reasons to reset your PIN:

  • You’ve forgotten the current PIN
  • A previous homeowner or tenant knew the old code
  • Your system is acting erratically or inconsistently
  • You’re updating your home security measures
  • You want to give access to someone temporarily and later remove it

Whatever your reason, learning how to reset PIN on W Craftsman garage door opener will empower you to manage your garage security with confidence.

How To Reset PIN On W Craftsman Garage Door Opener

Before diving into the steps, it’s important to understand the basic system your garage opener uses. Most W Craftsman garage door openers use a keypad in conjunction with a motor unit installed on the ceiling of the garage.

Step-by-Step Instructions:

🔧 Step 1: Locate the “Learn” Button on the Motor Unit

The “Learn” button is located on the back or side panel of your Craftsman garage door opener’s motor unit. You may need to remove a light cover or panel to access it.

  • The button is typically yellow, orange, red, or purple depending on the model.
  • It’s often labeled “Learn” or has an LED next to it.

🔧 Step 2: Press and Hold the “Learn” Button

To reset the PIN:

  • Press and hold the Learn button for approximately 6–10 seconds.
  • The LED light next to it will either turn off or blink, indicating that previous PIN codes and remote controls have been erased.
  • This action essentially wipes the memory of the opener and prepares it for reprogramming.

🔧 Step 3: Enter Your New PIN on the Wireless Keypad

After resetting, you’ll need to reprogram the unit with a new PIN:

  1. Go to your wireless keypad.
  2. Within 30 seconds of releasing the Learn button, enter a 4-digit new PIN of your choice.
  3. Press and hold the Enter button on the keypad.

You may hear a click or see the garage light blink—this means the system accepted the new code.

🔧 Step 4: Test the New PIN

To ensure the new PIN works:

  • Wait a few seconds and then enter the new 4-digit PIN.
  • Press Enter and watch if the door activates.

If it doesn’t respond, repeat the steps again—timing is key during programming.

Understanding the PIN Reset Process

Many users wonder: “Is resetting my PIN the same as resetting the opener entirely?” The answer is not exactly. When you hold down the Learn button for a few seconds, you are only erasing remote and keypad codes—not the entire opener’s system settings.

By understanding this, you can confidently change the PIN without affecting the mechanical operation of the garage door itself.

Tips for a Smooth PIN Reset Experience

Here are some additional tips when learning how to reset PIN on W Craftsman garage door opener:

  • Choose a PIN that’s easy for you to remember, but hard for others to guess (avoid using birthdays or common numbers like “1234”).
  • If you live in a multi-user household, notify everyone of the change.
  • Test your new PIN multiple times to ensure reliability.
  • Keep a record of your PIN in a secure, offline location.

Common Issues and Troubleshooting

Sometimes, even after following the steps, you might run into issues. Let’s cover some common problems and their solutions.

🚫 Problem: Keypad not responding after entering new PIN

Solution: Check the battery in the keypad. Replace it with a fresh 9-volt battery and try again.

🚫 Problem: Door won’t open after resetting

Solution: Ensure you entered the PIN within 30 seconds of pressing the Learn button. Timing is critical.

🚫 Problem: Multiple garage door openers in the neighborhood are interfering

Solution: Reset your Craftsman opener to a different frequency if the model supports it or consult the manual to enable Security+ technology, which helps avoid signal interference.

Safety Considerations When Resetting Your Craftsman PIN

  • Always reset the code while the garage is closed to avoid injury or damage.
  • Don’t share your PIN with people you don’t trust.
  • After resetting, ensure that any linked remotes or wireless devices are also re-synced, especially if you erased all memory during the process.

What If You Can’t Access the Learn Button?

If your garage ceiling is high or the motor is difficult to reach:

  • Use a sturdy ladder or a telescopic pole with a hook to press the Learn button.
  • Alternatively, consider investing in a Craftsman Smart Garage Hub which allows remote management via an app, reducing the need for physical access.

Using the Craftsman Keypad to Add Temporary Access

After resetting your primary PIN, you can also program a temporary PIN for visitors, service providers, or deliveries.

Here’s how:

  1. Enter your main PIN and press #.
  2. Press and hold # again until the LED blinks.
  3. Enter the temporary 4-digit code and press Enter.

This temporary PIN will expire after a certain number of uses or hours, depending on the model.

Maintaining Your Garage Door Security

Resetting the PIN is just one aspect of securing your garage. Here are additional ways to keep your entry point safe:

  • Inspect your keypad and opener monthly for wear and tear.
  • Disable remote access when you go on vacation.
  • Upgrade to a rolling code system (like Craftsman Security+ 2.0) if your system is older.
  • Keep the keypad clean and weather-protected, especially in humid or cold regions.

FAQs: How To Reset PIN On W Craftsman Garage Door Opener

Q: Can I reset my Craftsman keypad without a ladder?

A: Only if your keypad has a reset button or is connected to a smart opener that supports wireless resetting.

Q: Will resetting the PIN erase all remote controls?

A: If you press and hold the Learn button for too long (6+ seconds), it will erase all paired devices. Press briefly to avoid this.

Q: What if I forgot both my PIN and can’t access the Learn button?

A: You may need to call a technician or contact Craftsman customer support for a system reset using your model number.

Q: Is there a mobile app for PIN resetting?

A: Newer Craftsman Smart Garage systems may support smartphone control through apps like myQ, depending on model compatibility.

Final Thoughts

Learning how to reset PIN on W Craftsman garage door opener is a critical skill for maintaining your home’s security and convenience. The process is relatively straightforward and takes just a few minutes once you’ve located the Learn button and followed the programming steps.

Whether you’re changing the code for safety, handing off temporary access, or troubleshooting, this guide equips you with all the knowledge you need. Don’t let a forgotten PIN compromise your peace of mind—reset it today and take control of your garage access.

How To Reset Garage Door Opener With Red Button Craftsman: A Complete Step-by-Step Guide for Homeowners

by
How To Reset Garage Door Opener With Red Button Craftsman

When your garage door opener starts acting up—maybe the remote stops working, the keypad malfunctions, or your system needs a security refresh—resetting the opener is usually the best first step. If you own a Craftsman garage door opener, you’re in luck. Most Craftsman models are user-friendly, and resetting them is straightforward—especially if your model includes the red “Learn” button.

How To Reset Garage Door Opener With Red Button Craftsman

In this comprehensive guide, we’ll walk you through how to reset garage door opener with red button Craftsman models, explain why you may need to perform a reset, and give you helpful tips to reprogram your remotes, keypads, and in-car openers.

How To Reset Garage Door Opener With Red Button Craftsman – Step-by-Step Process

If your Craftsman garage door opener features a red “Learn” button, it means you’re working with a system that uses Security+ technology—a trusted standard for safe and secure operation. Resetting this type of opener clears stored remote and keypad codes and allows you to start fresh with your programming.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

Here’s how to do it:

Step 1: Locate the Red “Learn” Button

The red button is usually found:

  • On the back or side of the garage door opener motor unit.
  • Under a light cover (you may need to slide it open).
  • Marked with “Learn” beside or above the button.

The red button identifies an earlier generation of Craftsman openers that are still widely used today.

Step 2: Erase All Existing Codes

To perform a full reset and remove all remotes, keypads, and HomeLink devices:

  1. Press and hold the red “Learn” button on the motor unit.
  2. Hold it for 6 to 10 seconds until the LED light next to the button turns off.
  3. Release the button. This clears all previously programmed devices from memory.

🔄 Note: After this step, no remote or keypad will be able to operate the door until it’s reprogrammed.

Step 3: Reprogram Your Remote Control

Now that the memory has been wiped, reprogram the remotes:

  1. Press the red Learn button once (not hold).
  2. Within 30 seconds, press and hold the button on your remote control.
  3. The motor light will blink or click once, indicating successful programming.
  4. Release the remote button.

Repeat for all additional remotes.

Step 4: Reprogram the Keypad

If you use a Craftsman wireless keypad:

  1. Press the red Learn button on the motor unit once.
  2. Within 30 seconds, enter your new 4-digit PIN on the keypad.
  3. Press and hold the Enter button until the opener light blinks or you hear a click.
  4. Release the button and test the keypad.

Step 5: Test the System

Check all programmed devices (remotes and keypads) to ensure they now work with the opener. If they do, congratulations—you’ve successfully reset your Craftsman garage door opener using the red Learn button.

Why Reset a Craftsman Garage Door Opener With a Red Button?

There are several valid reasons to reset your garage door opener:

  • Lost or stolen remote: Prevent unauthorized access to your home.
  • Malfunctioning keypad: A reset often fixes connectivity or response issues.
  • Moving into a new home: Clear all old codes from previous owners.
  • Adding new remotes: Ensures fresh and secure pairing.
  • Intermittent performance: Resetting often resolves glitches caused by power surges or interference.

Understanding how to reset garage door opener with red button Craftsman is part of good home security and garage maintenance.

Troubleshooting Common Reset Issues

Even though the reset process is simple, you might run into hiccups. Here are some quick fixes:

Remote Still Doesn’t Work After Reset

  • Make sure you pressed the red button once before pairing.
  • Check the remote battery—a weak battery may not signal properly.
  • Be within 5 feet of the opener during programming.

Keypad Not Pairing

  • Ensure the keypad is compatible with your Craftsman opener.
  • Double-check your PIN entry and press Enter firmly.
  • Some models require pressing # before entering the code.

Garage Door Opener Light Doesn’t Blink

  • Confirm the motor is receiving power.
  • The lightbulb may be burned out—listen for a clicking sound instead.

How to Identify Your Craftsman Opener Model and Compatibility

Not all Craftsman openers use a red Learn button. The Learn button color indicates the generation of the opener:

  • Red: Security+ (early models)
  • Purple: Security+ 315MHz
  • Yellow: Security+ 2.0
  • Green/Orange: Legacy models

If yours has a red Learn button, this guide applies directly to your setup. Models like 139.53600, 139.53985D, 139.53778 often include this button.

Benefits of Resetting and Reprogramming Regularly

Resetting your garage door opener isn’t just for fixing problems—it also boosts safety and keeps your system performing at its best.

Here’s why:

  • Enhanced security: Prevents old devices from opening your door.
  • Better organization: Know exactly which remotes and keypads are in use.
  • Cleaner performance: Resets often clear system glitches or bugs.
  • Peace of mind: You control who has access to your garage.

How to Maintain a Craftsman Opener With a Red Button

To extend the lifespan of your opener and keep resets to a minimum:

  • Change remote/keypad batteries annually.
  • Lubricate the door tracks and chains or belts.
  • Check sensor alignment every few months.
  • Update light bulbs with compatible ones (use non-LED for older models to prevent interference).
  • Keep the antenna straight and unobstructed for better remote reception.

When to Upgrade Instead of Resetting

Although resetting helps resolve many issues, it might be time to upgrade your system if:

  • Your opener lacks safety sensors (required after 1993).
  • You want to control the opener via smartphone (e.g., MyQ).
  • The opener is no longer responsive even after multiple resets.
  • The unit makes loud, grinding noises or shows signs of wear.

Modern garage door openers offer Wi-Fi connectivity, battery backup, and improved safety features that older red-button Craftsman models may lack.

FAQs: How To Reset Garage Door Opener With Red Button Craftsman

Q: How many remotes can I program to a Craftsman opener?

A: Most models allow up to 4–6 remote devices. After that, programming a new one may replace the oldest stored code.

Q: Will resetting the opener affect my vehicle’s HomeLink system?

A: Yes. After a reset, you’ll need to reprogram your in-car HomeLink system like any other remote.

Q: Can I reset the opener without a ladder?

A: You’ll need to access the motor unit, which usually requires a ladder. Always use proper safety precautions.

Conclusion: Why Knowing How To Reset Garage Door Opener With Red Button Craftsman Matters

Resetting a Craftsman garage door opener with a red Learn button is a quick and effective way to troubleshoot problems, enhance home security, and maintain control over who has access to your garage. With just a few steps—locating the red button, clearing the memory, and reprogramming remotes—you can restore your system to like-new performance.

Whether you’re a new homeowner, dealing with lost remotes, or just want peace of mind, mastering this simple process can save time, money, and stress.

So next time you encounter a garage door that won’t respond, remember: the fix may be as easy as pressing a red button.

How To Reset Craftsman Garage Door Opener With Access Master: A Complete Step-by-Step Guide for Homeowners

by
How To Reset Craftsman Garage Door Opener With Access Master

Resetting your garage door opener can feel intimidating, especially if you’re dealing with a Craftsman unit paired with an Access Master system. Whether you’re upgrading your home security, troubleshooting technical issues, or reprogramming after a power outage, knowing how to reset Craftsman garage door opener with Access Master is crucial for maintaining a safe and functional garage.

How To Reset Craftsman Garage Door Opener With Access Master

In this guide, we’ll walk you through the entire reset process, including how to identify your system components, step-by-step reset instructions, common troubleshooting tips, and expert insights to help you get your opener back in working order.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

How To Reset Craftsman Garage Door Opener With Access Master — Step-by-Step Instructions

Before diving into the reset process, it’s helpful to understand the integration between Craftsman garage door openers and Access Master systems. Access Master is often used as a control panel or keypad system that pairs seamlessly with Craftsman and other LiftMaster-compatible openers. Resetting the opener ensures your remote access remains secure and allows you to resolve issues like nonresponsive remotes or forgotten codes.

Here’s how to do it step-by-step:

Step 1: Identify the “Learn” Button

The first step in resetting your Craftsman garage door opener is to locate the “Learn” button on the motor unit.

  • The motor is typically mounted on the ceiling inside your garage.
  • You may need to remove the light cover to find the button.
  • The Learn button can be red, yellow, orange, green, or purple depending on your model.

Tip: This button is key to both erasing old settings and reprogramming new devices.

Step 2: Erase Existing Programming

If you want to completely reset your Craftsman opener and clear all paired devices:

  1. Press and hold the Learn button for approximately 6–10 seconds.
  2. You’ll see an LED next to the Learn button turn off. This indicates that all keypads, remotes, and wireless devices have been erased from memory.

⚠️ Note: This step will disconnect all programmed remote controls and keypads. Be sure to reprogram any remotes you still want to use.

Step 3: Reset the Access Master Keypad or Control Panel

Once you’ve cleared the opener’s memory, it’s time to reset the Access Master system.

  1. Press the “*” and “#” keys on the keypad at the same time.
  2. Wait until the keypad light stays on or stops blinking.
  3. Enter your desired 4-digit personal identification number (PIN).
  4. Press the Enter or Learn button on the keypad.

Then, return to the motor unit:

  1. Press the Learn button once (not hold).
  2. Enter your 4-digit PIN on the keypad and press Enter.
  3. The garage door opener light will blink or the motor will click, indicating successful pairing.

Step 4: Reprogram Remote Controls

If you also use handheld remotes:

  1. Press the Learn button on the motor unit once.
  2. Within 30 seconds, press and hold the button on your remote control until the garage door clicks or the light blinks.

Repeat for all remotes.

Why You Might Need to Reset Your Craftsman Opener with Access Master

There are several common reasons why you may want to reset your system:

  • Security concerns (lost remote, unauthorized access)
  • New homeowner setup
  • Power outages or electrical issues
  • System upgrades
  • Keypad or remote stops working
  • Adding new access devices

A reset can help restore your system’s functionality and enhance security.

Understanding Craftsman and Access Master Compatibility

Craftsman garage door openers often share technology and hardware compatibility with LiftMaster and Chamberlain models. Access Master components—including wall buttons, keypads, and control panels—are built on the same Security+ technology platform, meaning they work seamlessly together.

Access Master devices provide:

  • Wireless entry options
  • Enhanced security features
  • Multiple user access
  • Easy programming functionality

This is why the process of learning how to reset Craftsman garage door opener with Access Master is practically identical to resetting other LiftMaster-based systems.

Troubleshooting Common Reset Issues

Even with clear steps, sometimes the system doesn’t behave as expected. Here’s how to fix common problems.

Problem: Keypad Doesn’t Pair

Fix: Ensure the battery in the keypad is functional (usually 9V). Replace it and try the reset again.

Problem: Learn Button Not Responding

Fix: Check the power supply to the garage door opener. Try unplugging and replugging the unit, or check the fuse or breaker.

Problem: Remote Still Doesn’t Work After Reset

Fix: Reprogram the remote again using the Learn button. Make sure you’re pressing the correct button on the remote within the 30-second pairing window.

Problem: Door Opens Randomly

Fix: Clear all codes again and only reprogram the remotes and keypad you use. This can stop interference from unauthorized or old remotes.

Advanced Tips for Craftsman and Access Master Users

1. Use Rolling Code Technology

Ensure your system uses Security+ rolling codes, which generate a new code every time the opener is used—preventing code grabbing by potential intruders.

2. Mount Keypad Properly

Install the Access Master keypad 5–6 feet off the ground, away from direct rain and sunlight to ensure longer device life.

3. Reposition Antenna

For best wireless performance, make sure the garage door opener’s antenna hangs straight down from the motor unit and is not tangled or bent.

4. Upgrade to Smart Technology

Consider integrating your Craftsman system with smart garage door openers compatible with MyQ, Alexa, or Google Home. This gives you control via your smartphone, allowing remote resets and monitoring.

FAQs: Resetting Craftsman Garage Door Opener with Access Master

Q: Will resetting the garage door opener erase my car’s HomeLink system?

A: Yes. If you clear all codes, you’ll need to reprogram your vehicle’s integrated remote control (HomeLink or Car2U) by pairing it again.

Q: Can I reset just the keypad without affecting the remotes?

A: No. Most systems clear all devices together. However, you can reprogram only the devices you want to use afterward.

Q: How do I know if the reset was successful?

A: The motor unit will typically flash the light bulb or emit a clicking sound after a successful pairing or reset.

When to Call a Professional

If you’ve followed all the reset instructions and the system still doesn’t work, it may be time to call a professional. Seek help if:

  • The motor is unresponsive
  • The Learn button doesn’t function
  • There is damage to the keypad or remote
  • You need help upgrading to a smart system

Professionals can ensure your Craftsman and Access Master opener is functioning safely and efficiently.

Conclusion: Secure Your Home by Learning How To Reset Craftsman Garage Door Opener With Access Master

Taking control of your garage door system is easier than you might think. Whether you’re upgrading your access security, troubleshooting faulty devices, or preparing for a home sale, learning how to reset Craftsman garage door opener with Access Master is a crucial skill for any homeowner.

By following this guide, you’ve learned:

  • How to clear all existing codes
  • How to program a new Access Master keypad
  • How to reprogram remotes and troubleshoot problems
  • How to enhance your garage door system with best practices and tech tips

A reliable garage door opener isn’t just about convenience—it’s about security and peace of mind. Now that you understand how to reset and reprogram your system, you can ensure only trusted individuals have access to your home.

How To Reset Craftsman Garage Door Opener 1/2 HP Keypad: A Complete Step-by-Step Guide for Homeowners

by
How To Reset Craftsman Garage Door Opener 1/2 Hp Keypad

If you’re experiencing issues with your garage door keypad or simply want to change the access code for security reasons, you’re in the right place. Learning how to reset Craftsman garage door opener 1/2 HP keypad is not only practical, but it’s also surprisingly easy once you understand the steps.

How To Reset Craftsman Garage Door Opener 1/2 Hp Keypad

Whether you’ve just moved into a new home, lost your manual, or are troubleshooting an unresponsive keypad, this guide is designed to help you reset and reprogram your Craftsman 1/2 HP garage door keypad in no time.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

Let’s dive into everything you need to know—from safety tips to a detailed walkthrough of the process.

How To Reset Craftsman Garage Door Opener 1/2 HP Keypad

Before we begin, it’s helpful to understand the basic function of your Craftsman garage door opener 1/2 HP unit and how the keypad interacts with it. The keypad is a wireless device that allows users to open and close the garage door without using a remote control. This is especially convenient for families, guests, or in situations where carrying a remote isn’t ideal.

Resetting the keypad means clearing the existing programming and entering a new PIN. This ensures continued security and accessibility for your household.

Step-by-Step Instructions to Reset Your Craftsman Garage Door Keypad

Step 1: Locate the “Learn” Button

To reset the keypad, you’ll need access to the motor unit of the Craftsman 1/2 HP garage door opener, which is usually mounted on the ceiling of your garage.

  • Remove any light cover if necessary.
  • Look for the “Learn” button, typically located near the antenna wire.
  • The button is often colored red, yellow, purple, or green, depending on the model year.

Step 2: Clear Existing Codes

To erase all programmed keypads and remotes:

  1. Press and hold the “Learn” button for about 6 to 10 seconds.
  2. The LED next to the button will turn off, indicating that all old codes have been cleared from memory.

⚠️ Warning: This will also erase all remotes and keypads. You’ll need to reprogram them afterward.

Step 3: Program a New PIN

Now it’s time to program a new access code.

  1. On your keypad, press the “*” and “#” buttons simultaneously until the keypad light stops blinking.
  2. Enter your new 4-digit PIN (choose something memorable but not obvious).
  3. Press the “Enter” button on the keypad.

Step 4: Sync the Keypad With the Motor

  1. Go back to the opener motor unit and press the “Learn” button once (don’t hold it).
  2. You now have 30 seconds to complete the pairing.
  3. Return to the keypad and enter your new PIN, followed by the “Enter” button.
  4. If successful, the motor will respond by clicking or the light will flash—indicating that the new PIN has been accepted.

Troubleshooting Tips

Even with clear instructions, some users may run into hiccups. Here’s how to resolve common issues:

Issue 1: The Keypad Doesn’t Light Up

Solution: Replace the batteries. Most Craftsman keypads use a 9V battery located behind the keypad panel.

Issue 2: The Keypad Doesn’t Sync

Solution: Double-check that you pressed the Learn button only once. Holding it down too long clears all memory.

Issue 3: The Door Doesn’t Respond

Solution: Ensure you’re entering the correct PIN and pressing the “Enter” button within 30 seconds of pressing “Learn.”

Understanding Craftsman Garage Door Openers and Security Features

Craftsman is a trusted name in residential garage door openers. Their 1/2 HP models are ideal for single or double garage doors and offer smooth, reliable operation.

Modern models use rolling code technology, meaning the keypad and opener use a different code each time the door is activated. Resetting the keypad ensures that your garage remains secure from unauthorized access.

Reasons you may need to reset:

  • Moving into a new home
  • Forgotten PIN
  • Selling your house
  • Keypad not responding
  • Routine maintenance or security updates

Advanced Tips for Better Performance

If you want to go beyond a simple reset, consider the following:

1. Upgrade to a Wireless Keypad

Newer Craftsman openers are compatible with wireless keypads that allow for easier installation and better performance.

2. Check for Interference

If your keypad stops working intermittently, nearby electronics could be causing signal interference.

3. Reposition the Antenna

Make sure the antenna wire on your garage door opener is hanging straight down for optimal signal reception.

Frequently Asked Questions

Q: Can I reset the keypad without affecting the remotes?

A: No. Pressing and holding the Learn button erases all paired devices. To avoid this, simply reprogram the keypad by using the Learn button without holding it.

Q: What if I don’t have a Learn button?

A: Very old Craftsman models may use dip switches instead. In that case, consult your manual or call Craftsman support for dip switch reprogramming.

Q: How long does the keypad stay lit?

A: The keypad usually remains illuminated for 15–30 seconds after pressing a button, allowing you to safely enter the code in low light.

Safety Tips When Working With Garage Door Openers

  • Always disconnect power before working on electrical parts.
  • Use a ladder with caution and ask someone to assist if needed.
  • Do not allow children to play with the keypad or remote devices.
  • If your opener shows signs of mechanical failure, contact a professional instead of DIY.

When to Call a Professional

If after several attempts your keypad still won’t reset or work properly, it might be time to consult with a garage door technician. This is especially true if:

  • The keypad is physically damaged
  • The garage door motor is making strange noises
  • The Learn button is unresponsive
  • You’re unsure of your model number

Professionals can also help update you to a more secure keypad system, or even integrate your Craftsman opener with smart home systems for mobile access.

Final Thoughts: Stay Secure and In Control

Learning how to reset Craftsman garage door opener 1/2 HP keypad is a vital part of maintaining home security and convenience. With this comprehensive guide, you now have all the tools you need to confidently manage your keypad, reset old codes, and keep your garage secure.

Whether you’re resetting due to a lost code or just updating for peace of mind, following these steps ensures your system is functioning smoothly and safely.

Keep your Craftsman garage door system maintained regularly, and you’ll enjoy years of reliable service.

How To Reset Code On Sears Craftsman Garage Door Opener: Easy Steps for a Secure Home

by
How To Reset Code On Sears Craftsman Garage Door Opener

In today’s world, home security is more important than ever. One commonly overlooked aspect of home security is your garage door opener code. If you’ve recently moved into a new home, lost a remote, or simply want to refresh your system, learning how to reset code on Sears Craftsman garage door opener is a smart and proactive step.

How To Reset Code On Sears Craftsman Garage Door Opener

Resetting your garage door opener’s code can prevent unauthorized access and ensure that only your household has control over the system. Fortunately, if you own a Sears Craftsman model, the process is fairly straightforward and can be completed in just a few minutes with minimal tools.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

This article will walk you through everything you need to know—from understanding why resetting your code is essential to providing detailed, step-by-step instructions. We’ll also include tips for troubleshooting and maintaining a secure system long-term.

Why Resetting Your Garage Door Opener Code Matters

Your garage door is one of the largest entry points to your home. It’s not just a convenience—it’s a matter of safety. There are several reasons why you should know how to reset code on Sears Craftsman garage door opener:

  • Security after moving: You don’t know who the previous owners gave access to.
  • Lost or stolen remotes: A lost remote can become a key in the wrong hands.
  • New tenants or roommates: You may need to restrict access when someone moves out.
  • Prevent code theft: Older systems using fixed codes can be intercepted by scanners.
  • Peace of mind: Updating your code ensures that only you can control access.

Resetting your code not only gives you peace of mind but also extends the functionality and safety of your Craftsman garage door opener.

Understanding the Sears Craftsman Garage Door Opener System

Sears Craftsman garage door openers are manufactured by Chamberlain, and most models use the “Learn” button to handle programming tasks like syncing remotes and keypads or resetting codes.

Common features include:

  • A Learn button on the back or side of the motor unit.
  • Remote control transmitters that pair via radio frequency.
  • Keyless entry pads mounted outside your garage.
  • Security+ or Security+ 2.0 technology for rolling codes.

Knowing your model number can help you identify the exact method for resetting the code. Most modern Sears Craftsman openers follow a similar procedure, but some older models may differ slightly.

How To Reset Code On Sears Craftsman Garage Door Opener

Ready to reset your opener code? Follow these step-by-step instructions based on your setup.

Step 1: Locate the Learn Button

  • Climb a sturdy ladder to access the motor unit mounted on your garage ceiling.
  • Look for the Learn button. It’s typically located on the back panel near the light bulb cover and may be red, yellow, orange, green, or purple depending on your model.
  • You may need to remove the light lens cover to see it clearly.

Step 2: Clear the Existing Codes

  • Press and hold the Learn button for about 6–10 seconds until the LED light next to it turns off.
  • This action erases all programmed remotes and keypads from the opener’s memory.
  • Note: You must reprogram all remotes and keypads after this step.

Step 3: Reprogram the Remote Control

  • Press the Learn button once (just a quick press, not a long hold).
  • The LED light will turn on and stay on for 30 seconds.
  • While the light is on, press and hold the button on your remote control that you want to program.
  • Release the button when the motor unit clicks or the light blinks, indicating successful programming.

Step 4: Reset the Keypad Code (If You Have a Keyless Entry)

  • Press the Learn button once to initiate programming.
  • Within 30 seconds, go to your keypad and:
    • Enter your new 4-digit code.
    • Press and hold the Enter button until the light on the motor unit blinks or clicks.
  • Your new code is now stored and active.

Tips for Choosing a Secure Garage Door Code

To ensure your garage remains secure after resetting the code:

  • Avoid predictable numbers like 1234 or your birth year.
  • Use a random combination that is easy for your household to remember.
  • Change the code periodically, especially if you suspect it’s been compromised.
  • If your keypad allows, choose a longer code (5 or more digits) for extra security.

What to Do If Your Remote or Keypad Won’t Program

If you’ve followed the steps but your remote or keypad isn’t pairing correctly, try these troubleshooting tips:

  • Check the battery: Weak or dead batteries in your remote or keypad can cause issues.
  • Verify the Learn button color: Some remotes are only compatible with specific Learn button colors.
  • Distance matters: Make sure you’re within 5–10 feet of the motor when programming.
  • Try again: Timing is critical—make sure you press your remote/keypad button while the Learn light is still illuminated.
  • Reset again: If all else fails, clear the memory once more and try reprogramming.

Additional Security Features to Consider

Modern Sears Craftsman openers offer a range of advanced features. Consider upgrading or enabling the following for enhanced safety:

  • Rolling Code Technology: Prevents code theft by changing the code with every use.
  • Smartphone Control: Use apps like myQ for remote monitoring and control.
  • Temporary Keypad Codes: Set up temporary access for guests or deliveries.
  • Vacation Lock: Some wall consoles allow you to disable all remote inputs when you’re away.

Maintaining a Secure Garage Door System

Resetting the code is just one part of good security. Here are more tips to keep your garage secure:

  • Inspect hardware: Look for rust, misalignment, or wear on the tracks and opener.
  • Test safety sensors: Ensure your photoelectric sensors are properly aligned and functional.
  • Secure the emergency release: Install a zip tie or shield to prevent break-in attempts via coat hanger tricks.
  • Don’t share your code: Only give the keypad code to trusted individuals.
  • Update technology: Consider upgrading older models that lack rolling codes or wireless security.

When Should You Reset the Code?

Regularly resetting your opener code ensures your security remains intact. Here are times when it’s especially critical:

  • After buying a new home: Always reset to avoid unknown access.
  • Following a burglary or break-in attempt
  • When losing a remote or keypad
  • After renting out or selling your home
  • If your garage door opens randomly (this could be due to signal interference or code duplication)

Common Myths About Garage Door Security

Let’s bust a few myths that could mislead you into a false sense of security:

  • “My code is safe if I’ve never shared it.”
    • Codes can be guessed, intercepted, or shared without your knowledge.
  • “I only need to reset the remote, not the keypad.”
    • Wrong—resetting the Learn memory clears everything. You must reprogram all devices.
  • “Older systems are just as secure.”
    • Not true. Fixed-code systems are far easier to hack.
  • “If it still works, I don’t need to update it.”
    • Regular maintenance and code resets are essential for continued safety.

Conclusion

Knowing how to reset code on Sears Craftsman garage door opener is more than just a technical skill—it’s a way to protect your home, your family, and your belongings. With this complete guide, you’re equipped to update your system securely, whether you’ve just moved in or are being proactive about safety.

Don’t wait for something to go wrong. Taking 10–15 minutes today to reset your code can help avoid hours—or even thousands of dollars—of headache later.

If you’re ever unsure or have a particularly old model, consult your user manual or contact Sears Craftsman support for help. But in most cases, you now have everything you need to keep your garage—and your home—safe.

How To Replace Limit Switch On Craftsman Garage Door Opener: A Complete Step-by-Step Guide for DIY Enthusiasts

by
How To Replace Limit Switch On Craftsman Garage Door Opener

Garage door openers, particularly those made by Craftsman, are reliable, durable, and built to last. But like all mechanical systems, they contain parts that wear down over time—one of the most crucial being the limit switch. This component tells the opener when to stop moving the door in either direction. If your door won’t close all the way, doesn’t open completely, or continues running after opening or closing, the limit switch may be to blame.

How To Replace Limit Switch On Craftsman Garage Door Opener

Fortunately, understanding how to replace limit switch on Craftsman garage door opener is a straightforward process that doesn’t necessarily require a technician. With a few tools, a replacement part, and a bit of patience, you can handle this repair yourself. This article walks you through every detail, from identifying the problem to installing the new part and testing your work.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

How To Replace Limit Switch On Craftsman Garage Door Opener

Before diving into the replacement process, it’s important to understand what the limit switch does and why it’s essential. The limit switch acts like the brain’s sensory input in your garage door opener. It tells the motor when to stop running based on the position of the door.

A malfunctioning limit switch can cause a wide range of issues, including:

  • The garage door reversing unexpectedly
  • The door refusing to close completely
  • The motor continuing to run after the door has stopped moving
  • A clicking sound but no movement

Replacing this small but mighty component can restore your opener’s proper function and prevent long-term damage.

Signs of a Faulty Limit Switch

Recognizing the symptoms of a broken or worn-out limit switch is key to timely repair. Here’s what to look out for:

  • Inconsistent door travel: The door stops too soon or doesn’t open fully.
  • Continuous motor operation: Even after the door has completed its travel.
  • Door reversal on closing: The opener thinks the door has hit something and reverses unexpectedly.
  • Failure to engage: The motor clicks but doesn’t move the door.

These symptoms often indicate that the limit switch is worn out, misaligned, or broken and needs replacing.

Tools and Materials You’ll Need

To replace the limit switch on your Craftsman garage door opener, gather the following:

Tools:

  • Flathead and Phillips screwdrivers
  • Nut driver or socket set (usually 1/4″ or 5/16″)
  • Needle-nose pliers
  • Ladder or step stool
  • Multimeter (optional, for testing continuity)

Materials:

  • Replacement limit switch (compatible with your Craftsman model)
  • Electrical tape (optional)
  • Zip ties (for organizing wires)
  • User manual (to reference model-specific diagrams if needed)

Safety First: Important Precautions

Before you start:

  1. Disconnect power: Unplug the garage door opener or switch off its breaker.
  2. Secure the door: Ensure the garage door is in a stable closed position before working.
  3. Use proper lighting: You’ll be working in the opener’s housing, so use a work light or headlamp.
  4. Keep hardware organized: Place screws and small parts in a tray or container to avoid loss.

Step-by-Step Instructions

Step 1: Locate the Limit Switch Assembly

  • Use a ladder to access the main motor unit on the ceiling.
  • Remove the plastic light lens or metal housing cover using a screwdriver.
  • Look for the limit switch assembly, usually mounted on or near the rail inside the opener housing. It consists of two switches triggered by plastic tabs on a rotating screw drive or chain.

Step 2: Remove the Faulty Switch

  • Carefully inspect the limit switch wiring and connections.
  • Use your pliers to disconnect the wires from the terminals. You may want to label or take a picture of wire positions for reassembly.
  • Unscrew the mounting screws holding the switch in place.
  • Gently slide or lift the switch out of the housing.

Step 3: Install the New Limit Switch

  • Align the new switch in the same orientation as the old one.
  • Attach it using the same screws or brackets.
  • Reconnect the wires to the appropriate terminals (usually marked “NO” for normally open, “NC” for normally closed).
  • Use electrical tape to secure any loose wiring or use zip ties to keep wires organized.

Step 4: Adjust the Switch Position

  • Some models allow fine-tuning of the switch location using adjusting screws or a sliding bracket.
  • Position the switch so that the actuator arm or trip mechanism hits the limit switch at the correct point during travel.
  • Refer to your user manual for model-specific alignment instructions.

Step 5: Reassemble and Test

  • Replace the housing or light cover on the opener.
  • Plug the opener back in or switch on the breaker.
  • Test the door’s travel:
    • Press the wall control to open the door fully.
    • Close it and listen for any unusual motor sounds or irregular movement.
    • If the door stops at the correct points, your switch is installed correctly.

Troubleshooting After Replacement

If the door still misbehaves after replacing the switch, try the following:

  • Double-check wiring: Misconnected terminals can cause the switch to fail.
  • Inspect the gear and rail mechanism: Wear or debris might hinder proper operation.
  • Reset the opener: Some Craftsman models allow a system reset via control panel or wall button.
  • Use a multimeter: Verify continuity in the switch circuit.

Why Do Limit Switches Fail?

Limit switches typically fail due to:

  • Wear and tear: Years of physical contact eventually wear down components.
  • Overheating: Heat inside the motor unit may damage internal switch parts.
  • Moisture: Exposure to humidity or garage leaks can corrode electrical contacts.
  • Accidental misalignment: A bump or shift can knock the switch out of position.

Preventative maintenance—like regular inspection and cleaning—can help extend the life of your limit switches.

When to Call a Professional

Replacing the limit switch is generally a DIY task, but seek professional help if:

  • You’re unsure about electrical safety.
  • Multiple components (like the motor or logic board) are failing.
  • The limit switch replacement doesn’t resolve the issue.
  • You’re dealing with a very old or discontinued opener model.

Benefits of Replacing the Limit Switch

Swapping out a faulty limit switch offers several practical advantages:

  • Restores safe and consistent door operation
  • Reduces strain on the motor and gears
  • Prevents premature failure of other opener components
  • Saves on costly service calls for a simple fix

Tips for Maintaining Your Craftsman Garage Door Opener

  • Inspect limit switches every 6–12 months for wear or misalignment.
  • Clean rail and switch area to prevent dust or grime buildup.
  • Check door balance; an unbalanced door can stress the opener and its switches.
  • Use surge protectors to avoid electrical damage from power spikes.

Conclusion

Understanding how to replace limit switch on Craftsman garage door opener empowers you to maintain one of your home’s most critical access points. While it may seem like a small component, the limit switch plays a huge role in ensuring your garage door opens and closes safely and efficiently.

This repair is manageable with common tools, basic electrical knowledge, and careful attention to safety. By following the guide above, you can restore full functionality to your opener and avoid unnecessary service charges.

If you’re still uncertain about your model or wiring configuration, always consult your Craftsman owner’s manual or reach out for technical support. Taking the initiative now will save you time, money, and potential headaches down the road.

How To Replace Light Socket In Craftsman Garage Door Opener: A Step-by-Step DIY Repair Guide

by
How To Replace Light Socket In Craftsman Garage Door Opener

Is the light on your Craftsman garage door opener flickering, refusing to turn on, or completely dead even after replacing the bulb? If so, the issue might not be the bulb—it could be the light socket itself. Thankfully, you don’t have to call in a professional or replace the entire opener. Learning how to replace light socket in Craftsman garage door opener is a straightforward repair that you can perform with basic tools and a little bit of know-how.

How To Replace Light Socket In Craftsman Garage Door Opener

In this comprehensive guide, we’ll walk you through every step of replacing the light socket in your Craftsman garage door opener. This repair can restore functionality to your opener’s lighting system, increase visibility in your garage, and help you avoid more serious electrical issues in the future.

Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It

How To Replace Light Socket In Craftsman Garage Door Opener

Before diving into the step-by-step instructions, let’s understand the basics. The light socket in your garage door opener is the component that connects the bulb to the electrical wiring in the opener. Over time, exposure to heat, electrical surges, corrosion, or simply wear and tear can cause the socket to fail.

Replacing it is not only a simple DIY project, but it can also save you from a dark, potentially unsafe garage environment.

Symptoms of a Faulty Light Socket

Before committing to a light socket replacement, it’s important to identify whether the socket is truly the problem. Here are some common signs of socket failure:

  • New light bulbs do not work.
  • Light flickers intermittently despite a new bulb.
  • Light turns off quickly after turning on.
  • Socket looks discolored or melted.
  • There is visible corrosion or damage to the socket’s terminals.

If any of the above symptoms apply to your Craftsman opener, you’re likely in need of a socket replacement.

Tools and Materials You’ll Need

To complete this repair, gather the following tools and replacement parts:

Tools:

  • Phillips screwdriver
  • Flathead screwdriver
  • Needle-nose pliers
  • Voltage tester (optional but recommended)
  • Nut driver or socket wrench set
  • Ladder or step stool

Materials:

  • Replacement light socket (compatible with your Craftsman opener model)
  • Electrical tape (optional)
  • Wire connectors or crimp caps (if needed)
  • LED or incandescent bulb (for testing)

Safety First: Precautions Before You Start

Always prioritize safety when dealing with any electrical component. Follow these steps:

  1. Unplug the opener from the ceiling power outlet.
  2. Turn off the circuit breaker if the opener is hardwired.
  3. Allow the unit to cool down if it has been in use recently.
  4. Wear safety goggles and gloves if working near sharp edges or electrical components.

Step-by-Step Instructions: How To Replace Light Socket In Craftsman Garage Door Opener

Step 1: Remove the Opener Cover

  • Set up your ladder to access the motor housing.
  • Use a Phillips screwdriver to remove the screws securing the housing cover.
  • Carefully pull down the plastic or metal cover to expose the internal components.
  • Locate the light socket—typically found at one end of the housing, where the bulb is inserted.

Step 2: Disconnect the Existing Socket

  • Use a voltage tester to ensure no current is flowing to the socket.
  • Disconnect the wires attached to the socket terminals. There are usually two wires: a white (neutral) and a black (hot).
  • Take a photo of the wire connections before removal to ensure proper reassembly.
  • Unscrew the socket from its mounting plate using a screwdriver or nut driver.
  • Carefully remove the old socket from the opener housing.

Step 3: Install the New Socket

  • Insert the new socket into the mounting position in the opener housing.
  • Secure it using screws or clips that came with the replacement part.
  • Reconnect the wires using the same configuration as the original socket. Ensure all connections are tight and secure using crimp caps or wire nuts.
  • Optionally, wrap the connections with electrical tape for added insulation.

Step 4: Reassemble the Opener

  • Replace the housing cover and secure it with screws.
  • Plug the opener back into the power outlet or turn the circuit breaker back on.
  • Insert a working bulb into the new socket.

Step 5: Test the New Light Socket

  • Use the wall switch or remote to activate the opener.
  • Observe whether the light comes on as expected.
  • If it works consistently and without flicker, the repair was successful.

Common Mistakes to Avoid

  • Not disconnecting power: Always cut power before touching any wires.
  • Mixing up wire connections: Take photos and label wires if necessary.
  • Over-tightening screws: This can crack the socket or damage the housing.
  • Using incompatible sockets: Ensure the new socket matches your opener model.
  • Using incorrect bulb types: Some LED bulbs may not be compatible with older sockets or openers.

Compatible Socket Models for Craftsman Openers

Most Craftsman garage door openers use universal light sockets, but it’s always best to check your unit’s model number before buying replacements. Some common models include:

  • 41A5266-1
  • 41C4220A
  • 41D7675

Replacement sockets can be found at hardware stores, online marketplaces, or through Sears/Craftsman parts suppliers.

Benefits of Replacing the Light Socket

Replacing the socket isn’t just about restoring a light. It has multiple benefits:

  • Improved visibility: Crucial for safety in your garage.
  • Enhanced security: Lighting deters intruders and helps with camera visibility.
  • Extended opener life: Prevents overheating and electrical damage.
  • Energy efficiency: Enables the use of compatible LED bulbs.

When to Call a Professional

Although most people can safely replace the light socket themselves, there are instances when professional help might be a better option:

  • Signs of electrical burning around the socket.
  • Multiple components (e.g., wiring, control board) appear damaged.
  • Unclear wiring configuration, especially if the unit was previously modified.
  • The socket is integrated into the logic board, which is rare but possible.

Preventive Maintenance Tips

  • Use the correct bulb type: Avoid oversized or high-wattage bulbs that generate excess heat.
  • Clean the socket area periodically to prevent dust accumulation or corrosion.
  • Inspect wires annually to catch wear before it causes socket failure.
  • Switch to LED bulbs designed for openers to reduce heat and energy use.

Final Thoughts

Learning how to replace light socket in Craftsman garage door opener is a practical skill every homeowner should consider mastering. The process is relatively simple, cost-effective, and requires minimal tools. Whether you’re upgrading to a new bulb type or fixing a dead socket, this DIY fix can extend the life of your garage door opener and enhance the functionality of your garage.

If you’ve been left in the dark—literally—don’t wait. Grab a screwdriver, a replacement socket, and follow this guide to restore your garage lighting today.
