Sears Craftsman Garage Door Opener Replacement Parts and How to Choose the Right Ones

Sears Craftsman Garage Door Opener Replacement Parts

Sears Craftsman garage door openers are known for their durability and performance. However, even the best equipment requires occasional maintenance and replacement of worn-out components. Finding the right Sears Craftsman Garage Door Opener Replacement Parts is key to ensuring your garage door opener continues to function reliably. This guide provides essential information about the parts that commonly need replacing, how to identify the right parts, and tips for maintaining your Craftsman garage door opener.

Sears Craftsman Garage Door Opener Replacement Parts

Whether you’re facing issues with the motor, remote control, or sensors, this article will guide you through selecting and replacing parts to keep your garage door opener in excellent condition.


Understanding Your Craftsman Garage Door Opener and Its Components

A Craftsman garage door opener is a complex device with many interconnected components that work together to open and close your garage door. Familiarizing yourself with these components will help you troubleshoot issues and identify which parts may need replacement:

  • Motor Unit: Powers the garage door opener.
  • Drive System: Includes the chain, belt, or screw drive that moves the door up and down.
  • Remote Control and Wall Switch: Allows you to open and close the door remotely or from within your garage.
  • Safety Sensors: Positioned on each side of the door near the ground, they prevent the door from closing if an object is in the way.
  • Gears, Springs, and Belts: Components that aid in the door’s movement and can wear out over time.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


When to Consider Replacement Parts for Your Craftsman Garage Door Opener

Regular use of a garage door opener can cause natural wear and tear, especially in high-use households. Knowing when to replace parts is crucial to maintaining performance and avoiding costly repairs. Some common signs that your garage door opener may need new parts include:

  • Strange Noises: Grinding, squeaking, or rattling can indicate worn gears or chains.
  • Inconsistent Operation: If your garage door opener works sporadically or stops altogether, it may need new electrical components.
  • Faulty Sensors: Misaligned or damaged sensors can prevent the door from closing properly.
  • Remote Control Issues: If the remote no longer functions after changing the batteries, it may need replacement or reprogramming.

Sears Craftsman Garage Door Opener Replacement Parts

Let’s explore the most common Sears Craftsman Garage Door Opener Replacement Parts and how to choose the right ones for your opener.

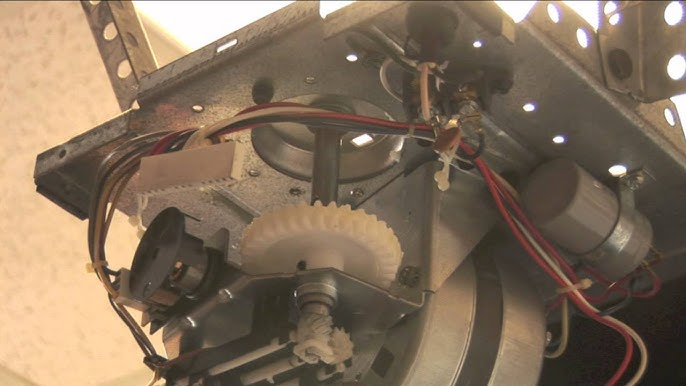

1. Drive Gears

Drive gears are essential to the operation of a Craftsman garage door opener, as they help transfer power from the motor to the door. Over time, gears can wear down, especially if they’re made of plastic.

  • Replacing Drive Gears: If you notice grinding noises or if the door doesn’t move smoothly, it may be time to replace the gears. Sears Craftsman offers replacement gear kits, which come with all necessary components and detailed instructions.

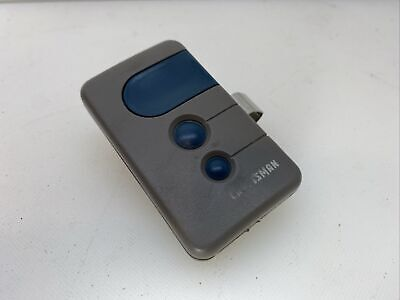

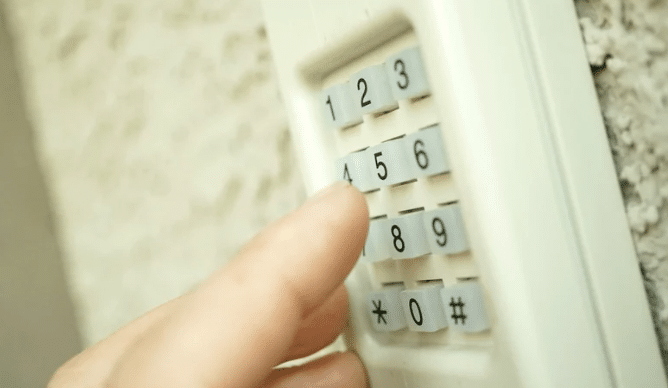

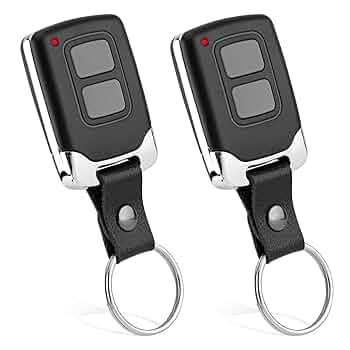

2. Remote Controls and Keypads

If your remote control or keypad stops working, a replacement can restore convenience and functionality. Craftsman offers replacement remotes compatible with a wide range of models, making it easy to find one that fits your garage door opener.

  • Reprogramming a New Remote: After purchasing a replacement, follow the instructions in your manual to pair the new remote with your opener. You’ll typically need to press the “Learn” button on the opener and then press a button on the remote.

3. Safety Sensors

Safety sensors are essential for preventing accidents, as they detect any object in the door’s path. If your door won’t close and the sensor lights are blinking, it may be a sign that the sensors need to be replaced.

  • Purchasing Compatible Sensors: When buying replacement sensors, ensure they’re compatible with your Craftsman model. Installation is straightforward, and replacement sensors come with instructions on how to align and connect them correctly.

4. Chains, Belts, and Screw Drives

The drive mechanism (chain, belt, or screw) plays a crucial role in moving your garage door. Each type has its own maintenance needs:

  • Chain Drives: Often the most durable, but they can become noisy. Replacement chains are available if they become too loose or damaged.
  • Belt Drives: Quieter but may require periodic tightening or replacement.
  • Screw Drives: Require less maintenance but may need replacement if they become worn or make loud noises.

5. Circuit Boards

A malfunctioning circuit board can cause your opener to operate erratically. Circuit board issues can stem from power surges or natural wear over time.

  • Replacing the Circuit Board: Sears offers compatible circuit board replacements for Craftsman garage door openers. Make sure to consult your manual to ensure the replacement board matches your model.

6. Trolley and Rail Assemblies

The trolley and rail assembly helps guide the door up and down. If your garage door opener struggles to lift the door or stops midway, the trolley assembly may need replacing.

  • Trolley Replacement Tips: Choose a trolley replacement that is compatible with your Craftsman model. Replacements typically include the rail and trolley, making it easy to install as a single unit.

How to Identify the Right Replacement Parts

Finding the correct Sears Craftsman Garage Door Opener Replacement Parts requires knowing your model number, which is typically located on the opener’s motor housing. Sears offers parts lists for various Craftsman models, allowing you to cross-reference the part number and description.

Check the Craftsman Model Number

Your garage door opener’s model number will help you find compatible parts. You can usually find this number on a sticker located on the back or side of the motor unit.

Use the Sears Parts Direct Website

Sears Parts Direct offers an online catalog where you can search for parts by entering the model number. The website displays available parts, prices, and descriptions, making it easy to find the exact part you need.

Consult the User Manual

Your Craftsman garage door opener manual often includes a parts list that will guide you to compatible replacements. It can also be a valuable resource for installation instructions, troubleshooting tips, and safety information.


DIY Installation Tips for Sears Craftsman Replacement Parts

Once you’ve found the right parts, follow these tips for a smooth installation:

Gather the Necessary Tools

For most repairs, you’ll need basic tools such as a screwdriver set, pliers, and possibly a wrench. Ensure you have these on hand before starting your repair.

Follow Safety Precautions

Working on a garage door opener involves electricity and mechanical parts, so safety is essential. Always unplug the opener before working on it to prevent accidental operation.

Follow Installation Instructions

If you’re installing a more complex part, like a new circuit board or rail assembly, refer to the installation instructions provided by Craftsman or Sears. Take it step-by-step, and don’t rush the process.


Maintenance Tips to Prolong the Life of Your Craftsman Garage Door Opener

Proper maintenance can reduce the need for frequent replacements. Here are a few tips:

Regularly Inspect and Clean the Tracks

Dirt and debris can accumulate in the tracks, causing strain on the opener. Clean the tracks every few months to prevent buildup.

Lubricate Moving Parts

Use garage door lubricant on the chain or belt, trolley, hinges, and rollers. Avoid using standard oil, which can attract dust and debris.

Test the Safety Reversal System

Periodically test the safety sensors by placing an object in the door’s path. The door should automatically reverse. If it doesn’t, check the sensors for alignment or consider replacing them if they’re damaged.


When to Seek Professional Help

While many parts are easy to replace on your own, some issues may require professional assistance, particularly if they involve electrical components or structural repairs. Consider hiring a technician if:

  • The Circuit Board Needs Replacement: This may require knowledge of electrical components.
  • The Motor Is Failing: A failing motor might require a complete opener replacement.
  • The Opener Has Frequent Issues: If your opener experiences frequent breakdowns despite new parts, it may be time to replace the entire unit.

Conclusion

Replacing Sears Craftsman Garage Door Opener Replacement Parts can extend the life of your garage door opener and ensure smooth operation. By understanding the components and knowing when to replace them, you can avoid costly repairs and downtime. Whether you’re dealing with a broken remote, worn-out gear, or faulty sensors, finding and installing the right parts can be a straightforward process.

Following this guide, you’ll have the tools and knowledge needed to maintain your Craftsman opener effectively. Don’t hesitate to consult a professional for complex repairs, but with the right resources, most replacements are manageable as DIY projects.

Craftsman Garage Door Opener Troubleshooting Manual: A Comprehensive Guide for Common Issues

Craftsman Garage Door Opener Troubleshooting Manual

A Craftsman garage door opener is a reliable tool that makes entering and exiting your garage effortless. However, like any mechanical device, it may occasionally run into issues that require troubleshooting. This guide serves as a Craftsman Garage Door Opener Troubleshooting Manual, covering the most common issues and providing solutions to get your garage door opener back to working efficiently.

Craftsman Garage Door Opener Troubleshooting Manual

Whether you’re dealing with unresponsive remotes, inconsistent door movements, or strange noises, this article will walk you through diagnosing and resolving various problems. Equipped with the right information, you can fix most issues yourself without needing a technician.


Understanding the Basics of Your Craftsman Garage Door Opener

Before diving into troubleshooting, it’s essential to understand the main components of your Craftsman garage door opener:

  • Motor Unit: Powers the garage door opener, lifting or lowering the door.
  • Remote and Wall Controls: Operate the door remotely or via wall-mounted controls.
  • Safety Sensors: Located near the bottom of the door, these sensors prevent the door from closing if an object is detected in its path.
  • Chain or Belt Drive: Connects the motor to the door, controlling its movement.

This knowledge will help you follow the Craftsman Garage Door Opener Troubleshooting Manual steps effectively.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


Common Issues and Solutions

1. The Garage Door Won’t Close

One of the most frequently encountered issues is when the garage door refuses to close. If your garage door won’t close all the way or reverses immediately, follow these troubleshooting steps:

Check the Safety Sensors

The safety sensors prevent the door from closing on objects. If misaligned or blocked, they could prevent the door from closing.

  • Inspect Sensor Alignment: The LED lights on each sensor should be steady. If they’re blinking, adjust them until they’re aligned, indicated by a solid light.
  • Remove Obstructions: Clear any debris around the sensors, which could interfere with their function.
  • Clean the Sensors: Dust on the sensor lenses can cause alignment issues. Wipe them gently with a soft cloth.

Adjust the Travel Limits

Your Craftsman garage door opener has travel limit settings that control how far the door moves. If improperly set, it may prevent the door from closing fully.

  • Locate the Adjustment Screws: Refer to your manual to locate the up and down travel limit screws.
  • Turn the Screws: Turn the down-limit screw to adjust the closing limit. Test the door after each adjustment to ensure proper closure.

2. The Remote Control Isn’t Working

If the remote control for your Craftsman garage door opener isn’t working, the issue could stem from various causes:

Replace the Batteries

One of the simplest solutions is to replace the batteries, as depleted batteries are a common issue.

  • Open the Remote: Check your remote for battery replacement instructions.
  • Install New Batteries: Ensure they’re correctly placed. Test the remote to see if this resolves the issue.

Reprogram the Remote

Occasionally, the remote may lose its programming, especially after power outages.

  • Press the Learn Button: Locate the “Learn” button on the motor unit and press it until the indicator light turns on.
  • Press Remote Button: Within 30 seconds, press and hold the button on your remote. The light on the motor unit will blink, indicating successful programming.

3. The Door Reverses Before Closing Completely

If your door reverses direction before hitting the ground, it may be due to an issue with the force settings:

Adjust the Close Force

The close force setting determines how much force is used to close the door.

  • Locate the Force Adjustment Dial: Consult your Craftsman Garage Door Opener Troubleshooting Manual for the force adjustment location.
  • Turn the Dial: Increase the closing force gradually until the door closes completely without reversing.

Inspect the Tracks and Rollers

Sometimes, dirt or debris in the tracks or rollers can cause resistance that triggers the opener to reverse.

  • Clean the Tracks and Rollers: Wipe down both the tracks and rollers to ensure smooth operation.
  • Lubricate Moving Parts: Use a garage door lubricant to lubricate the rollers, hinges, and other moving parts to reduce friction.

Craftsman Garage Door Opener Troubleshooting Manual for Flashing Lights

Craftsman garage door openers use a flashing light system to indicate issues. Here’s how to interpret these signals and troubleshoot accordingly.

4. Flashing Light Codes

Different numbers of flashes signal specific issues. Refer to your Craftsman Garage Door Opener Troubleshooting Manual for precise guidance on interpreting these flashes:

10 Flashes: Sensor Issues

If the light flashes 10 times, there’s likely a problem with the safety sensors.

  • Check Sensor Alignment: As mentioned, misaligned sensors cause this issue.
  • Replace Faulty Sensors: If alignment doesn’t help, the sensors may be damaged and need replacement.

5 Flashes: Circuit Board Issues

Five flashes typically indicate a circuit board problem.

  • Reset the Opener: Unplug it for a minute, then plug it back in. This can sometimes reset minor circuit board issues.
  • Contact a Professional: If the issue persists, it may require a professional to inspect and replace the circuit board.

5. Garage Door Opener Makes Unusual Sounds

Strange noises can indicate issues that need immediate attention. Here’s how to diagnose the most common sounds:

Grinding or Squealing

Grinding sounds often point to worn gears or belts.

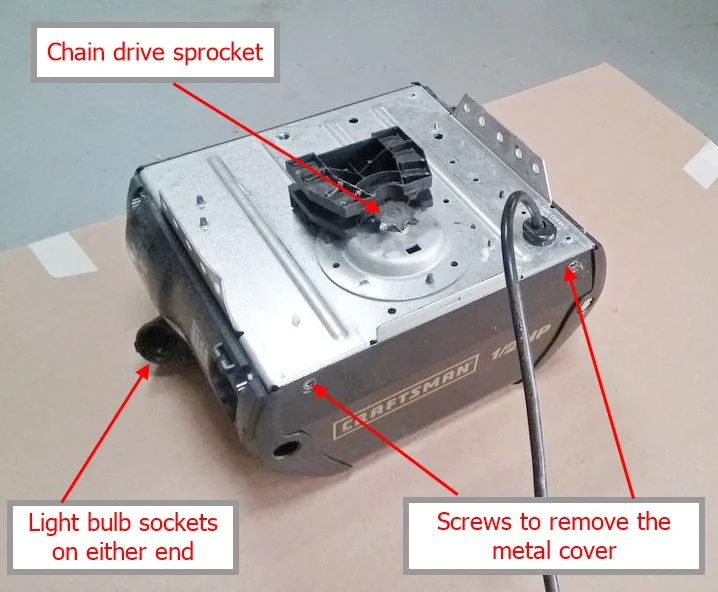

  • Inspect the Drive Mechanism: Open the motor unit and check for any visible wear or damage on the gears or belt.
  • Replace Worn Parts: Many Craftsman models offer replacement gear kits.

Rattling or Vibrating

Rattling noises could indicate loose hardware.

  • Tighten All Bolts and Screws: Carefully tighten all hardware associated with the motor unit and mounting bracket.
  • Check the Mounting Bracket: If the opener is not securely mounted, it can cause rattling noises during operation.

Preventative Maintenance for Craftsman Garage Door Openers

Regular maintenance can prevent many common issues:

Clean and Lubricate the Tracks and Rollers

Dirt buildup in the tracks can strain the opener. Clean these parts regularly, and apply lubricant for smoother operation.

Test the Safety Reversal System

Place a small object in the path of the door and attempt to close it. If the door doesn’t reverse, adjust the travel limits or contact a professional.

Inspect the Drive Belt or Chain

If you have a belt- or chain-driven opener, check for wear and tension. Tighten any loose parts and replace worn components.

Test and Adjust Settings Periodically

Travel limits and force settings may need occasional adjustments, especially after several years of use.


When to Call a Professional

If you’ve tried all troubleshooting steps and still face issues, it may be time to call a technician. Professional help may be necessary for:

  • Persistent circuit board errors
  • Electrical wiring issues
  • Significant motor or gear problems

A professional will have the necessary tools and expertise to safely diagnose and resolve these complex problems.


Conclusion

This Craftsman Garage Door Opener Troubleshooting Manual offers solutions for a wide range of common problems. By addressing sensor alignment, replacing remote batteries, adjusting force settings, and interpreting flashing lights, you can resolve most issues independently. Regular maintenance—such as cleaning tracks, lubricating parts, and testing safety features—will also keep your opener running smoothly.

However, if issues persist despite your best efforts, don’t hesitate to reach out to a professional. Craftsman garage door openers are built to last, and with the right care and troubleshooting, they’ll continue to serve your household reliably.

Craftsman Garage Door Opener Troubleshooting Flashing Light 10 Times: Causes and Solutions

Craftsman Garage Door Opener Troubleshooting Flashing Light 10 Times

If you’re dealing with a Craftsman garage door opener flashing light 10 times, it usually indicates a problem that needs immediate attention. Craftsman garage door openers use flashing light patterns as diagnostic codes to help users identify specific issues with the system. The 10-flash signal often points to a safety sensor problem, but other factors may also be involved. This guide provides a comprehensive troubleshooting approach for resolving the issue and getting your garage door functioning properly.

Craftsman Garage Door Opener Troubleshooting Flashing Light 10 Times

Craftsman Garage Door Opener Troubleshooting Flashing Light 10 Times: Understanding the Basics

The flashing light system on Craftsman garage door openers is an essential part of diagnosing and resolving operational problems. When the light flashes 10 times, it usually suggests a problem with the safety sensors, a vital feature that prevents the door from closing if there’s an obstruction in its path. However, there may be other causes that contribute to this issue. Let’s look into the potential reasons behind the 10-flash signal and how to troubleshoot each one.


Common Causes of the 10-Flash Error

1. Misaligned Safety Sensors

One of the most common reasons for a Craftsman garage door opener flashing light 10 times is misaligned or blocked safety sensors. These sensors, positioned at the bottom of each side of the door, send a beam across the doorway. If the beam is broken, the door won’t close, ensuring safety for people, pets, or objects in the way.

2. Faulty or Damaged Wiring

Wiring issues, such as loose connections or damaged wires, can disrupt communication between the sensors and the opener. This problem may result in the garage door opener misinterpreting the sensor signals, leading to the 10-flash error.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

3. Sensor Obstruction

Debris or objects blocking the sensors can also lead to the 10-flash error code. Even a small obstruction, such as dust, spider webs, or leaves, can interfere with the sensor’s alignment and cause the opener to refuse to close.

4. Sunlight Interference

Direct sunlight hitting one or both sensors can also trigger a 10-flash error. Bright sunlight can interfere with the sensor beam, making it seem like the beam is broken even when there’s no actual obstruction.

5. Faulty or Burned Out Sensors

If the sensors are old or malfunctioning, they may no longer work as intended. In this case, replacing the sensors could be the best solution to restore your garage door opener’s function.


Craftsman Garage Door Opener Troubleshooting Flashing Light 10 Times: Step-by-Step Solutions

Now that we’ve covered the common causes, let’s discuss how to troubleshoot each potential issue to fix your garage door opener.

Step 1: Check and Align the Safety Sensors

Misalignment is one of the main causes of the 10-flash error, so let’s start by ensuring the sensors are correctly aligned.

  • Locate the sensors: They are mounted near the ground on either side of the garage door tracks.
  • Inspect the indicator lights: Most Craftsman sensors have small LED indicator lights. When properly aligned, both lights should be on.
  • Adjust the alignment: If one or both lights are off or blinking, slightly adjust the sensors until the lights remain steady. When the sensors are aligned, test the door by closing it again.

Step 2: Clear Any Obstructions from the Sensor Path

Even a small obstruction can cause the Craftsman garage door opener to flash 10 times.

  • Check for debris: Dust, dirt, cobwebs, or small objects may block the sensors.
  • Wipe the sensors: Use a soft, clean cloth to wipe away any dust or dirt on the sensor lenses.
  • Check the surrounding area: Make sure nothing is within a few inches of the sensors to avoid accidental interference.

Step 3: Inspect and Repair Sensor Wiring

Sometimes, loose or damaged wiring can prevent the sensors from functioning correctly. Here’s how to address this issue:

  • Inspect the wires: Look for visible damage, such as fraying or pinching.
  • Check the connections: Ensure the wires are securely connected to both the sensors and the opener unit. Loose connections can disrupt communication.
  • Reattach or replace damaged wires: If the wires are severely damaged, consider replacing them. Otherwise, securely reattach them.

If the wiring was the cause, fixing it should stop the opener light from flashing 10 times.

Step 4: Test for Sunlight Interference

Bright sunlight can mimic an obstruction, especially during certain times of day. Here’s how to manage this problem:

  • Shade the sensors: Try using an object to temporarily block direct sunlight on the sensors.
  • Use sensor hoods: Some Craftsman models offer sun shields or sensor hoods to prevent sunlight interference. These are available from garage door retailers or online.
  • Move objects if necessary: If there are reflective surfaces causing the problem, rearrange or remove them.

After shading the sensors, test the garage door to see if it closes properly.

Step 5: Replace Faulty Sensors

If none of the above solutions resolve the issue, you may be dealing with faulty sensors that need replacement. Here’s how to proceed:

  • Turn off the power: Disconnect the opener from power to ensure safe handling of the sensors.
  • Remove the old sensors: Unplug the sensors from their mounting brackets.
  • Install new sensors: Purchase replacement sensors compatible with your Craftsman model. Attach them to the mounting brackets and reconnect the wiring.
  • Align the sensors: Make sure the new sensors are correctly aligned to prevent the 10-flash error from reoccurring.

Preventative Maintenance Tips for Craftsman Garage Door Openers

Regular maintenance can help prevent issues with your Craftsman garage door opener and avoid unexpected problems. Here are a few maintenance tips to keep your opener in top condition:

Clean and Inspect Sensors Monthly

Dust and debris can easily accumulate on the sensors. Wipe them clean with a soft cloth and inspect them regularly to ensure they’re working correctly.

Lubricate Moving Parts

Regularly lubricating hinges, rollers, and tracks will help the door operate smoothly. This reduces strain on the opener, extending its lifespan.

Test the Reversal System Periodically

The auto-reverse feature is critical for safety. Test it every few months by placing a small object in the door’s path to ensure it reverses properly upon contact.

Check for Sunlight Interference

If sunlight is frequently interfering with your sensors, consider positioning shields permanently to avoid repeated troubleshooting.


When to Call a Professional

If you’ve tried all troubleshooting steps and the 10-flash issue persists, it may be time to contact a garage door technician. A professional will have the tools and expertise needed to diagnose and repair complex issues with your garage door opener. Additionally, if you notice any of the following, it’s best to seek professional help:

  • Unusual sounds from the motor
  • Loose or frayed wiring
  • Consistent sensor malfunctions

Conclusion

A Craftsman garage door opener flashing light 10 times can be an inconvenient problem, but it often has straightforward solutions. Whether the cause is sensor alignment, wiring issues, sunlight interference, or faulty components, this guide has provided practical steps for addressing the problem. By checking sensor alignment, clearing obstructions, inspecting wiring, and addressing sunlight interference, you can likely resolve the issue on your own.

However, if the problem persists or if the sensors appear damaged, calling a professional may be necessary. With regular maintenance, such as cleaning the sensors and testing the reversal system, you can help prevent similar issues from occurring in the future.

Craftsman Garage Door Opener Troubleshooting Won’t Close: Quick Fixes and Solutions

Craftsman Garage Door Opener Troubleshooting Won'T Close

A garage door that refuses to close can be frustrating and inconvenient, especially if you rely on your garage as a primary entrance to your home. If you’re facing this problem with your Craftsman garage door opener, there are several troubleshooting steps you can take to identify the cause and resolve it. This article covers common issues and solutions for Craftsman garage door opener troubleshooting when it won’t close. By following these steps, you’ll be able to get your door back in working order.

Craftsman Garage Door Opener Troubleshooting Won'T Close

Craftsman Garage Door Opener Troubleshooting Won’t Close: Common Causes

Garage doors not closing properly is a common problem that often stems from a few key issues, including sensor alignment, remote control interference, motor problems, or wiring issues. Let’s start by exploring some typical reasons behind this issue.

1. Misaligned or Blocked Safety Sensors

The safety sensors are an essential feature for any garage door opener, especially Craftsman models. They prevent the door from closing if there’s an obstruction in its path, ensuring the safety of anyone or anything that might be in the way. However, if these sensors are misaligned or obstructed, they can stop the door from closing even when there’s no actual obstacle.

2. Issues with the Garage Door Opener Settings

Sometimes, the opener’s settings may be incorrect or need resetting. Craftsman garage door openers have a limit switch that determines how far the door closes, and if this setting is off, the door may refuse to close all the way.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

3. Malfunctioning Remote Control or Wall Control Panel

If the remote or wall control panel isn’t working correctly, your garage door may not receive the signal to close. This issue could be due to battery problems, damaged buttons, or interference with other devices.

4. Problems with the Tracks or Rollers

If the garage door tracks are misaligned, or if the rollers are worn out, the door may struggle to close or stop mid-way. Regular wear and tear or lack of maintenance often lead to these issues.

5. Issues with the Garage Door Opener Motor

A faulty motor can also be the reason behind your Craftsman garage door opener not closing. Over time, the motor may weaken or malfunction, which prevents the opener from fully closing the door.


Craftsman Garage Door Opener Troubleshooting Won’t Close: Step-by-Step Solutions

In this section, we’ll discuss practical troubleshooting steps for each of the common problems listed above. Let’s explore each step in detail to help you resolve the issue.

Step 1: Check and Align the Safety Sensors

The safety sensors, located near the bottom of each side of the garage door track, play a critical role in preventing the door from closing if something is in its path. Here’s how to ensure they’re working correctly:

  • Inspect the sensor lights: Each sensor should have a small light, often red or green. If one or both of these lights are off, it could mean the sensors are misaligned.
  • Clear any obstructions: Dirt, cobwebs, or debris can block the sensors, so make sure the path between them is clear.
  • Adjust the alignment: Try adjusting the sensors until the lights on both sides are steady. Misalignment often causes one or both lights to blink or go off entirely.

When the sensors are aligned correctly, try closing the door again. If it still won’t close, proceed to the next step.

Step 2: Inspect and Reset the Limit Switch Settings

The limit switch on your Craftsman garage door opener controls how far the door travels when closing. Here’s how to adjust it:

  • Locate the limit adjustment screws: On Craftsman models, these screws are usually on the side or back of the motor unit.
  • Turn the down limit screw: Turning it slightly to the right will make the door travel farther when closing. Test the door after making small adjustments to ensure it closes completely without reversing.
  • Reset the opener if necessary: If the problem persists, reset your Craftsman garage door opener by following the manufacturer’s instructions.

This adjustment can often fix doors that stop before reaching the ground.

Step 3: Check the Remote Control and Wall Panel

A simple problem with the remote or wall panel could be preventing your door from closing. Here’s how to troubleshoot this issue:

  • Check the remote batteries: Low batteries are a common cause of remote control failure. Replace them with fresh ones and test the door again.
  • Inspect the wall panel: If the wall control panel isn’t working, check for loose wiring or other damage.
  • Try the manual button: Use the manual close button on the garage door opener itself. If the door closes when you press this button, the issue likely lies with the remote or wall panel.

If the remote control or wall panel was causing the problem, this should resolve it.

Step 4: Inspect the Tracks and Rollers

Faulty or misaligned tracks and rollers can interfere with smooth operation. Here’s how to check them:

  • Inspect the tracks for obstructions: Dirt, rust, or small objects lodged in the track can cause the door to stop closing.
  • Check the rollers: Ensure they’re not worn out or misaligned. If the rollers are damaged, replacing them can often resolve the issue.
  • Align the tracks: Use a level to check that the tracks are straight. If they’re not, loosen the mounting brackets, adjust the tracks, and retighten the brackets.

This step can help eliminate any physical barriers that may be preventing the door from closing.

Step 5: Examine the Garage Door Opener Motor

If none of the above steps resolve the issue, the problem may lie with the motor. Here’s what to do:

  • Listen for unusual sounds: Grinding or humming noises can indicate a motor issue.
  • Inspect the motor unit: Look for visible signs of damage, such as frayed wires or a burned-out capacitor.
  • Call a professional: If you suspect a motor problem, it’s best to contact a garage door technician to handle repairs, as DIY fixes may void your warranty or cause further damage.

Maintenance Tips for Craftsman Garage Door Openers

Regular maintenance can help prevent issues with your Craftsman garage door opener and keep it functioning smoothly.

Clean the Sensors Regularly

Dust and debris can interfere with the sensor’s function. Cleaning them periodically can prevent many issues related to the door not closing.

Lubricate Moving Parts

Lubricating the hinges, rollers, and tracks can keep your garage door operating smoothly. Make sure to use a lubricant designed for garage doors.

Test the Reversal System

To ensure safety, test the auto-reverse feature every few months. Place a small object, such as a block of wood, under the door. If it doesn’t reverse upon contact, call a technician to adjust the settings.


When to Call a Professional

If you’ve followed all the troubleshooting steps and the door still won’t close, it may be time to call a professional. A qualified garage door technician can accurately diagnose the issue and carry out necessary repairs safely. Additionally, if you notice any of the following, it’s best to seek professional help:

  • The motor makes unusual noises or overheats.
  • The door opens and closes sporadically.
  • Wiring issues are suspected.

Conclusion

When your Craftsman garage door opener won’t close, it can be inconvenient and even compromise your home’s security. By following these troubleshooting steps—checking the sensors, adjusting the limit settings, inspecting the remote control, and ensuring the tracks and rollers are clear—you can often resolve the issue without needing professional help.

However, if these steps don’t solve the problem, it may be a sign of a deeper issue that requires expert assistance. Regular maintenance, including sensor cleaning and part lubrication, will also help keep your Craftsman garage door opener running smoothly and avoid future problems.

By staying proactive and addressing issues promptly, you can enjoy a reliable and efficient garage door system for years to come.

Craftsman Garage Door Opener Training Button: A Comprehensive Guide

Craftsman Garage Door Opener Training Button

The Craftsman Garage Door Opener is a popular choice for homeowners due to its reliability and innovative features. One critical component that many users might overlook is the Craftsman Garage Door Opener Training Button. This button plays a vital role in the functionality of your garage door opener, enabling you to program and manage your garage door remote controls effectively.

Craftsman Garage Door Opener Training Button

In this article, we will explore the purpose and function of the Craftsman Garage Door Opener Training Button, the process of programming your garage door opener, troubleshooting common issues, and tips for maintaining your opener. Understanding how to use this feature will enhance your experience with your Craftsman garage door opener, making your life easier and more convenient.


What is the Craftsman Garage Door Opener Training Button?

The Craftsman Garage Door Opener Training Button is specifically designed to help you set up and program your garage door remote controls and keypads. This button, typically located on the motor unit of the garage door opener, allows for a straightforward connection between the opener and various remote devices, ensuring that you can operate your garage door with ease.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

Purpose of the Training Button

  1. Programming Remotes: The primary function of the training button is to enable you to pair new remotes with your garage door opener.
  2. Setting Up Keypads: The training button can also be used to connect wireless keypads, providing an additional entry option.
  3. Resetting the System: If you ever need to reset your garage door opener to its factory settings, the training button can assist in this process.

By understanding how to effectively use the Craftsman Garage Door Opener Training Button, you can maximize the functionality of your garage door system.


How to Locate the Craftsman Garage Door Opener Training Button

To find the training button on your Craftsman Garage Door Opener:

  1. Check the Manual: The user manual for your specific model will typically indicate where the training button is located.
  2. Motor Unit Location: In most cases, the training button is found on the back or side of the motor unit, which is usually mounted on the ceiling of your garage.
  3. Look for the LED Indicator: When you press the training button, an LED light often illuminates, signaling that the opener is in programming mode.

Step-by-Step Guide to Using the Craftsman Garage Door Opener Training Button

Now that you know what the Craftsman Garage Door Opener Training Button is and where to find it, let’s dive into how to use it effectively.

Step 1: Prepare Your Garage Door Opener

  1. Ensure Power Supply: Make sure your garage door opener is plugged in and receiving power.
  2. Check the Door’s Position: The garage door should be closed before you start the programming process.

Step 2: Access the Training Button

  1. Locate the Training Button: As discussed earlier, find the training button on the motor unit.
  2. Press the Button: Press and release the training button. You should see an LED light turn on, indicating that the opener is ready to be programmed.

Step 3: Program Your Remote Control

  1. Prepare Your Remote: Have your garage door remote control ready for programming.
  2. Press the Button on the Remote: Within 30 seconds of pressing the training button, press the button on your remote control that you want to use to open the garage door.
  3. Wait for Confirmation: The LED light on the motor unit should blink, indicating that the remote has been successfully programmed. If the light stays on, you may need to press the remote button again.

Step 4: Test the Remote

  1. Test Functionality: After programming, test the remote by pressing the button to see if the garage door opens and closes.
  2. Repeat If Necessary: If the door does not respond, repeat the programming steps.

Programming a Wireless Keypad with the Training Button

In addition to programming remotes, you can also use the Craftsman Garage Door Opener Training Button to set up a wireless keypad. Here’s how:

Step 1: Prepare the Keypad

  1. Insert Batteries: Ensure that your wireless keypad has fresh batteries installed.
  2. Clear Previous Codes: If the keypad has been previously programmed, consult the manual to clear old codes.

Step 2: Access the Training Button

  1. Follow Steps for Accessing the Training Button: As outlined earlier, press the training button on the motor unit to activate programming mode.

Step 3: Program the Keypad

  1. Enter the Desired Code: On the keypad, enter the desired code you want to use.
  2. Press the Enter Key: After entering the code, press the “Enter” key on the keypad.
  3. Watch for LED Indicator: The LED on the motor unit should blink, confirming that the keypad has been programmed successfully.

Step 4: Test the Keypad

  1. Test the Functionality: Use the keypad to open and close the garage door to ensure it is working properly.
  2. Repeat If Needed: If it does not work, recheck the code and repeat the steps.

Troubleshooting Common Issues with the Training Button

Even with clear instructions, sometimes things don’t go as planned. Here are some common issues and solutions when using the Craftsman Garage Door Opener Training Button:

Issue 1: The Remote Won’t Program

  • Solution: Ensure you are within range of the garage door opener when trying to program the remote. Check the battery in the remote and replace it if necessary. Also, ensure you are pressing the training button and the remote button in quick succession.

Issue 2: The Garage Door Doesn’t Respond

  • Solution: Confirm that the garage door is not blocked and that all sensors are working correctly. Check for any obstructions that might be preventing the door from moving.

Issue 3: LED Light Doesn’t Illuminate

  • Solution: If the LED light doesn’t turn on when you press the training button, check the power supply to the garage door opener. Ensure it is plugged in and functioning.

Maintenance Tips for Your Craftsman Garage Door Opener

To ensure your Craftsman Garage Door Opener operates smoothly, regular maintenance is essential. Here are some tips to help you maintain your opener:

  1. Lubricate Moving Parts: Regularly lubricate the tracks, rollers, and chains to reduce friction and wear.
  2. Inspect the Sensors: Check the safety sensors at the bottom of the garage door tracks. Ensure they are clean and aligned correctly to prevent the door from malfunctioning.
  3. Test the Reverse Mechanism: Periodically test the reverse mechanism by placing a small object in the path of the door to ensure it reverses upon contact.
  4. Keep the Remote in Good Condition: Ensure the remote is in a safe place to avoid damage and replace batteries as needed.

Conclusion

The Craftsman Garage Door Opener Training Button is a crucial feature that enhances the functionality of your garage door opener. By understanding how to use this button, you can easily program remotes and keypads, ensuring convenient access to your garage.

With the step-by-step guide provided in this article, you should feel confident in programming your devices and troubleshooting common issues. Remember that regular maintenance is key to ensuring that your garage door opener operates efficiently for years to come.

Taking the time to familiarize yourself with the Craftsman Garage Door Opener Training Button and its functions can save you time and frustration in the long run, providing a seamless experience when accessing your garage.

If you encounter difficulties, always refer to your user manual or contact customer support for assistance. Happy programming!

How to Easily Pair Your Craftsman Garage Door Opener to Your Car for Seamless Access

Craftsman Garage Door Opener Pair To Car

Pairing your garage door opener to your car can be incredibly convenient, allowing you to open or close your garage door from within your vehicle with the simple push of a button. Craftsman garage door openers are among the most popular brands for homeowners due to their reliability and ease of use. Learning how to set up the Craftsman Garage Door Opener Pair To Car can simplify your daily routine, giving you secure, instant access to your garage.

Craftsman Garage Door Opener Pair To Car

In this guide, we will cover step-by-step instructions on pairing your Craftsman garage door opener to your car, troubleshooting tips, and maintenance advice to keep your system running smoothly. Whether you have a new model or an older Craftsman opener, these instructions can help you set up your system in no time.


Why Pairing a Craftsman Garage Door Opener to Your Car Is Convenient

Having your garage door opener connected to your car is more than a luxury—it’s a practical solution that enhances both convenience and security. Many Craftsman openers are compatible with modern car systems, meaning you can connect your car to the opener through built-in garage controls. This feature not only saves time but also reduces the need for separate remotes, which are easy to misplace.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

Pairing your Craftsman garage door opener to your car can provide the following benefits:

  1. Hands-free Access: A paired garage opener means you don’t have to juggle remote controls.
  2. Enhanced Security: Craftsman openers typically use rolling codes, which change each time you use the remote, reducing the risk of hacking.
  3. Ease of Use: With a paired system, your car’s control button can open or close the garage, adding convenience to your daily commute.

Now, let’s go over the steps for pairing your Craftsman Garage Door Opener to Your Car.


Step-by-Step Guide to Pairing Craftsman Garage Door Opener to Car

Before beginning, ensure you have access to your garage door opener’s motor unit (typically installed on the ceiling of your garage) and your car’s owner manual. Each car brand may have slightly different procedures, so consulting the manual can be helpful. Here are the general steps to follow:

Step 1: Locate the “Learn” Button on the Craftsman Garage Door Opener

  1. Find the “Learn” button on the back of your Craftsman garage door opener’s motor unit. The button is usually near the antenna wire, which is often a small, thin wire hanging from the motor.
  2. The “Learn” button can be different colors depending on the model—typically, it’s red, yellow, or purple. Knowing the color can help with troubleshooting later.

Step 2: Press the “Learn” Button

  1. Press the “Learn” button on the motor unit. After pressing it, you’ll see an LED light activate, which means the unit is ready to pair.
  2. You have approximately 30 seconds to complete the pairing process with your car.

Step 3: Program Your Car’s Garage Door Opener Button

  1. Get into your car and locate the garage door opener buttons. They’re usually located near the overhead console, on the sun visor, or on the rearview mirror.
  2. Press and hold the button you want to program in your car. Hold it down until the garage door moves. If it works, you’ve successfully paired your Craftsman garage door opener to your car.
  3. If the door doesn’t move, keep holding the button for about 10-15 seconds to give it time to connect with the motor unit.

Troubleshooting Common Issues with Craftsman Garage Door Opener Pairing

If you followed the steps above and your Craftsman Garage Door Opener Pair To Car is still not working, don’t worry. Many factors can affect the pairing process. Here are a few common issues and how to resolve them:

Check the Frequency Compatibility

Some older Craftsman garage door openers use a different frequency than newer car models, which may prevent pairing. Check your Craftsman opener’s frequency in the manual or on the motor unit and compare it with your car’s garage door system.

Reboot and Retry

In some cases, simply resetting the system can solve the issue. Turn off your garage door opener unit, wait a minute, and turn it back on before trying to pair again.

Replace Remote Batteries

If your Craftsman garage door opener uses an external remote and the pairing is unsuccessful, try replacing the batteries in your remote. Low batteries can impact the connection between the motor unit and your car.

Clear Previous Pairing Information

If the system has been previously paired to another car or remote, this might interfere with your current pairing attempt. To clear previous information, press and hold the “Learn” button for approximately six seconds until the LED light turns off.


Safety Tips for Using a Paired Craftsman Garage Door Opener

Once you’ve successfully paired your Craftsman garage door opener to your car, it’s important to keep safety in mind. Here are a few precautions and best practices:

  1. Regularly Inspect the System: Check for any unusual noises, slower-than-usual operation, or visible wear. This can indicate it’s time for maintenance or replacement of parts.
  2. Secure the Garage Door Remote: If you’re still using the handheld remote as a backup, avoid leaving it in the car. If a thief gains access to your car, they might also get into your home.
  3. Check Battery Life: Periodically check the battery life of your Craftsman remote to avoid interruption.
  4. Keep Away from Children: Garage doors are heavy and powerful. Ensure that the control system isn’t accessible to children to prevent accidents.

Frequently Asked Questions (FAQ)

Q1: Can I pair multiple cars with one Craftsman garage door opener?

Yes, most Craftsman garage door openers can pair with multiple vehicles. Repeat the pairing process with each car you want to add.

Q2: Do Craftsman garage door openers work with all car brands?

Most Craftsman garage door openers are compatible with car brands that support Homelink or Car2U systems, such as Toyota, Ford, and GM vehicles. Check your car’s manual to confirm compatibility.

Q3: What should I do if the pairing process is successful but the garage door doesn’t open?

If the garage door opener pairs but fails to open or close, this might be a signal issue. Check that the antenna on the motor unit isn’t damaged or blocked. You might also need to reset the system and try pairing again.

Q4: How do I reset my Craftsman garage door opener if I move to a new house?

To reset your Craftsman garage door opener, press and hold the “Learn” button until the LED light turns off. This clears all previous pairings, allowing you to set up the system as if it were new.


Final Thoughts on Pairing Your Craftsman Garage Door Opener to Car

Pairing your Craftsman Garage Door Opener to Your Car can enhance your daily convenience and add an extra layer of security to your home. With a paired opener, you can safely and quickly access your garage, minimizing the need to search for remotes and ensuring that you’re using the latest technology to protect your property.

By following the steps outlined above and troubleshooting if necessary, you should have no issue getting your Craftsman garage door opener paired to your car. Remember to take the necessary safety precautions, check compatibility, and review the steps in this guide if you experience any issues.

Universal Craftsman Garage Door Opener: Features, Installation, and Troubleshooting

Universal Craftsman Garage Door Opener

The Universal Craftsman Garage Door Opener is a reliable, adaptable solution for homeowners looking for an easy-to-use, efficient garage door opener. Known for its versatility and compatibility with various garage door brands, the Craftsman Universal model simplifies access to your garage while adding an extra layer of security. With a sleek design, innovative technology, and user-friendly features, this opener is a popular choice for both new garage doors and replacements for older systems.

Universal Craftsman Garage Door Opener

In this comprehensive guide, we will explore the benefits of the Universal Craftsman Garage Door Opener, how to install and set it up, and offer troubleshooting tips to ensure optimal performance. If you’re interested in upgrading your garage door opener or switching to a Craftsman model, read on to find out all you need to know about this versatile device.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


What is a Universal Craftsman Garage Door Opener?

The Universal Craftsman Garage Door Opener is designed to work with most garage door systems, making it a highly flexible choice. Whether you have a Craftsman, LiftMaster, Genie, or another major brand of garage door opener, the universal compatibility means you don’t have to worry about incompatibility issues. With a range of advanced features, it offers dependable functionality while delivering a smoother and quieter operation than many older models.

Key Features of the Universal Craftsman Garage Door Opener

  1. Universal Compatibility: As the name suggests, this opener works with most brands, saving you the hassle of finding specific, often incompatible models.
  2. Enhanced Security: Craftsman includes security features like rolling code technology, which changes the code each time the remote is used, preventing potential break-ins.
  3. Quiet Operation: Many universal models are designed with noise reduction in mind, ideal for homes with attached garages or nearby living spaces.
  4. Battery Backup: Select Craftsman models offer battery backups, ensuring you can still operate your garage door during a power outage.
  5. Smart Home Integration: Newer models are compatible with smart home systems, allowing you to control and monitor the opener from your smartphone.

Why Choose a Universal Craftsman Garage Door Opener?

If you want a system that’s easy to install, compatible with a range of garage doors, and built to last, the Universal Craftsman Garage Door Opener is a smart choice. It’s ideal for both new installations and for those replacing an older or less compatible system.


How to Install a Universal Craftsman Garage Door Opener

Installing the Universal Craftsman Garage Door Opener is straightforward if you follow the correct steps and have the necessary tools. Below is a general guide to help you through the installation process.

Step 1: Gather the Necessary Tools

Before you begin, ensure you have all the required tools, which may include:

  • A drill and drill bits
  • Wrenches
  • Screwdrivers
  • Ladder
  • Measuring tape
  • Safety glasses

Step 2: Set Up the Opener Rail and Motor

  1. Assemble the Rail: Start by assembling the rail that guides the opener’s movement. This often comes in sections that snap or screw together.
  2. Attach the Motor Unit: Secure the motor unit to the assembled rail. This will be the main power source that drives the door opener.

Step 3: Install the Opener on the Garage Ceiling

Using the provided hardware, mount the opener on the ceiling of your garage, centered above the door. Make sure the motor unit is securely fastened to reduce vibrations and maintain a quiet operation.

Step 4: Connect the Door Arm to the Garage Door

Attach the door arm to the garage door itself. This arm is responsible for pushing and pulling the door as the motor operates. Align it carefully to ensure smooth operation without excessive strain on the door or motor.

Step 5: Install the Safety Sensors

Safety sensors are an essential feature of modern garage door openers, preventing the door from closing if there’s an obstruction in the way. Mount the sensors on either side of the garage door at the proper height, typically 6 inches from the ground. Test to ensure they’re aligned correctly, as misaligned sensors can prevent the door from operating.

Step 6: Set Up the Remote Control and Keypad

Many Universal Craftsman Garage Door Openers come with remote controls and optional keypads for outside access. Follow the user manual instructions to program the remote and keypad to communicate with the opener.

Step 7: Test the System

Once everything is set up, test the opener to ensure it functions smoothly. Open and close the garage door a few times, watching for any unusual sounds or resistance. Make adjustments as needed.


Troubleshooting Common Issues with the Universal Craftsman Garage Door Opener

Even with a reliable model like the Universal Craftsman Garage Door Opener, occasional issues may arise. Here are some common problems and their solutions.

Problem 1: The Door Doesn’t Open or Close Properly

If your garage door fails to open or close, check for:

  • Blocked Sensors: Ensure that nothing obstructs the sensors.
  • Remote Batteries: Weak batteries in the remote can cause malfunction. Replace them regularly.
  • Loose Connections: Inspect the wiring to ensure everything is tightly connected.
  • Programming Errors: Reprogram the remote or keypad if communication with the opener has been lost.

Problem 2: The Door Reverses Before Fully Closing

This is often due to misaligned sensors or a problem with the force setting. Check that:

  • Sensors are Properly Aligned: Slight misalignments can disrupt operation.
  • Force Settings are Adjusted: Most Craftsman models allow you to adjust the force sensitivity. Increasing it slightly may solve the problem.

Problem 3: Loud Noises During Operation

If you hear unusual noises:

  • Lubricate Moving Parts: Applying a lubricant to the moving parts can significantly reduce noise.
  • Inspect the Rail and Rollers: Loose parts or worn rollers may be causing the noise. Tighten and replace as necessary.

Problem 4: Remote Control Doesn’t Work Consistently

For remote issues:

  • Check the Battery: Replace it if it’s weak.
  • Reprogram the Remote: If the connection is lost, reprogram it according to the instructions in the user manual.

Choosing the Right Model of Craftsman Universal Garage Door Opener

Craftsman offers several models, each with unique features suited to different needs. Here are a few aspects to consider when choosing the best Universal Craftsman Garage Door Opener for your home:

  1. Drive System: Choose between belt-driven and chain-driven models. Belt-driven models are quieter, making them ideal for attached garages, while chain-driven models are often more economical.
  2. Horsepower: The required horsepower depends on the size and weight of your garage door. Heavier doors require more power for consistent performance.
  3. Smart Features: Many newer models offer smart home integration, which lets you control and monitor the door opener from your smartphone or other devices.
  4. Battery Backup: If you live in an area prone to power outages, consider a model with a battery backup to ensure you can always access your garage.

Tips for Maintaining Your Universal Craftsman Garage Door Opener

Regular maintenance can extend the life of your Craftsman Garage Door Opener and keep it running smoothly. Here are some simple maintenance tips:

  • Lubricate Regularly: Apply lubricant to moving parts every few months to reduce wear and noise.
  • Clean Sensors: Dust and dirt can affect the sensors, so clean them regularly with a soft cloth.
  • Check for Loose Bolts and Screws: Vibrations can loosen bolts and screws over time, so inspect and tighten them as needed.
  • Inspect and Replace Worn Parts: Check the door’s rollers, springs, and cables for wear, and replace any parts showing signs of damage.

Conclusion

The Universal Craftsman Garage Door Opener is an outstanding choice for homeowners seeking a versatile, reliable solution. Its universal compatibility, advanced features, and ease of installation make it suitable for various garage doors and living situations. With regular maintenance and troubleshooting, your Craftsman opener can provide many years of dependable service.

If you’re looking to enhance the security, convenience, and longevity of your garage door, the Universal Craftsman Garage Door Opener is worth considering. Whether you’re upgrading or installing a new system, this universal opener provides the functionality and peace of mind every homeowner deserves.

Vintage Craftsman Parts: Finding, Restoring, and Maintaining Timeless Tools

Vintage Craftsman Parts

Vintage Craftsman tools hold a special place in the world of DIY enthusiasts, collectors, and tool aficionados. These classic tools are not just functional but represent a bygone era of craftsmanship and durability. Finding Vintage Craftsman Parts can help extend the life of these well-crafted tools, allowing users to restore them to their original glory. Whether you own an old Craftsman drill, wrench, or table saw, locating and understanding how to use vintage parts can keep these tools working for years to come.

Vintage Craftsman Parts

In this article, we’ll explore the significance of vintage Craftsman parts, where to find them, tips for restoration, and maintenance practices to ensure your tools remain in peak condition. If you’re passionate about quality tools and enjoy working with timeless pieces, this guide will be a valuable resource.


The Allure of Vintage Craftsman Parts

Vintage Craftsman tools are known for their durability, reliability, and high-quality materials. These tools, originally made by Sears, were crafted with care and precision, often outlasting modern alternatives. For many, they’re more than just tools; they’re collectibles that serve as reminders of an era when things were built to last.

Finding vintage parts for these tools allows owners to continue using their original tools rather than replacing them with newer, often inferior models. Moreover, vintage Craftsman parts can sometimes improve functionality, bringing these classic tools up to modern performance standards without sacrificing their original charm.

Why Choose Vintage Craftsman Parts?

  1. Durability: Older Craftsman tools were made with high-quality materials like solid steel and iron, making them highly durable.
  2. Compatibility: Vintage parts are often a perfect fit for original tools, as they were specifically designed for older models.
  3. Preservation: Keeping original tools in working condition helps preserve a piece of history, and restoring vintage tools can be a rewarding hobby.
  4. Resale Value: Restored vintage tools often have a high resale value, making them worthwhile investments for collectors.

Where to Find Vintage Craftsman Parts

If you’re searching for Vintage Craftsman Parts, there are several great sources to consider, each with unique advantages. From online marketplaces to specialty stores, here’s where you can locate those hard-to-find pieces.

1. Online Marketplaces

eBay and Etsy are two popular online platforms where you can find a vast array of vintage Craftsman parts. These sites offer everything from specific screws and bolts to complete tool parts like motor assemblies or handles. Here are some tips to help you navigate online purchases:

  • Search for Specific Part Numbers: If you know the part number, use it in your search to find a precise match.
  • Check Seller Ratings: Ensure you’re buying from reputable sellers with positive feedback.
  • Compare Prices: Since some vintage parts are rare, prices can vary. Be sure to compare listings to find the best deal.

2. Antique and Thrift Stores

Some antique and thrift stores specialize in tools and machinery, making them ideal places to look for vintage Craftsman parts. These stores may carry individual parts or entire tool sets. The advantage of shopping locally is that you can inspect the parts in person, ensuring they’re in good condition and match your tool specifications.

3. Tool Repair Shops

Tool repair shops often carry vintage tool parts, including those for Craftsman tools. Many shops have been in business for decades and may have spare parts from older models on hand. Visiting these shops allows you to speak with experts who can guide you on the right parts for your specific tool.

4. Online Collectors’ Forums and Communities

Joining online forums and communities dedicated to vintage tools can also be a helpful way to source parts. These communities often have members who buy, sell, or trade parts. Websites like Garage Journal or ToolTalk offer platforms where vintage tool enthusiasts connect and share resources.

5. Sears PartsDirect and Other Retailers

Although Sears no longer manufactures Craftsman tools, their website, Sears PartsDirect, still stocks some parts for older Craftsman tools. If your vintage tool isn’t too old, you may be able to find what you need here. Other hardware retailers, like Ace Hardware, also stock Craftsman tools and may have compatible parts.


How to Restore Tools with Vintage Craftsman Parts

Restoring a vintage tool using authentic Craftsman parts can be a rewarding experience. Here’s a step-by-step guide to help you restore your tool and bring it back to working condition.

Step 1: Disassemble the Tool

Carefully disassemble the tool and inspect each part. Make a list of the components that need replacement or refurbishment. Refer to any diagrams or user manuals you can find to help guide you in the disassembly.

Step 2: Clean Each Component

Over time, dirt and rust can accumulate on metal parts. Use a wire brush to remove surface rust, and soak the parts in a rust remover if necessary. Wipe each part clean and dry them thoroughly before reassembly.

Step 3: Replace Worn or Damaged Parts

Using your Vintage Craftsman Parts, replace any components that are too worn or broken to be restored. Ensure each new part is a proper fit and closely matches the original to maintain the tool’s integrity.

Step 4: Lubricate Moving Parts

Lubrication is essential for tools with moving parts. Apply a small amount of machine oil or grease to moving components like gears, axles, and joints. This will help reduce wear and keep the tool functioning smoothly.

Step 5: Reassemble and Test the Tool

Once all parts are in place, carefully reassemble the tool. Test it to ensure everything works correctly and that all moving parts operate smoothly. Your vintage tool should now be ready for use, restored to its former glory.


Caring for Your Vintage Craftsman Tools

Vintage tools require special care to remain functional and last for many years. Here are some maintenance tips for preserving your restored tools:

  1. Regular Cleaning: After each use, clean your tools to remove dirt and debris. A quick wipe-down can prevent the buildup of rust.
  2. Proper Storage: Store your tools in a dry, climate-controlled environment to protect them from humidity and rust. Using a tool chest or cabinet is ideal.
  3. Periodic Lubrication: Even if you’re not using your vintage tools regularly, it’s a good idea to lubricate them occasionally to prevent rust and ensure smooth operation.
  4. Inspect for Wear: Regularly inspect each tool for signs of wear or damage. If any parts seem worn, replace them promptly to avoid further damage to the tool.

Why Restore and Use Vintage Craftsman Tools?

Restoring vintage Craftsman tools is about more than just functionality. Here’s why enthusiasts and professionals alike are drawn to these timeless tools:

  • Sentimental Value: Many vintage tools are family heirlooms passed down from previous generations, making them irreplaceable.
  • Quality and Craftsmanship: Older Craftsman tools were built to a high standard of quality that’s hard to find today.
  • Eco-Friendly: By restoring and reusing vintage tools, you’re reducing waste and supporting sustainability.
  • Satisfaction: There’s a sense of accomplishment that comes from restoring a tool and bringing it back to life.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


Frequently Asked Questions (FAQs)

1. Can I use modern parts on vintage Craftsman tools?

Some modern parts may work with vintage tools, but it’s generally better to use parts specifically designed for your model. Modern parts may not fit correctly or could affect the tool’s performance.

2. How do I identify the model number of my Craftsman tool?

The model number is often stamped on the tool’s body or nameplate. This number is essential for finding compatible parts.

3. Are vintage Craftsman tools worth collecting?

Yes, vintage Craftsman tools are highly collectible due to their durability and historical value. Many collectors seek out these tools for both their functional and aesthetic appeal.

4. Where can I find manuals or diagrams for vintage tools?

You can often find manuals and diagrams through online communities, eBay, or websites like ManualsLib. These resources can be incredibly helpful when restoring older tools.


Conclusion

Vintage Craftsman parts provide a lifeline for those who want to restore and preserve classic Craftsman tools. With proper care, attention, and the right parts, these tools can remain functional and valuable for generations to come. Whether you’re a collector, a DIY enthusiast, or someone who values high-quality tools, taking the time to find and restore vintage parts can be a rewarding experience.

So, if you’re looking to breathe new life into your old tools, explore the world of Vintage Craftsman Parts and enjoy the process of restoring, maintaining, and celebrating these timeless pieces of craftsmanship.

Craftsman Garage Door Opener Wiring Diagram: A Complete Guide for Installation and Troubleshooting

Craftsman Garage Door Opener Wiring Diagram

If you’re setting up or troubleshooting a Craftsman garage door opener, understanding the Craftsman Garage Door Opener Wiring Diagram is essential. The wiring diagram is like a map that shows how various components connect within the opener system. For DIY enthusiasts and homeowners alike, learning how to read this diagram can simplify installation, streamline maintenance, and improve troubleshooting efforts.

Craftsman Garage Door Opener Wiring Diagram

This guide covers the basics of wiring diagrams for Craftsman garage door openers, explains the components involved, provides step-by-step installation instructions, and includes useful troubleshooting tips. Whether you’re installing a new system or troubleshooting an existing one, this article will give you the knowledge you need to work with your Craftsman garage door opener safely and effectively.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


What is a Craftsman Garage Door Opener Wiring Diagram?

The Craftsman Garage Door Opener Wiring Diagram is a schematic representation of the electrical connections and components within a Craftsman garage door opener. It outlines how wires connect to various parts of the system, such as the motor, sensors, wall control, and safety features. Having a wiring diagram is incredibly helpful for anyone installing or repairing their garage door opener, as it visually organizes the connections required to make the system operate smoothly.

Key Elements Found in a Craftsman Wiring Diagram

  • Power Source: The connection point where the opener gets its power.
  • Motor and Capacitor: Components responsible for powering and regulating door movement.
  • Wall Button and Remote: Control devices that signal the opener to lift or lower the door.
  • Safety Sensors: Infrared sensors placed near the floor to detect objects or people in the door’s path.
  • Limit Switches: Devices that stop the door at the correct open or closed positions.

Understanding these elements in the diagram will make it easier to wire your garage door opener correctly and ensure its safe operation.


The Basics of Reading a Wiring Diagram

Reading a Craftsman Garage Door Opener Wiring Diagram might seem intimidating if you’re new to wiring, but the diagrams are typically straightforward. Diagrams use simple symbols to represent parts and lines to show the wiring paths between them. Here are some basic tips to make reading a wiring diagram easier:

  • Identify Key Symbols: Familiarize yourself with common symbols for components like the motor, sensors, switches, and power source.
  • Trace the Power Flow: Follow the lines from the power source through each component, making sure the path is logical and uninterrupted.
  • Color Coding: Many diagrams use colors to distinguish between wires, such as black for live wires, white for neutral, and green or bare copper for ground.
  • Labels: Pay attention to labels on the diagram that provide specific details for each wire or connection.

Once you understand these basics, interpreting the wiring diagram becomes a much simpler task.


Craftsman Garage Door Opener Wiring Diagram: Step-by-Step Installation Guide

Now that you have a basic understanding of how to read the diagram, let’s walk through the wiring installation for a Craftsman garage door opener. This guide assumes you have a compatible Craftsman opener model and are comfortable working with electrical wiring. If not, consider hiring a professional.

Tools and Materials You’ll Need

  • Craftsman garage door opener
  • Wiring diagram (included in the product manual)
  • Screwdrivers
  • Wire stripper
  • Voltage tester
  • Electrical tape

Step 1: Disconnect Power

For safety, always disconnect power to the opener before you begin any wiring. Ensure the breaker is turned off to avoid any risk of electric shock.

Step 2: Mount the Opener and Run Wiring

Install the garage door opener motor following the manufacturer’s guidelines. Once mounted, run the wires from the opener to each component, referencing the wiring diagram.

Step 3: Connect the Wall Button

The wall button is the primary control device for the opener. Connect the low-voltage wires from the wall button to the designated terminals on the opener motor. Usually, the wall button wiring is straightforward, using only two wires that connect to specific terminals labeled in the wiring diagram.

Step 4: Connect the Safety Sensors

Safety sensors are essential for modern garage door openers. Place these sensors on each side of the door, about six inches from the ground. Connect each sensor’s wire to the motor unit following the wiring diagram to ensure they are correctly installed. Make sure the sensors face each other and that there’s no obstruction between them.

Step 5: Wire the Power Source

Now, connect the opener to its power source, following the instructions in the diagram for wiring either a plug-in or hardwired installation. If you’re hardwiring, ensure you understand local electrical codes, as this process may require additional safety measures.

Step 6: Test the Wiring

Once all components are wired and securely connected, restore power to the opener. Test the wall button, remote, and safety sensors to confirm that they are working as expected.


Troubleshooting Common Wiring Issues in Craftsman Garage Door Openers

Even with a clear Craftsman Garage Door Opener Wiring Diagram, issues can arise during installation or normal operation. Here are some common problems and troubleshooting tips to help you address wiring-related issues.

Problem 1: Opener Doesn’t Respond

If the opener fails to respond when you press the wall button or remote:

  • Check Power: Ensure the unit is plugged in, and the breaker hasn’t tripped.
  • Inspect Wiring Connections: Loose or disconnected wires can prevent the opener from receiving signals.
  • Test the Wall Button and Remote: Check if the issue lies with the wall button or remote by testing each separately.

Problem 2: Safety Sensors Not Functioning

If your door won’t close, the safety sensors may be misaligned or not connected correctly.

  • Align Sensors: Ensure the sensors are facing each other and are level.
  • Inspect Wires: Check the wiring to each sensor for any signs of fraying or damage.
  • Clean Lenses: Dirt on the sensor lenses can prevent them from functioning properly.

Problem 3: Opener Stops or Reverses Midway

If the opener stops midway or reverses during operation:

  • Adjust Limit Settings: Incorrect limit settings can cause the door to stop prematurely.
  • Inspect Wiring for Loose Connections: Loose or poorly connected wires can interrupt the opener’s signal.
  • Check for Obstructions: Make sure nothing is blocking the door’s path or triggering the safety sensors.

Tips for Maintaining Your Craftsman Garage Door Opener Wiring

Proper wiring maintenance can extend the life of your garage door opener and prevent common electrical issues. Here are some tips to keep your wiring in good condition:

  1. Inspect Wires Periodically: Regularly check all wires for wear, corrosion, or damage. Replace any worn wires promptly.
  2. Use Electrical Tape for Extra Protection: Wrapping exposed wire connections with electrical tape can protect them from moisture and accidental contact.
  3. Secure Loose Wires: Loose wires can be dangerous and may cause your opener to malfunction. Use zip ties to secure any hanging or loose wires.
  4. Test Safety Sensors Regularly: Ensure that your safety sensors are functioning correctly by testing them every few months.

FAQs about Craftsman Garage Door Opener Wiring Diagrams

1. Are Craftsman wiring diagrams universal for all models?

Not all Craftsman models use the same wiring diagram. While many models share similar setups, always refer to the specific wiring diagram included with your opener for accuracy.

2. Can I install the wiring myself, or should I hire a professional?

If you’re comfortable with DIY projects and have basic electrical knowledge, you can wire the opener yourself. However, if you’re uncertain, hiring a professional is a safer option.

3. What should I do if I lose my wiring diagram?

If you lose your wiring diagram, you can often find it in the user manual or on the manufacturer’s website. Many online resources provide downloadable diagrams for specific Craftsman models.

4. How do I know if my wiring is safe?

Using a voltage tester to check for proper connections and ensuring that all wiring meets local electrical codes can help you confirm wiring safety. If you’re unsure, consult a licensed electrician.


Conclusion

The Craftsman Garage Door Opener Wiring Diagram is an invaluable tool for anyone looking to install, repair, or troubleshoot their garage door opener. By understanding how to read the wiring diagram and following the correct installation steps, you can safely set up your opener and ensure that all components work in harmony. Whether you’re a DIY enthusiast or simply want to better understand how your garage door opener works, mastering the wiring diagram is a great step toward maintaining a reliable and efficient garage door system.

Following these installation and maintenance tips will help you get the most out of your Craftsman garage door opener, keeping your garage secure and functional for years to come.

Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit: Features, Benefits, and Installation Guide

Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit

For homeowners with tall garage doors, finding the right opener solution can be challenging. Standard garage door openers are often designed for doors up to 7 or 8 feet in height. If your garage door is taller, you’ll need additional support for smooth and effective operation. This is where the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit becomes essential. Designed specifically for Craftsman belt-driven garage door openers, this kit extends the belt rail, enabling the opener to handle doors up to 10 feet high.

Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit

This comprehensive guide will cover everything you need to know about the Craftsman 10-Ft Belt Rail Extension Kit. We’ll look into its benefits, installation process, maintenance tips, and answer some common questions. By the end of this article, you’ll have a clear understanding of whether this extension kit is the right choice for your garage needs.


What is the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit?

The Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit is an accessory that extends the belt rail of compatible Craftsman garage door openers. While standard openers are suitable for doors up to 7 feet, this kit adds the necessary length to handle a 10-foot door effortlessly. This feature is particularly useful for homeowners with larger-than-standard garage doors or garages designed to accommodate high-profile vehicles.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

The belt-driven nature of this kit ensures quiet and smooth operation, which is ideal for garages attached to living spaces where noise reduction is a priority. The kit includes all necessary components, making it a straightforward upgrade for those looking to enhance their garage opener’s reach and performance.

Key Components of the Craftsman 10-Ft Belt Rail Extension Kit

  • 10-Foot Belt Rail: Extends the length of the existing belt rail to accommodate larger garage doors.
  • Belt Extension: Additional belt length to cover the increased distance.
  • Connectors and Mounting Hardware: Includes secure connectors for easy integration with your current opener.
  • Installation Instructions: Step-by-step guide to help you install the extension correctly.

Why Choose a Belt Rail Extension Kit?

Choosing the right extension kit can make a significant difference in the performance and longevity of your garage door opener. Belt-driven systems, like the one in the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit, offer several advantages over chain-driven alternatives.

Benefits of a Belt-Driven Extension Kit

  1. Quiet Operation: Belt-driven openers operate more quietly than chain-driven ones, making this kit ideal for attached garages where noise reduction is key.
  2. Durable Performance: The high-quality belt resists wear and tear, requiring minimal maintenance over time.
  3. Smooth Movement: Belt systems provide smooth, seamless operation, reducing strain on the garage door opener motor and improving the overall experience.

Do You Need the 10-Ft Belt Rail Extension Kit?

If your garage door is 10 feet in height, standard garage door openers may not be sufficient. The Craftsman 10-Ft Belt Rail Extension Kit is specifically designed to accommodate these taller doors, providing a secure fit and dependable performance. It’s an affordable solution for homeowners looking to enhance their garage door setup without purchasing a completely new opener.


How to Install the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit

One of the biggest benefits of the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit is its straightforward installation process. Follow these steps to ensure a successful setup.

Tools Needed for Installation

  • Ladder
  • Socket wrench set
  • Phillips screwdriver
  • Flathead screwdriver
  • Measuring tape
  • Adjustable wrench

Step-by-Step Installation Guide

  1. Turn Off Power to the Opener: Start by disconnecting the power to your garage door opener for safety.
  2. Detach the Existing Rail: Use a socket wrench to carefully detach the existing belt rail from the opener, ensuring the chain or belt is also disconnected.
  3. Prepare the New Belt Rail: Assemble the new belt rail according to the kit’s instructions. Lay out all components and align them for easy assembly.
  4. Attach the 10-Foot Belt Rail: Attach the new belt rail to the opener, securing it with the provided bolts and connectors. Double-check the alignment to ensure it is straight and secure.
  5. Install the Belt Extension: Replace or extend the belt to fit the new 10-foot rail. The kit includes an extension that connects to the existing belt, providing additional length as needed.
  6. Reconnect and Tension the Belt: Attach the belt to the rail and adjust the tension as necessary. A properly tensioned belt ensures smooth, quiet operation and minimizes strain on the motor.
  7. Test the Opener: Reconnect the power and test the garage door opener to make sure it opens and closes smoothly.
  8. Adjust Settings: You may need to adjust the travel limits to accommodate the new rail length. This ensures the door stops at the correct points, both fully open and closed.

Key Benefits of the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit

The Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit offers several practical benefits that make it an excellent choice for those with taller garage doors.

1. Enhanced Compatibility with Taller Doors

This kit is specifically engineered to work with 10-foot garage doors, a feature that standard openers lack. By using this extension, homeowners avoid having to buy an entirely new garage door opener.

2. Reduced Noise Levels

Thanks to the belt-driven design, this kit offers quieter operation compared to traditional chain rail systems. If your garage is attached to your home, this can make a big difference in reducing noise that travels indoors.

3. Long-Lasting Durability

The high-quality belt in this kit is made to withstand wear and tear, offering years of reliable service with minimal maintenance required.

4. Cost-Effective Solution

Buying a belt rail extension kit is far more affordable than purchasing a new opener compatible with 10-foot doors. This kit is a practical investment that maximizes the functionality of your existing Craftsman garage door opener.


Tips for Maintaining Your Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit

Regularly Check the Belt Tension

Over time, belts can stretch or lose tension. Regularly inspect the belt tension to ensure it’s not too tight or loose, as improper tension could affect the opener’s performance.

Keep the Rail Lubricated

While belt-driven openers require less lubrication than chain-driven ones, it’s still a good idea to periodically lubricate the rail for smoother operation. Use a silicone-based lubricant for best results.

Inspect Components for Wear

Since the opener operates frequently, inspect the rail, belt, and mounting hardware for signs of wear. Replace any worn components promptly to avoid potential malfunctions.

Clean the Garage Door Tracks

Dirt and debris in the garage door tracks can hinder smooth operation. Regularly cleaning the tracks and ensuring they are free of obstructions will help maintain efficient movement.


FAQs about the Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit

1. Can this kit be used with all Craftsman garage door openers?

The 10-Ft Belt Rail Extension Kit is compatible with certain Craftsman belt-driven garage door openers. Check your model’s specifications to ensure compatibility before purchasing.

2. How difficult is it to install the extension kit?

The installation process is relatively straightforward for those comfortable with DIY tasks. However, if you’re not confident, professional installation can ensure a proper setup.

3. Will installing this kit void my warranty?

Using an authorized Craftsman extension kit with a compatible opener generally does not void the warranty. For clarification, consult your warranty terms or reach out to Craftsman support.

4. Is this kit suitable for outdoor installations?

Yes, the components in the Craftsman 10-Ft Belt Rail Extension Kit are designed to withstand outdoor environments. However, regular maintenance is recommended to keep it in optimal condition.


Conclusion

The Craftsman Garage Door Opener 10-Ft Belt Rail Extension Kit is a practical solution for homeowners with taller garage doors, enabling smooth, quiet operation that can accommodate doors up to 10 feet in height. Its belt-driven design ensures reduced noise, making it perfect for homes where the garage is attached or near living spaces. This extension kit is not only cost-effective but also durable, offering a reliable upgrade for your garage door opener without the need to replace the entire system.

By following the installation and maintenance tips outlined here, you can ensure your garage door operates seamlessly and efficiently for years to come. If you’re looking to maximize the capabilities of your Craftsman garage door opener, this extension kit is a valuable investment.

Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit: Installation, Benefits, and Tips

Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit

If you’re dealing with a garage door that’s larger than the standard size or looking to improve your existing setup, the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit might be exactly what you need. This extension kit is specially designed to work with Craftsman garage door openers, enabling you to open larger garage doors—typically those up to 10 feet high. In this guide, we’ll walk you through everything you need to know about this extension kit, including its features, benefits, installation process, and tips on maximizing its efficiency. Whether you’re a DIY enthusiast or a homeowner looking for a practical solution to your garage door needs, this guide covers it all.

Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit

What is the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit?

The Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit is an accessory specifically designed for Craftsman garage door openers to extend the reach of your opener’s chain rail. Standard garage door openers are typically equipped to handle doors up to 7 or 8 feet in height. However, if your garage door is 10 feet tall, this kit provides the additional length necessary to ensure smooth operation. It’s ideal for homeowners with high garage doors who want to upgrade or replace their garage door opener without compromising on performance.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

Key Components of the Extension Kit

  • 10-Foot Chain Rail: Extends the opener’s reach to accommodate taller doors.
  • Connectors and Hardware: Includes essential connectors and fittings for secure installation.
  • User Guide: Provides detailed instructions on how to install and integrate the kit with your current garage door opener.

Why You Need a 10-Ft Chain Rail Extension Kit

Standard garage door openers simply don’t have the length to open doors taller than 8 feet. This can lead to incomplete opening, which could create inconvenience and safety issues. The Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit is specifically built to solve this problem, making it an essential addition for homeowners with larger doors. Here are a few reasons why you might need this kit:

  1. Accommodates Taller Doors: This kit is perfect for garages with 10-foot doors, allowing your opener to fully lift the door.
  2. Improved Performance: With a longer chain rail, the garage door opener can operate more smoothly, minimizing stress on the motor and reducing wear and tear.
  3. Enhanced Convenience and Security: A complete door opening ensures that the door operates safely and closes securely, enhancing overall security for your home.

How to Install the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit

Tools You Will Need

To install the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit, gather the following tools:

  • Adjustable wrench
  • Phillips screwdriver
  • Flathead screwdriver
  • Socket wrench set
  • Ladder
  • Measuring tape

Step-by-Step Installation Guide

  1. Unplug the Opener: For safety, always disconnect the garage door opener from its power source before beginning any installation.
  2. Detach the Existing Rail: Carefully remove the existing rail from your Craftsman garage door opener. Use the socket wrench to loosen any bolts and disconnect the chain.
  3. Prepare the Extension Kit: Open the kit and layout the new chain rail components. Align them according to the instructions in the user manual.
  4. Attach the 10-Foot Chain Rail: Attach the new chain rail to the opener, securing it with the bolts and connectors provided. Make sure everything is tightly fitted and aligned.
  5. Reconnect the Chain: Reconnect the chain onto the new rail. Ensure the chain is properly tensioned to avoid any operational issues.
  6. Test the Opener: Plug the opener back in and test the garage door’s movement. Ensure the door opens and closes smoothly without any resistance.
  7. Fine-Tune the Settings: Adjust any limit settings on your opener to account for the new rail length. This step ensures that the door stops and starts at the correct points.

Benefits of Using the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit

1. Enhanced Flexibility for Taller Garages

For homeowners with RV garages, high-profile vehicles, or simply taller-than-average garage doors, this extension kit offers an easy and cost-effective solution. Instead of replacing your entire garage door opener system, you can use the extension kit to accommodate the taller door.

2. Improved Door Operation

Adding a 10-foot chain rail allows the door to move more freely, reducing strain on the motor. Over time, this can lead to fewer repairs and a longer lifespan for your garage door opener.

3. Cost-Efficiency

Investing in the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit is generally more affordable than upgrading to a new, heavy-duty garage door opener. For most homeowners, this kit represents a valuable, budget-friendly option.

4. Increased Security

A well-functioning garage door opener that fully closes and opens a large door adds an extra layer of security. Knowing your garage is tightly sealed can deter break-ins and help protect your belongings.


Tips for Maintaining Your Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit

Regular Lubrication

Ensure that all moving parts, including the chain and rail, are regularly lubricated. Use a lubricant specifically designed for garage door openers to maintain smooth operation and prevent rust.

Periodic Inspections

Inspect the chain rail and extension kit for any signs of wear, especially if you use your garage door frequently. Check for loose bolts, frayed chains, or any misalignment. Address these issues early to avoid costly repairs.

Keep the Sensors Clean

Garage door openers rely on sensors to detect obstructions. Keep these sensors clean and unobstructed to ensure safe operation, especially when using an extended chain rail.


Common Questions About the Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit

1. Is this extension kit compatible with all Craftsman garage door openers?

Not all Craftsman models are compatible with the 10-ft chain rail extension kit. Always check the model number of your opener and refer to the kit’s compatibility list before purchasing.

2. Can I install the extension kit myself, or do I need a professional?

If you have basic DIY skills and the necessary tools, installing the kit can be a straightforward project. However, if you’re unsure or lack experience with garage door openers, hiring a professional may save time and ensure proper installation.

3. Will using an extension kit void my warranty?

Using a Craftsman-manufactured extension kit with a compatible opener usually won’t void the warranty. However, always review the warranty terms for your specific model or consult Craftsman customer service.


Conclusion

The Craftsman Garage Door Opener 10-Ft Chain Rail Extension Kit is an invaluable addition for homeowners with taller garage doors. From its seamless integration with compatible Craftsman openers to the convenience it brings for those with larger garage spaces, this extension kit offers a practical, cost-effective solution. Not only does it enhance your garage door opener’s performance, but it also increases security and extends the life of your equipment. Whether you’re looking to upgrade or install a new opener, this extension kit is worth considering for its reliability and ease of use.

By following the installation and maintenance tips outlined here, you’ll be able to enjoy a smooth, long-lasting garage door operation that suits your home’s unique needs.

Xtreme Garage Door Opener Parts: A Complete Guide to Repair and Maintenance for Smooth Operations

Xtreme Garage Door Opener Parts

Garage doors are essential for security and convenience in many homes, and a reliable garage door opener makes everyday life smoother and more efficient. When your garage door opener isn’t functioning as expected, finding the right replacement parts is crucial. Xtreme Garage Door Opener Parts provide an excellent option for maintaining and repairing your garage door opener. With their durability, compatibility, and ease of installation, Xtreme parts have gained popularity among homeowners. This article will walk you through the different types of Xtreme garage door opener parts available, their importance, and tips for maintenance to keep your garage door functioning smoothly.

Xtreme Garage Door Opener Parts

Why Quality Parts Matter for Garage Door Openers

Garage door openers have several moving components, each playing an essential role in opening and closing the door smoothly. Quality parts are vital because they directly affect the door opener’s efficiency, durability, and safety. Poor-quality parts can lead to frequent repairs, higher maintenance costs, and potential safety hazards. Here’s why choosing quality parts, like Xtreme Garage Door Opener Parts, is essential:

  • Longevity: Quality parts last longer and reduce the need for frequent replacements.
  • Safety: High-quality parts minimize the risk of malfunction, protecting both the garage door and users.
  • Efficiency: Well-made components contribute to smoother, quieter operations.

Types of Xtreme Garage Door Opener Parts

Xtreme Garage Door Opener Parts come in various types, each designed to meet specific needs in a garage door opener system. Knowing the right parts can help you select and replace only what you need without unnecessary expenses.

1. Remote Controls and Keypads

Remote controls and keypads are essential for convenient garage access. Xtreme Garage offers remote replacements that are compatible with many garage door models, making it easy to find a remote that fits. Keypads provide an added layer of security, allowing you to set a personal code for family members.

2. Drive Gears

The drive gear is crucial for the operation of chain-driven and belt-driven garage door openers. Over time, gears can wear down, causing the opener to struggle or fail. Xtreme Garage offers durable drive gears that ensure your opener runs smoothly and efficiently.

3. Safety Sensors

Safety sensors play a vital role in preventing accidents. These sensors detect objects or people in the door’s path, stopping it from closing to avoid harm or damage. If your door doesn’t reverse when something is in its path, the safety sensors may need replacing. Xtreme Garage Door Opener Parts include reliable safety sensors that can be easily installed to keep your garage door functioning safely.

4. Wall Consoles

The wall console controls your garage door opener from inside the garage. It usually includes buttons for opening, closing, and stopping the door. If your wall console is unresponsive, it may need to be replaced. Xtreme offers wall consoles compatible with various models to ensure seamless operation.

5. Springs and Cables

Springs and cables bear most of the weight when the garage door is raised or lowered. They are essential for balancing the door and reducing strain on the opener. Broken springs or frayed cables can lead to severe safety hazards. Xtreme Garage’s replacement parts include high-quality springs and cables that maintain the proper tension and balance in your garage door system.


Xtreme Garage Door Opener Parts for Effective Repairs and Upgrades

6. Trolleys and Rails

The trolley and rail system helps guide the door as it opens and closes. Over time, rails may warp or the trolley may wear out, causing the door to operate improperly. Xtreme Garage offers durable rail and trolley replacements to keep your system aligned and working smoothly.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

7. Belts and Chains

Belts and chains are essential parts of the drive mechanism in garage door openers. Chains are common in heavy-duty openers, while belts are quieter and ideal for residential use. Replacing worn-out belts or chains with Xtreme Garage parts can make a significant difference in noise reduction and performance.

8. Battery Backup Systems

Some garage door openers come with a battery backup that ensures they operate during power outages. If your system has this feature, ensuring you have a functional battery is critical. Xtreme Garage provides compatible battery backups for many garage door models, allowing continuous access even when the power is down.


Choosing the Right Xtreme Garage Door Opener Parts

Selecting the right part can make a huge difference in the performance of your garage door opener. Here are some steps to help you choose the right Xtreme Garage Door Opener Parts:

  1. Identify the Problem: Knowing exactly what’s wrong with your garage door opener will help you pinpoint which parts you need to replace. Common issues include unresponsive remotes, grinding noises, or doors that don’t close completely.
  2. Check Compatibility: Make sure the replacement part is compatible with your specific garage door opener model. Xtreme Garage provides compatibility details on their parts, making it easier to find the right fit.
  3. Quality Over Price: While budget is a consideration, prioritize quality over price. Durable, high-quality parts save you money in the long run by reducing the need for frequent replacements.

Tips for Maintaining Your Xtreme Garage Door Opener Parts

Proper maintenance can extend the life of your garage door opener parts, reducing the frequency of replacements and repairs. Here are some essential maintenance tips:

1. Regular Lubrication

Keeping moving parts well-lubricated reduces wear and tear. Apply a silicone-based lubricant to the rollers, hinges, and drive chains (if applicable) to ensure smoother operation.

2. Inspect Cables and Springs

Visually inspect the cables and springs every few months for signs of wear, rust, or fraying. If they appear damaged, consider replacing them immediately to prevent further issues.

3. Test Safety Sensors

Safety sensors should be tested regularly to ensure they’re functioning correctly. Place an object under the door and attempt to close it. If the door doesn’t reverse, it may be time to replace the sensors.

4. Clean Tracks

Dust and debris can accumulate on the tracks over time, causing the door to jerk or get stuck. Clean the tracks periodically with a damp cloth and ensure they’re aligned.

5. Battery Replacement

For garage doors with battery backup systems, replace the battery every 1-2 years or as recommended by the manufacturer. Keeping your battery in working condition ensures that your door functions during power outages.


Frequently Asked Questions About Xtreme Garage Door Opener Parts

Q: How often should I replace my garage door opener parts?

A: It depends on usage and part quality. Typically, well-maintained parts last several years. Drive gears and springs may need replacement more frequently due to wear and tear, especially if your garage door sees heavy use.

Q: Can I install Xtreme Garage Door Opener Parts myself?

A: Many Xtreme Garage parts are designed for DIY installation. However, for parts like springs and cables that hold significant tension, it’s safer to have a professional perform the replacement.

Q: What should I do if my garage door opener makes a grinding noise?

A: Grinding noises often indicate worn-out gears or a misaligned track. Inspect the drive gear and trolley. Replacing them with Xtreme Garage parts can resolve these issues effectively.

Q: How can I find the right remote control for my garage door opener?

A: Refer to your garage door opener model for compatibility details. Xtreme Garage offers universal remotes that work with various models, simplifying the selection process.


Conclusion

Maintaining a garage door opener in optimal condition involves regular care, timely part replacements, and choosing quality components. Xtreme Garage Door Opener Parts offer a wide selection of dependable options for both DIY enthusiasts and professionals. From essential safety sensors to durable drive gears and convenient remote controls, Xtreme Garage’s parts cater to diverse repair and upgrade needs.

With the right parts and routine maintenance, your garage door opener can provide years of reliable service. Whether you’re dealing with an unresponsive remote or a noisy operation, selecting high-quality parts like those from Xtreme Garage can make all the difference. Invest in reliable replacements, follow maintenance best practices, and enjoy the smooth, efficient performance of your garage door system for years to come.

How to Troubleshoot Craftsman Garage Door Opener Error Code 1-1: A Comprehensive Guide

Craftsman Garage Door Opener Error Code 1-1

Garage door openers make life easier, but technical errors can disrupt their smooth operation. One common issue many Craftsman users encounter is Craftsman Garage Door Opener Error Code 1-1. This error code, like others, has specific causes and solutions, and understanding it can save you time and potentially costly repairs. In this guide, we’ll break down everything you need to know about this error code, why it occurs, and how you can fix it yourself.

Craftsman Garage Door Opener Error Code 1-1

Understanding Craftsman Garage Door Opener Error Codes

Craftsman garage door openers use a combination of codes to alert users to specific issues. These codes help identify faults in the system, guiding users to potential problems with sensors, circuits, or other components. Each code is unique and directs users to a specific area needing attention, with Error Code 1-1 being one of the more common issues.

The Craftsman Garage Door Opener Error Code 1-1 usually indicates a problem related to the safety sensors. When this code appears, it means the opener is having trouble communicating with the sensors, which can prevent the door from closing properly.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


What is Craftsman Garage Door Opener Error Code 1-1?

When you encounter the Craftsman Garage Door Opener Error Code 1-1, it means that the opener has detected an issue with the safety sensors. The safety sensors are designed to prevent the garage door from closing if something is in the way, ensuring safe operation and preventing accidents.

Typically, Error Code 1-1 indicates one of the following issues:

  1. Misalignment of safety sensors.
  2. Dirty or obstructed sensor lenses.
  3. Faulty wiring or connection issues.
  4. Sensor failure requiring replacement.

Since these sensors play a crucial role in safe operation, it’s important to address this error as soon as possible.


Troubleshooting Craftsman Garage Door Opener Error Code 1-1

Here, we’ll walk you through several troubleshooting steps to help you resolve Craftsman Garage Door Opener Error Code 1-1.

1. Check Sensor Alignment

One of the most common reasons for Error Code 1-1 is a misalignment of the garage door’s safety sensors. For the opener to function properly, the two sensors on either side of the door must be aligned.

How to Check Sensor Alignment:

  1. Locate the Sensors: Craftsman garage door openers have sensors mounted near the bottom of each side of the door.
  2. Inspect the Indicator Lights: Each sensor has a small LED light. A green light typically shows that the sensor is receiving power, while an amber or red light indicates an alignment issue.
  3. Realign the Sensors: Adjust the sensors until both LED lights are steady and not blinking. If the lights remain steady, the sensors are aligned correctly.

Misaligned sensors are often the main cause of Craftsman Garage Door Opener Error Code 1-1 and can be resolved quickly with proper alignment.


2. Clean the Sensor Lenses

Dust, dirt, and debris can obstruct the sensor lenses, causing communication issues that lead to Error Code 1-1.

How to Clean the Sensors:

  1. Turn Off the Power: Before cleaning, disconnect the power to the garage door opener for safety.
  2. Use a Soft Cloth: Gently wipe each sensor lens with a soft, dry cloth. Avoid using water or harsh chemicals as these can damage the lenses.
  3. Check for Obstructions: Ensure no objects, plants, or debris are blocking the sensors.

After cleaning, test the door opener to see if Craftsman Garage Door Opener Error Code 1-1 is resolved. Clean sensors typically restore proper function, allowing the opener to operate smoothly.


3. Inspect Wiring and Connections

Another potential cause of Error Code 1-1 is an issue with the wiring or connections between the opener and the sensors. Faulty wiring can disrupt communication, causing the error.

How to Check the Wiring:

  1. Examine the Sensor Wires: Look for any visible signs of damage, such as fraying or cuts, in the wiring connecting the sensors to the opener.
  2. Check the Connections: Make sure that all connections are tight and secure. Loose connections can interfere with sensor communication.
  3. Reattach or Replace Wires: If you find damaged wires, consider replacing them or reattaching them securely.

Wiring issues are less common than sensor misalignment, but ensuring strong connections can help resolve Craftsman Garage Door Opener Error Code 1-1 and improve the opener’s reliability.


4. Test the Sensors

If you’ve checked alignment, cleaned the lenses, and inspected the wiring, but the Craftsman Garage Door Opener Error Code 1-1 persists, the sensors themselves may be faulty.

How to Test the Sensors:

  1. Swap the Sensors: Disconnect the sensors and switch their positions. Reconnect them to see if the error code changes.
  2. Observe the LED Lights: If the LED lights fail to turn on or remain off, it indicates a sensor malfunction.

If a sensor is faulty, you’ll need to replace it with a new one compatible with your Craftsman garage door opener model.


Replacing Faulty Safety Sensors

If your sensors are defective, replacing them is often the most effective solution. Craftsman garage door openers typically use universal sensors that are easy to install.

Steps to Replace Sensors:

  1. Purchase Compatible Sensors: Verify that the new sensors are compatible with your Craftsman 1/2 HP model.
  2. Turn Off Power: Disconnect power to the garage door opener for safety.
  3. Remove Old Sensors: Unfasten the old sensors from their mounts.
  4. Install New Sensors: Attach the new sensors in the same positions, securing them firmly.
  5. Connect Wiring: Connect the wires to the new sensors according to the Craftsman manual.
  6. Align the Sensors: Align the new sensors and confirm that both LED lights remain steady.

Once installed, test the garage door opener to ensure Craftsman Garage Door Opener Error Code 1-1 is no longer present.


When to Call a Professional

While most users can resolve Craftsman Garage Door Opener Error Code 1-1 with the troubleshooting steps provided, some situations require professional assistance. Consider calling a professional if:

  • You’re unable to resolve the error despite troubleshooting.
  • There are complex wiring or mechanical issues.
  • The sensors or opener show signs of severe wear or damage.

Professionals have the tools and expertise to diagnose and resolve issues beyond standard troubleshooting, ensuring the long-term safety and reliability of your garage door opener.


Preventing Craftsman Garage Door Opener Error Code 1-1

Preventing Craftsman Garage Door Opener Error Code 1-1 involves routine maintenance and regular checks. Here are a few tips:

1. Regular Cleaning

Keep the sensor lenses clean and free of dust or debris by wiping them down every few months.

2. Periodic Alignment Checks

Verify sensor alignment periodically, especially if the garage door area is frequently used or if the door vibrates heavily when operating.

3. Wiring Inspections

Inspect wiring annually to ensure there are no signs of wear or damage, which can help prevent future issues with Error Code 1-1.


Final Thoughts on Craftsman Garage Door Opener Error Code 1-1

Understanding and troubleshooting Craftsman Garage Door Opener Error Code 1-1 can save you time, money, and the hassle of dealing with a malfunctioning garage door. While this error often indicates a sensor issue, it’s relatively easy to resolve with alignment, cleaning, and checking connections. Following these troubleshooting steps will restore your garage door opener’s function and help prevent future issues.

By investing a little time in maintenance and understanding the parts of your Craftsman garage door opener, you can enjoy smooth and reliable operation for years. However, don’t hesitate to reach out to a professional if you’re unsure or need additional support in handling error code issues.

Craftsman Garage Door Opener 139.536 Parts and How to Maintain Them

Craftsman Garage Door Opener 139.536 Parts

The Craftsman Garage Door Opener 139.536 is known for its reliability and smooth operation. However, like any mechanical device, it consists of multiple parts that require occasional maintenance and, at times, replacement. Understanding the essential Craftsman Garage Door Opener 139.536 parts will help you maintain the opener’s performance and extend its lifespan. In this guide, we’ll explore the main components, provide maintenance tips, and cover replacement options to ensure your garage door opener works efficiently for years.

Craftsman Garage Door Opener 139.536 Parts

Overview of Craftsman Garage Door Opener 139.536 Parts

The Craftsman Garage Door Opener 139.536 model has a range of components that work together to lift and lower your garage door. Knowing these parts and their functions will help you diagnose any potential issues and determine when a part needs replacement. Below are some of the primary components that make up this model:

  • Motor Unit: The motor powers the opener, enabling it to lift and close the garage door. It’s designed to handle frequent use and comes with built-in safety features.
  • Drive System (Chain or Belt): This part transfers the motor’s power to the trolley, moving the door up and down. Chain drives are typically durable, while belt drives operate more quietly.
  • Trolley and Rail Assembly: The trolley travels along the rail, moving the garage door. It connects to the door arm to pull the door open and push it closed.
  • Safety Sensors: Positioned near the base of the door frame, these sensors stop the door from closing if an object or person is in the way.
  • Control Panel: The wall-mounted control panel allows users to open or close the door from inside the garage and may include additional programming options.
  • Remote Controls and Keypad: Remotes and optional keypads offer remote control access to open or close the door.
  • Limit Switches: Limit switches control the distance the door travels when opening and closing, ensuring it stops at the right points.
  • Lights and Light Lens Covers: Lights attached to the motor unit provide illumination in the garage when the door operates. The lens covers protect these lights.

Craftsman Garage Door Opener 139.536 Parts: Understanding Each Component

Knowing how each part functions helps you identify the causes of issues and maintain your garage door opener effectively. Below, we provide more detail on each of these Craftsman Garage Door Opener 139.536 parts.

1. The Motor Unit

The motor is the heart of the garage door opener, providing the power needed to lift and close the door. Over time, dust and wear can reduce motor efficiency, so it’s important to keep this part well-maintained.

  • Maintenance Tip: Dust the motor unit regularly and check for any unusual noises, which may indicate wear. If the motor begins to struggle with lifting the door, it may need servicing or replacement.

2. Chain or Belt Drive System

The Craftsman 139.536 model typically uses either a chain or a belt to drive the door. Chain drives are durable and great for heavy doors, while belt drives are quieter and may be preferable in attached garages.

  • Maintenance Tip: Lubricate the chain drive every six months with garage door lubricant to prevent rust and wear. Belt drives generally don’t need lubrication but should be checked regularly for any signs of fraying.

3. Trolley and Rail Assembly

The trolley moves along the rail, connecting to the door arm to control the door’s movement. This assembly can wear out due to frequent use or if not regularly lubricated.

  • Maintenance Tip: Apply lubrication to the rail every few months and check for signs of wear. If the trolley becomes difficult to move, consider replacing it.

4. Safety Sensors

Safety sensors ensure the garage door doesn’t close if something or someone is in its path, which is an essential safety feature. The sensors must be aligned correctly to work properly.

  • Maintenance Tip: Clean the sensor lenses regularly and ensure they are aligned. Misaligned or dirty sensors can prevent the door from closing properly, triggering the safety reversal.

5. Control Panel

The control panel allows you to operate the garage door from inside the garage. Some panels also allow for programming remote controls and setting additional features.

  • Maintenance Tip: Ensure the control panel’s wiring is secure and test it regularly. If the buttons don’t respond or the panel malfunctions, it may need replacement.

6. Remote Controls and Keypad

Remote controls and keypads provide added convenience, allowing you to operate the door without being near the control panel. Remotes often need battery replacement, and keypads may require programming updates over time.

  • Maintenance Tip: Replace remote batteries annually and test the keypad’s functionality. Refer to the manual if reprogramming is needed or if the keypad does not work consistently.

7. Limit Switches

Limit switches control how far the door opens and closes. These are essential for preventing the door from going too far in either direction, which can cause strain on the opener.

  • Maintenance Tip: Check the limit switch settings periodically. If the door doesn’t fully open or close, adjusting the limit switches may resolve the issue.

8. Lights and Light Lens Covers

Lights on the motor unit provide illumination for safe garage access. Over time, bulbs may need replacement, and the light covers should be kept clean.

  • Maintenance Tip: Replace the bulb with a compatible garage door opener light and clean the lens cover to ensure maximum light output.

Replacing Craftsman Garage Door Opener 139.536 Parts

Garage door opener parts can experience wear over time and may eventually need replacement. Here’s how to handle some of the most common replacements:

Motor Replacement

If the motor begins to fail, replacing it can restore the opener’s functionality.

  1. Turn Off Power: Always disconnect the power before starting.
  2. Remove the Old Motor: Detach it from the rail and wiring, following the instructions in the manual.
  3. Install the New Motor: Attach it to the rail and reconnect the wiring.

Drive Belt or Chain Replacement

If the belt or chain shows signs of wear or damage, it should be replaced to prevent potential failure.

  1. Release Tension: Loosen the tension on the chain or belt to remove it.
  2. Install New Drive: Place the new chain or belt on the rail, securing it to the motor and trolley.
  3. Adjust Tension: Tighten the tension according to the specifications in the manual.

Safety Sensor Replacement

When sensors become faulty, they must be replaced for safety purposes.

  1. Disconnect Wires: Remove the existing sensors, disconnecting the wiring.
  2. Install New Sensors: Attach the new sensors, connecting them to the wiring and ensuring they’re aligned.

Craftsman Garage Door Opener 139.536 Parts: Maintenance Tips for Longevity

Consistent maintenance is essential for maximizing the lifespan of the Craftsman Garage Door Opener 139.536 parts. Here are some tips to keep your opener running smoothly:

1. Monthly Safety Checks

Check the safety sensors each month by closing the door while an object is in its path. If the door doesn’t reverse, inspect the sensors and clean their lenses.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

2. Semi-Annual Lubrication

Apply garage door lubricant to moving parts, such as the rail and chain, every six months. This will reduce friction and extend the life of these components.

3. Battery Replacements

Remote control and keypad batteries should be replaced annually or sooner if you notice reduced range. This ensures consistent functionality.

4. Check Door Balance

An imbalanced door can strain the opener. Test the door balance by disconnecting it from the opener and manually lifting it halfway. If it doesn’t stay in place, contact a professional to adjust the door springs.


Benefits of Properly Maintaining Craftsman Garage Door Opener 139.536 Parts

Regular care and attention to your Craftsman Garage Door Opener 139.536 parts offer several benefits:

  1. Extended Lifespan: Proper maintenance ensures each part lasts longer, reducing the frequency and cost of replacements.
  2. Improved Safety: Functioning sensors and balanced doors minimize risks of accidents.
  3. Reliability: Well-maintained openers perform more reliably, providing consistent access to your garage.
  4. Enhanced Security: Ensuring your opener works well means your garage remains secure, reducing the risk of unauthorized access.

Final Thoughts on Craftsman Garage Door Opener 139.536 Parts

Maintaining and understanding the Craftsman Garage Door Opener 139.536 parts is essential for a functional and secure garage door system. Whether you’re performing routine maintenance or replacing worn components, these steps can help keep your garage door opener in top shape for years. With regular inspections and part replacements as needed, you’ll be able to rely on your garage door opener for safe, efficient, and convenient access to your home.

Craftsman Garage Door Opener 139.539 Manual – Setup, Programming, and Troubleshooting

Craftsman Garage Door Opener 139.539 Manual

Garage door openers like the Craftsman Garage Door Opener 139.539 offer dependable functionality for easy access and security. With this manual, you’ll be able to understand the installation, programming, and troubleshooting steps that make owning this model straightforward. Whether you’re setting up a new opener or need guidance on troubleshooting, this article provides a comprehensive walkthrough based on the Craftsman Garage Door Opener 139.539 Manual to ensure everything works smoothly.

Craftsman Garage Door Opener 139.539 Manual

Getting Started: Understanding the Craftsman Garage Door Opener 139.539

The Craftsman Garage Door Opener 139.539 model is known for its powerful motor and durable construction, making it ideal for residential garage doors. It’s built with user-friendly features such as remote control compatibility and safety sensors, giving users a secure and reliable experience. Here’s a look at its main components:

  • Motor Unit: The 139.539 model has a robust motor, designed to handle most single or double garage doors with ease.
  • Remote Controls: This model can be programmed with one or multiple remotes, which allows multiple users to access the garage.
  • Wall-Mounted Panel: Provides easy access to open or close the door from within the garage.
  • Safety Sensors: Located near the bottom of the garage frame, these sensors prevent the door from closing if an obstruction is detected, ensuring a safe environment.

By following the guidelines provided in this Craftsman Garage Door Opener 139.539 Manual, you’ll be able to set up, program, and maintain your opener with ease. Let’s get started with the setup instructions.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


Craftsman Garage Door Opener 139.539 Manual: Installation and Setup

Before you start programming or using your Craftsman opener, it’s essential to install it correctly. Follow these step-by-step instructions to ensure the opener is securely set up:

Step 1: Gather the Necessary Tools

Make sure you have the required tools, including:

  • Power drill
  • Screwdrivers (flathead and Phillips)
  • Pliers and wrenches
  • Stepladder

Step 2: Install the Motor Unit

  1. Position the Motor Unit: Use a stepladder to place the motor unit centrally above the garage door. The motor should be securely mounted to a stable ceiling surface.
  2. Attach the Rail: The rail connects the motor to the door. Attach it according to the instruction manual, making sure it’s securely bolted.
  3. Install the Chain or Belt: If this model uses a chain or belt, loop it onto the motor and secure it to the rail system.

Step 3: Install the Safety Sensors

  1. Position the Sensors: Place each sensor on either side of the garage door frame, close to the floor.
  2. Align the Sensors: Make sure they face each other and are level. The alignment is critical as misaligned sensors can cause the opener to malfunction.
  3. Wire the Sensors: Follow the manual instructions to connect the sensor wires to the motor unit.

Step 4: Set Up the Wall-Mounted Control Panel

  1. Position the Panel: Install the control panel near the garage entry door for easy access.
  2. Connect Wires: Run the wires from the control panel to the motor unit, securing them along the wall and ceiling.
  3. Test the Panel: Press the buttons to ensure the wall-mounted panel is communicating with the opener.

Programming the Craftsman Garage Door Opener 139.539

Once installation is complete, it’s time to program the Craftsman Garage Door Opener 139.539 for your remote controls and keypad. Follow the instructions below to program each component.

Programming the Remote Control

To program a remote control for your Craftsman 139.539 model:

  1. Locate the “Learn” Button: You’ll find this button on the motor unit. It may be labeled and is typically located near the LED lights on the side or back of the unit.
  2. Press the “Learn” Button: Hold it down for a few seconds until the LED light turns on.
  3. Press the Remote Button: While the LED is still lit, press the button on your remote control. The LED will blink to confirm the programming is successful.
  4. Test the Remote: Stand back and press the remote button to ensure the door opens and closes as expected.

Programming the Keypad (If Applicable)

If your Craftsman model includes a keypad, follow these steps to set up a secure PIN:

  1. Press the “Learn” Button on the motor unit.
  2. Enter a Four-Digit PIN on the keypad and press the enter button.
  3. Confirm the Code: The LED will blink to confirm that the PIN has been successfully saved. Test the keypad by entering the PIN and pressing enter to open or close the door.

Craftsman Garage Door Opener 139.539 Manual: Troubleshooting Common Issues

Even the best garage door openers can experience issues. Here are solutions for some common problems, with insights from the Craftsman Garage Door Opener 139.539 Manual.

Problem 1: Garage Door Doesn’t Open or Close

If your garage door won’t operate, check the following:

  • Power Source: Ensure the opener is plugged in and receiving power.
  • Sensor Alignment: Misaligned sensors can prevent the door from closing. Adjust the sensors to ensure they face each other and are free from obstructions.
  • Remote Battery: A weak remote battery can hinder operation. Replace the battery to restore full function.

Problem 2: Remote Control Not Responding

If your remote control isn’t working, try the following:

  • Reprogram the Remote: Follow the programming steps above to ensure the remote is correctly paired.
  • Battery Check: Replace the remote’s battery if it’s weak.
  • Distance Check: Ensure you’re within the remote’s range for it to function properly.

Problem 3: Door Reverses After Closing

If the door starts to close but immediately reverses, the likely causes include:

  • Sensor Obstruction: Ensure nothing is blocking the sensors. Even a small object can prevent the door from closing.
  • Sensitivity Adjustment: The sensitivity settings may need adjustment if the door is too sensitive to small obstacles. Refer to your manual to locate the adjustment controls on the motor unit.

Maintenance Tips for Your Craftsman Garage Door Opener 139.539

Regular maintenance is essential to keep your garage door opener running smoothly and extend its lifespan. Here are some recommended maintenance tips from the Craftsman Garage Door Opener 139.539 Manual.

Monthly Safety Sensor Check

Inspect the safety sensors monthly to ensure they are clean, properly aligned, and functioning. Clean them gently with a dry cloth if needed, and test them by closing the garage door with a small object in the door’s path.

Chain or Belt Lubrication

If your opener uses a chain or belt, apply a recommended lubricant every six months to keep it running smoothly and quietly. Avoid over-lubricating as it can attract dust and debris.

Balance Testing

Every few months, test the garage door’s balance by disconnecting it from the opener and manually lifting it halfway. The door should remain in place. If it doesn’t, consider calling a professional to adjust the door springs.

Battery Replacement

Replace the batteries in your remote controls and keypad annually to maintain optimal performance.


Key Benefits of Proper Setup and Maintenance for Your Craftsman Garage Door Opener 139.539

Following the Craftsman Garage Door Opener 139.539 Manual for setup and maintenance is essential for optimal performance. Here’s why:

  • Increased Security: A properly programmed and functioning opener ensures your garage remains secure, reducing unauthorized access risks.
  • Enhanced Convenience: Reliable remote and keypad operation means you can access your garage without hassle.
  • Prolonged Lifespan: Regular maintenance ensures your opener stays in top shape, reducing the likelihood of costly repairs or replacement.

Final Thoughts on the Craftsman Garage Door Opener 139.539 Manual

By following the Craftsman Garage Door Opener 139.539 Manual and the guidelines provided in this article, you can confidently install, program, and troubleshoot your garage door opener. Routine maintenance and programming checks are critical for keeping it running smoothly. If you encounter persistent issues, consult your manual for further troubleshooting or consider seeking professional assistance to keep your system working effectively.

With the right setup and maintenance, your Craftsman garage door opener will serve you reliably for years to come.

Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup

Craftsman Garage Door Opener 1/2 Hp Programming

When it comes to convenient home entry and exit, an efficient and reliable garage door opener makes all the difference. The Craftsman Garage Door Opener 1/2 HP model has gained popularity due to its robustness and ease of use. However, setting up and programming it can feel daunting for beginners. This article provides a step-by-step guide to Craftsman Garage Door Opener 1/2 HP programming, making the process straightforward. We’ll cover everything from initial setup to remote programming and troubleshooting.

Craftsman Garage Door Opener 1/2 Hp Programming

What You Need to Know About Craftsman Garage Door Opener 1/2 HP

Craftsman garage door openers are known for their durability and reliability, and the 1/2 HP model is ideal for a variety of residential garage doors. With the right programming, your garage door opener can offer the perfect blend of security and convenience. Before diving into the programming steps, here are a few basics about this model:

  1. Motor Strength: The 1/2 HP motor is strong enough to lift most residential garage doors, including sectional doors, without strain.
  2. Safety Features: Includes sensors to prevent accidents, stopping and reversing if an obstruction is detected.
  3. Remote Control Capabilities: Can be paired with multiple remotes for family convenience.
  4. Wall-Mounted Control Panel: Allows for operation without needing a remote, adding a layer of convenience.

If you’re looking to set up or reprogram your Craftsman Garage Door Opener 1/2 HP, read on for step-by-step instructions to make the process as smooth as possible.


How to Program Craftsman Garage Door Opener 1/2 HP: Step-by-Step Guide

The programming process for your Craftsman Garage Door Opener 1/2 HP is relatively straightforward. Follow these steps carefully to ensure correct setup and operation:

Step 1: Locate the “Learn” Button

The “Learn” button is key to programming your garage door opener. You can find it on the back or side panel of the motor unit. Depending on the model, the “Learn” button may be different colors (often red, green, or yellow).

  1. Open the back panel of the garage door opener to expose the programming buttons.
  2. Look for a small button labeled “Learn” near the top.

Step 2: Set the Door Position and Safety Sensors

Before programming, it’s essential to check the position of the garage door and test the safety sensors.

  1. Close the garage door completely to ensure the opener has an accurate starting point.
  2. Inspect the safety sensors, usually located near the bottom of the door frame. They should be aligned properly and free from dust or obstructions.

Step 3: Programming the Remote Control

Programming the remote control to operate the Craftsman Garage Door Opener 1/2 HP is a quick and easy process:

  1. Press and hold the “Learn” button until the LED light turns on. This light will stay on for about 30 seconds.
  2. Press the button on your remote control while the LED light is still on. You should see the LED blink, indicating successful pairing.
  3. Test the remote to ensure it operates the garage door.

Repeat these steps if you want to pair additional remotes. You can program multiple remotes to operate the same garage door opener.

Step 4: Setting Up the Keypad (If Available)

If your Craftsman garage door opener includes a keypad, follow these steps to program it:

  1. Press and release the “Learn” button on the motor unit.
  2. Within 30 seconds, enter your desired four-digit PIN on the keypad and press the Enter button.
  3. The LED on the motor unit should blink, indicating that the PIN has been successfully saved.

You can now use this PIN to operate the garage door by entering it on the keypad and pressing the enter button.


Troubleshooting Common Craftsman Garage Door Opener Programming Issues

If you encounter issues during the programming process, here are some common problems and solutions:

Issue 1: Remote Control Not Working After Programming

If the remote control is not functioning even after programming, try the following:

  • Battery Check: Make sure the battery in the remote is fresh and correctly installed.
  • Reprogram: Repeat the programming steps to ensure the remote is synced with the motor unit.
  • Range: Ensure you are within the operating range of the remote.

Issue 2: Keypad Not Responding

When the keypad fails to respond or operate the garage door, consider the following fixes:

  • Check the PIN: Ensure you have entered the correct four-digit PIN.
  • Replace Batteries: Keypads rely on batteries that may need replacement over time.
  • Reprogram the Keypad: Follow the programming steps again to ensure the PIN is correctly saved.

Issue 3: Door Does Not Close or Reverses

If the door reverses after attempting to close, it may be due to the safety sensors. Here’s how to troubleshoot:

  • Check Sensor Alignment: Ensure both sensors are aligned, as a misaligned sensor will prevent the door from closing.
  • Remove Obstacles: Ensure there are no obstructions in the path of the sensors.
  • Clean Sensors: Dust and dirt can block the sensor’s function, so give them a gentle cleaning with a dry cloth.

Maintaining Your Craftsman Garage Door Opener 1/2 HP for Optimal Performance

Regular maintenance of your Craftsman Garage Door Opener 1/2 HP ensures it functions smoothly and lasts longer. Here are some maintenance tips:

1. Regular Lubrication

To keep the motor and chain running smoothly, apply a garage door lubricant to the moving parts. Avoid using thick grease as it can attract dust and debris.

2. Inspect Safety Sensors

The sensors play a crucial role in preventing accidents. Inspect them monthly to ensure they are clean and correctly aligned.

3. Test the Balance of the Garage Door

An imbalanced garage door puts additional strain on the motor. To test, disconnect the door from the opener and manually lift it. If it doesn’t stay open halfway, consider contacting a professional for adjustment.

4. Replace Remote Batteries Annually

The batteries in the remote control should be replaced at least once a year, or whenever you notice a decrease in range. This ensures you can reliably operate your garage door from a distance.


Benefits of Properly Programming Your Craftsman Garage Door Opener 1/2 HP

Programming your garage door opener isn’t just about getting it to work; it’s about maximizing its benefits for convenience, security, and safety. Here’s how:

  1. Enhanced Security: Proper programming prevents unauthorized access and ensures only the remotes you authorize can control the door.
  2. Convenience: You and your family can seamlessly access the garage, making day-to-day routines easier.
  3. Safety: A programmed opener with working sensors and a reliable remote reduces the chances of accidents.
  4. Energy Efficiency: Quick and accurate programming means the opener functions more efficiently, which can be more energy-saving.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


Final Thoughts on Craftsman Garage Door Opener 1/2 HP Programming

Setting up and programming your Craftsman Garage Door Opener 1/2 HP doesn’t have to be a complex task. With this guide, you should feel more confident handling setup and troubleshooting. Remember to periodically check your opener’s functionality to ensure safety and optimal performance. If issues persist, consult the user manual or reach out to a professional technician. A well-maintained garage door opener will provide you with years of smooth and secure operation.


With the right programming, you can enjoy both convenience and security with your Craftsman garage door opener. Follow the steps outlined in this guide, and you’ll have your garage door opener working in no time. Happy programming!

Craftsman 1/2 HP Garage Door Opener Parts

Craftsman 1/2 Hp Garage Door Opener Parts

Garage door openers have become an essential part of modern home convenience and security. Among the many options available, the Craftsman 1/2 HP Garage Door Opener stands out for its reliability and efficiency. However, like all mechanical devices, it may require maintenance and replacement parts to continue functioning optimally. This article serves as a comprehensive guide to Craftsman 1/2 HP Garage Door Opener Parts, providing you with valuable information on parts, troubleshooting, and maintenance.

Craftsman 1/2 Hp Garage Door Opener Parts

Overview of the Craftsman 1/2 HP Garage Door Opener

The Craftsman 1/2 HP Garage Door Opener is a screw-drive mechanism designed for lifting and lowering garage doors with ease. Its 1/2 horsepower motor makes it suitable for most residential garage doors, ensuring sufficient power and speed for effective operation.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

Benefits of the Craftsman 1/2 HP Garage Door Opener

  1. Durability: Craftsman products are known for their long-lasting performance, making them a popular choice among homeowners.
  2. Ease of Use: The user-friendly design of the opener ensures that both the remote and wall control are intuitive and easy to operate.
  3. Low Maintenance: With fewer moving parts than chain-driven openers, the screw-drive design requires less frequent maintenance.

Despite its advantages, like any mechanical system, your Craftsman garage door opener may experience wear and tear. Understanding the components and knowing how to replace them is essential for keeping your opener in good working condition.


Key Components of Craftsman 1/2 HP Garage Door Opener Parts

To effectively troubleshoot and maintain your Craftsman 1/2 HP Garage Door Opener, it’s important to familiarize yourself with its main components. Here are the essential parts you should know about:

1. Motor Unit

The motor unit is the heart of the garage door opener. It powers the screw drive mechanism and lifts the garage door.

  • Common Issues: If the motor doesn’t respond or emits unusual sounds, it may be faulty and require replacement.

2. Screw Drive

The screw drive consists of a threaded rod that moves the trolley as the motor operates. It directly lifts and lowers the garage door.

  • Maintenance Tip: Regular lubrication is necessary to ensure smooth operation and prevent grinding noises.

3. Trolley Assembly

The trolley connects the garage door to the screw drive. It moves along the screw drive as the motor operates, pulling the door up or down.

  • Common Issues: If the trolley is misaligned, the door may not open or close properly. Ensure it’s aligned with the screw drive.

4. Limit Switches

Limit switches determine how far the garage door travels. They signal the motor to stop when the door reaches the fully open or closed position.

  • Adjustment Tip: If the door stops too early or travels too far, you can adjust the limit switches according to the manufacturer’s instructions.

5. Safety Sensors

Safety sensors are located near the floor at both sides of the garage door. They prevent the door from closing if an object is detected in the path.

  • Common Issues: Misaligned sensors can cause the door to reverse unexpectedly. Regularly check and clean the sensors to ensure proper function.

6. Remote Control and Wall Switch

These components allow you to operate the garage door opener from a distance or directly from the garage.

  • Common Issues: If the remote or wall switch isn’t working, check the batteries or wiring connections.

7. Logic Board

The logic board acts as the control center for the opener. It interprets signals from the remote control and wall switch, managing the motor’s operation.

  • Common Issues: If the opener is unresponsive, the logic board may need to be replaced.

Where to Find Craftsman 1/2 HP Garage Door Opener Parts

Finding replacement parts for your Craftsman 1/2 HP Garage Door Opener can be simple if you know where to look. Here are some reliable sources:

1. Official Craftsman Retailers

Authorized retailers such as Sears often carry a wide selection of Craftsman parts. This is one of the most reliable sources to find the correct parts for your model.

2. Online Marketplaces

Websites like Amazon, eBay, and Walmart frequently list various garage door opener parts. Be sure to check customer reviews and ratings to ensure quality.

3. Local Hardware Stores

Many local hardware stores stock common garage door opener parts. Contact them to inquire about availability, especially for less common components.

4. Specialized Garage Door Companies

Local garage door specialists often have a broader selection of parts and may offer installation services. They can also provide valuable advice on repairs and maintenance.

5. Used Parts Suppliers

For budget-conscious homeowners, consider checking local classifieds or online marketplaces for used parts. Just make sure they are in good condition before purchasing.


How to Use a Parts Diagram for Your Craftsman Opener

Using a parts diagram can greatly simplify the process of identifying and replacing components in your Craftsman 1/2 HP Garage Door Opener. Here’s how to effectively use a parts diagram:

  1. Locate the Diagram: You can usually find a parts diagram in the owner’s manual or online on the Craftsman website.
  2. Identify Parts by Number: Each component is labeled with a specific number that corresponds to its position in the opener.
  3. Cross-Reference Part Numbers: When ordering parts, use the part numbers from the diagram to ensure compatibility.

Installation Tips for Craftsman 1/2 HP Garage Door Opener Parts

Replacing parts can often be a DIY project if you’re comfortable with tools. Here are some helpful installation tips:

1. Gather Your Tools

Before you start, ensure you have all the necessary tools ready. Common tools include screwdrivers, pliers, and a socket set. Having everything at hand will streamline the installation process.

2. Safety First

Always unplug the garage door opener before beginning any repairs. If you’re working on the door itself, ensure it’s fully closed and secured.

3. Follow Instructions

Refer to the owner’s manual or installation guides that come with replacement parts. Many manufacturers provide detailed, step-by-step instructions for installation.

4. Take Your Time

Rushing through the installation can lead to mistakes. Take your time to ensure each part is installed correctly and securely.

5. Test After Installation

After replacing parts, reconnect the opener and test the system to ensure everything works properly. Pay attention to any unusual sounds or behaviors during operation.


Maintenance Tips for Your Craftsman 1/2 HP Garage Door Opener

Regular maintenance is key to extending the life of your garage door opener and minimizing the need for repairs. Here are some essential maintenance tips:

1. Regular Inspections

Perform routine inspections of all components. Look for signs of wear and tear, and listen for unusual noises during operation.

2. Lubrication

Lubricate moving parts, including the screw drive, trolley, and any hinges. This will help reduce friction and extend the lifespan of these components.

3. Check Safety Features

Regularly check that safety sensors are clean and properly aligned. Ensure they respond correctly by placing an object in their path.

4. Adjust Limit Switches

If you notice that the door is not stopping correctly, adjust the limit switches as needed. Regularly check their functionality to ensure safe operation.

5. Keep the Area Clean

Ensure that the area around the garage door is free of debris. This prevents obstruction during operation and keeps the sensors clear.


Common Issues with Craftsman 1/2 HP Garage Door Openers

Being aware of common problems can help you troubleshoot issues before they require extensive repairs. Here are some common issues to watch for:

1. Opener Won’t Respond

If your garage door opener doesn’t respond to the remote or wall switch, check the power supply and ensure the motor is functioning. If the problem persists, you may need to replace the logic board.

2. Door Moves Unevenly

If the garage door moves unevenly or stops midway, the trolley or screw drive may be misaligned. Ensure everything is properly aligned and lubricated.

3. Noisy Operation

Unusual noises can indicate a problem with the motor or screw drive. Ensure the screw drive is lubricated and check for any loose components.

4. Door Reverses Unexpectedly

If the door reverses without hitting an obstruction, the safety sensors may be misaligned or malfunctioning. Check the alignment and clean the sensors to ensure proper function.


Conclusion

The Craftsman 1/2 HP Garage Door Opener is an excellent investment for any homeowner looking to enhance convenience and security. Understanding its components and how to troubleshoot and maintain them will empower you to keep your garage door opener functioning effectively for years to come. Whether you need to replace a worn-out part or simply perform routine maintenance, this guide will provide you with the knowledge necessary to address any issues that may arise.

Taking proactive steps in caring for your garage door opener will not only ensure its longevity but will also provide peace of mind knowing that your home is secure. Always remember to consult the owner’s manual for specific instructions and recommendations, and don’t hesitate to seek professional help if needed. With the right approach, your Craftsman 1/2 HP Garage Door Opener will continue to serve you reliably, offering the convenience and security that modern homes require.

Craftsman 1/2 HP Screw Drive Garage Door Opener Parts

Craftsman 1/2 Hp Screw Drive Garage Door Opener Parts

Garage door openers play a crucial role in the convenience and security of your home. Among the various models available, the Craftsman 1/2 HP Screw Drive Garage Door Opener stands out for its efficiency and reliability. However, like any mechanical device, it may require maintenance and replacement parts over time. This comprehensive guide will cover everything you need to know about Craftsman 1/2 HP Screw Drive Garage Door Opener Parts, including common issues, where to find parts, and maintenance tips to keep your system running smoothly.

Craftsman 1/2 Hp Screw Drive Garage Door Opener Parts

Understanding the Craftsman 1/2 HP Screw Drive Garage Door Opener

Before diving into the parts, it’s essential to understand the mechanism behind a screw drive garage door opener. Unlike chain or belt-driven models, a screw drive opener uses a threaded steel rod to lift and lower the garage door. This design provides several advantages, including:

  • Fewer Moving Parts: The screw drive mechanism has fewer components, which means less wear and tear over time.
  • Low Maintenance: With fewer moving parts, these openers typically require less maintenance compared to other models.
  • Quieter Operation: Screw drive openers generally operate more quietly than chain-driven systems, making them a popular choice for homes.

Despite these advantages, screw drive openers can encounter issues that require replacement parts. Understanding the components of the Craftsman 1/2 HP Screw Drive Garage Door Opener is vital for effective troubleshooting.


Key Components of the Craftsman 1/2 HP Screw Drive Garage Door Opener

1. Motor

The motor is the powerhouse of the garage door opener, providing the necessary force to lift and lower the door. A 1/2 HP motor is sufficient for most residential garage doors.

Common Issues: If the motor fails, you may notice that the opener doesn’t respond to commands. In some cases, you may hear unusual sounds, indicating a motor malfunction.

2. Screw Drive Assembly

This assembly consists of a threaded rod that moves the trolley as the motor spins. The screw drive is crucial for the opener’s operation.

Maintenance Tip: Regularly lubricate the screw drive to ensure smooth operation. Lack of lubrication can cause grinding noises and may lead to wear.

3. Trolley

The trolley is attached to the garage door and moves along the screw drive. It connects the door to the opener mechanism.

Common Issues: If the trolley is misaligned or damaged, the door may not open or close correctly. Ensure it slides smoothly along the screw drive.

4. Limit Switches

Limit switches determine how far the garage door travels. They tell the opener when to stop when the door is fully open or closed.

Adjustment Tip: If the door doesn’t stop at the correct position, adjust the limit switches according to the manufacturer’s instructions.

5. Safety Sensors

Safety sensors are located at the bottom of the garage door tracks. They prevent the door from closing on an obstruction by sending a signal to the opener.

Common Issues: Misaligned sensors can cause the door to reverse unexpectedly. Regularly check the alignment and clean the sensor lenses to maintain proper functionality.

6. Logic Board

The logic board controls the functions of the opener, processing signals from the remote control and wall switches.

Common Issues: If the opener is unresponsive, the logic board may be faulty. Consider consulting a professional for diagnosis and replacement.


Where to Find Craftsman 1/2 HP Screw Drive Garage Door Opener Parts

Finding replacement parts for your Craftsman garage door opener can be straightforward if you know where to look. Here are several options:

1. Official Craftsman Retailers

Sears and other authorized Craftsman retailers often carry a wide selection of replacement parts. This is one of the most reliable sources to ensure you get the correct parts for your model.

2. Online Marketplaces

Websites such as Amazon, eBay, and Walmart frequently offer various garage door opener parts. Make sure to read reviews and check for seller ratings to ensure quality.

3. Local Hardware Stores

Many local hardware stores stock common garage door opener parts. Call ahead to inquire about availability, especially for less common components.

4. Specialized Garage Door Companies

Local garage door specialists often have a broader selection of parts and may offer installation services. These companies can also provide valuable advice on maintenance and repairs.

5. Used Parts Suppliers

If you’re looking for budget-friendly options, consider checking local classifieds or online marketplaces for used parts. Just ensure they are in good condition before purchasing.


How to Use a Parts Diagram for Your Craftsman Opener

A parts diagram can significantly simplify the process of identifying and replacing components of your Craftsman 1/2 HP Screw Drive Garage Door Opener. Here’s how to effectively use a parts diagram:

  1. Locate the Diagram: You can usually find a parts diagram in the owner’s manual or online on the Craftsman website.
  2. Identify Parts by Number: Each component is labeled with a specific number corresponding to its position in the opener.
  3. Cross-Reference Part Numbers: When ordering parts, use the part numbers from the diagram to ensure compatibility.

Installation Tips for Craftsman 1/2 HP Screw Drive Garage Door Opener Parts

Replacing parts can often be a DIY project if you’re comfortable with tools. Here are some helpful installation tips:

1. Gather Your Tools

Before you start, ensure you have all the necessary tools ready. Common tools include screwdrivers, pliers, and a socket set. Having everything at hand will streamline the installation process.

2. Safety First

Always unplug the garage door opener before beginning any repairs. If you’re working on the door itself, ensure it’s fully closed and secured.

3. Follow Instructions

Refer to the owner’s manual or installation guides that come with replacement parts. Many manufacturers provide detailed, step-by-step instructions for installation.

4. Take Your Time

Rushing through the installation can lead to mistakes. Take your time to ensure each part is installed correctly and securely.

5. Test After Installation

After replacing parts, reconnect the opener and test the system to ensure everything works properly. Pay attention to any unusual sounds or behaviors during operation.


Maintenance Tips for Your Craftsman 1/2 HP Screw Drive Garage Door Opener

Regular maintenance is key to extending the life of your garage door opener and minimizing the need for repairs. Here are some essential maintenance tips:

1. Regular Inspections

Perform routine inspections of all components. Look for signs of wear and tear, and listen for unusual noises during operation.

2. Lubrication

Lubricate moving parts, including the screw drive, trolley, and any hinges. This will help reduce friction and extend the lifespan of these components.

3. Check Safety Features

Regularly check that safety sensors are clean and properly aligned. Ensure they respond correctly by placing an object in their path.

4. Adjust Limit Switches

If you notice that the door is not stopping correctly, adjust the limit switches as needed. Regularly check their functionality to ensure safe operation.

5. Keep the Area Clean

Ensure that the area around the garage door is free of debris. This prevents obstruction during operation and keeps the sensors clear.


Common Issues with Craftsman 1/2 HP Screw Drive Garage Door Openers

Being aware of common problems can help you troubleshoot issues before they require extensive repairs. Here are some common issues to watch for:

1. Opener Won’t Respond

If your garage door opener doesn’t respond to the remote or wall switch, check the power supply and ensure the motor is functioning. If the problem persists, you may need to replace the logic board.

2. Door Moves Unevenly

If the garage door moves unevenly or stops midway, the trolley or screw drive may be misaligned. Ensure everything is properly aligned and lubricated.

3. Noisy Operation

Unusual noises can indicate a problem with the motor or screw drive. Ensure the screw drive is lubricated and check for any loose components.

4. Door Reverses Unexpectedly

If the door reverses without hitting an obstruction, the safety sensors may be misaligned or malfunctioning. Check the alignment and clean the sensors to ensure proper function.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


Conclusion

Owning a Craftsman 1/2 HP Screw Drive Garage Door Opener can greatly enhance your home’s convenience and security. Understanding the parts, where to find them, and how to perform maintenance and repairs will empower you to keep your garage door opener functioning smoothly. With this knowledge, you can address issues proactively and ensure that your garage door remains a reliable entry point to your home for years to come. Whether you need a new motor or just some basic maintenance supplies, knowing where to look will make your life much easier. Always remember to prioritize safety and consult professional help when needed, ensuring your garage door operates seamlessly and efficiently.

Craftsman 1/2 HP Garage Door Opener Parts in Canada: Your Complete Guide

Craftsman 1/2 Hp Garage Door Opener Parts Canada

When it comes to home convenience, few things are as valuable as a functional garage door opener. The Craftsman 1/2 HP Garage Door Opener is a popular choice among homeowners for its reliability and power. However, like any mechanical device, it may require parts replacement and maintenance over time. This guide will delve into the Craftsman 1/2 HP Garage Door Opener Parts Canada, helping you understand what parts you need, how to find them, and tips for installation and maintenance.

Craftsman 1/2 Hp Garage Door Opener Parts Canada

Understanding the Craftsman 1/2 HP Garage Door Opener

Before we dive into the specific parts, it’s essential to understand the overall structure and function of a Craftsman 1/2 HP garage door opener. This opener typically includes several key components that work together to allow for smooth and efficient operation. Here’s a brief overview:

  1. Motor: The heart of the opener, providing the power needed to lift and lower the garage door.
  2. Drive Gear and Worm Gear: These gears convert the motor’s rotational energy into linear motion, moving the door.
  3. Trolley and Rail: The trolley connects to the door and travels along the rail as it opens and closes.
  4. Limit Switches: These switches determine how far the door travels, ensuring it stops at the correct positions.
  5. Safety Sensors: Located at the base of the door tracks, they prevent the door from closing on obstructions.
  6. Logic Board: The control center that processes signals from remotes and wall switches.

Understanding these components is crucial for anyone looking to repair or replace parts in their garage door opener.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List


Common Parts for the Craftsman 1/2 HP Garage Door Opener

When discussing Craftsman 1/2 HP Garage Door Opener Parts Canada, it’s important to highlight some of the most common parts that may need replacement. Below is a detailed list of these parts along with their functions:

1. Motor Assembly

The motor assembly is the powerhouse of the opener. It is usually a 1/2 HP motor, which provides enough strength to lift most residential garage doors.

Replacement Parts: If your motor begins to struggle or makes unusual noises, it may need replacement. Replacement motors can be found through various retailers in Canada.

2. Drive Gear and Worm Gear

These gears are crucial for transferring power from the motor to the trolley. Over time, they can wear down, causing operational issues.

Replacement Parts: If you hear grinding noises or if the trolley is not moving properly, it might be time to replace these gears. Gear replacement kits are commonly available.

3. Trolley and Rail Assembly

The trolley connects the opener to the garage door and slides along the rail. A smooth operation is essential for effective door movement.

Maintenance Tip: Keep the rail clean and lubricated to ensure smooth operation. If the trolley shows signs of wear or damage, consider replacing it.

4. Limit Switches

Limit switches control how far the door travels, ensuring it stops at the desired position.

Common Issues: If your door doesn’t stop at the right height, the limit switches may need adjustment. Replacement limit switches can be found easily.

5. Safety Sensors

These sensors ensure the door doesn’t close on an object or person in its path. If they are misaligned or malfunctioning, your door might not close properly.

Maintenance Tip: Regularly check the sensors for alignment and clean the lenses. If they’re broken, replacement sensors are readily available.

6. Logic Board

The logic board controls the overall operation of the opener, interpreting signals from the remote and wall buttons.

Common Problems: If your opener is unresponsive, the logic board may need replacement. New boards are available at various retailers.


Where to Find Craftsman 1/2 HP Garage Door Opener Parts in Canada

Finding replacement parts in Canada can sometimes be challenging, especially for older models. However, several reliable sources are available:

1. Official Retailers

The best place to start is with official Craftsman retailers. Companies like Sears Canada or Lowe’s often have a dedicated section for garage door opener parts.

2. Online Marketplaces

Websites such as Amazon, eBay, or Canadian Tire frequently list Craftsman garage door opener parts. Be sure to check reviews and seller ratings to ensure quality.

3. Local Hardware Stores

Many local hardware stores carry a selection of garage door opener parts. It can be helpful to call ahead to see if they have what you need.

4. Specialty Garage Door Companies

Some companies specialize in garage door parts and repairs. They may have a wider selection and can often order specific parts for you.

5. Used Parts Suppliers

Consider checking with used parts suppliers, especially for older models. Websites and local classifieds often have listings for second-hand parts in good condition.


How to Identify the Right Parts Using a Diagram

Using a parts diagram can significantly simplify the process of identifying and replacing components of your Craftsman 1/2 HP garage door opener. Here’s how to effectively use a diagram:

  1. Locate the Diagram: You can usually find a diagram in the owner’s manual or online on the Craftsman website.
  2. Identify Parts by Number: Each part will be labeled with a specific number that corresponds to its position in the opener.
  3. Cross-Reference Part Numbers: When ordering parts, make sure to use the part numbers from the diagram to ensure compatibility.

Installation Tips for Craftsman 1/2 HP Garage Door Opener Parts

Installing replacement parts can often be a DIY task if you feel comfortable with tools. Here are some tips to guide you through the process:

1. Gather Your Tools

Before starting, make sure you have the necessary tools, including screwdrivers, pliers, and a wrench. Having everything ready will make the installation process smoother.

2. Safety First

Always unplug the garage door opener before beginning any repair work to avoid accidental activation. If you’re working on the door itself, ensure it’s fully closed and secured.

3. Follow Instructions

Refer to the owner’s manual or installation guides that come with replacement parts. Many manufacturers provide step-by-step instructions for installation.

4. Take Your Time

Rushing through the installation can lead to mistakes. Take your time to ensure each part is installed correctly and securely.

5. Test After Installation

After replacing parts, reconnect the opener and test the system to ensure everything works correctly. Pay attention to any unusual sounds or behaviors during operation.


Maintenance Tips for Your Craftsman 1/2 HP Garage Door Opener

Regular maintenance can extend the life of your garage door opener and minimize the need for repairs. Here are some useful maintenance tips:

1. Regular Inspections

Perform routine inspections of all components. Look for signs of wear and tear, and listen for unusual noises during operation.

2. Lubrication

Lubricate moving parts, including the trolley, rail, and any hinges. This will help reduce friction and extend the lifespan of these components.

3. Check Safety Features

Regularly check that safety sensors are clean and properly aligned. Make sure they respond correctly by placing an object in their path.

4. Adjust Limit Switches

If you notice that the door is not stopping correctly, adjust the limit switches as needed. Regularly check their functionality to ensure safe operation.

5. Keep the Area Clean

Ensure that the area around the garage door is free of debris. This prevents obstruction during operation and keeps the sensors clear.


Conclusion

Owning a Craftsman 1/2 HP Garage Door Opener provides convenience, but it also comes with the responsibility of maintenance and repairs. Understanding the various parts, where to find them in Canada, and how to install them can save you both time and money. With the right resources and a bit of DIY know-how, you can keep your garage door opener running smoothly for years to come. Whether you need a new motor or just some basic maintenance supplies, knowing where to look will make your life much easier. Always remember to prioritize safety and consult professional help when needed, ensuring your garage door remains a reliable entry point to your home.

Old Craftsman 1/2 HP Garage Door Opener Parts Diagram: A Comprehensive Guide

Old Craftsman 1 2 Hp Garage Door Opener Parts Diagram

Garage door openers are vital for the convenience and security of many homes, but they require maintenance, repairs, and sometimes part replacements to keep them working efficiently. For homeowners with an old Craftsman 1/2 HP garage door opener, having a parts diagram is essential to understanding the layout and function of each component. This article will walk you through the Old Craftsman 1/2 HP Garage Door Opener Parts Diagram, highlighting key parts, common issues, and maintenance tips.

Old Craftsman 1 2 Hp Garage Door Opener Parts Diagram

Understanding the Old Craftsman 1/2 HP Garage Door Opener Parts Diagram

The Craftsman 1/2 HP garage door opener has been a reliable model for years, known for its durability and power. However, like all mechanical devices, parts can wear out, requiring occasional replacements. Here’s a breakdown of the major components in the parts diagram, explaining each part’s role.

Key Parts in the Old Craftsman 1/2 HP Garage Door Opener Diagram

  1. Motor Assembly: The heart of the opener, responsible for powering the system to lift and lower the door.
  2. Drive Gear and Worm Gear: These components work together to transfer the motor’s power to the trolley, moving the door.
  3. Trolley and Rail Assembly: Connects to the door and moves it along the rail as directed by the motor.
  4. Limit Switches: Control how far the door travels up or down, ensuring it stops at the correct position.
  5. Logic Board: The “brain” of the system, interpreting signals from remotes, wall buttons, and sensors.
  6. Safety Sensors: Located at the base of the garage door tracks, they ensure the door doesn’t close if an obstruction is detected.

Each of these parts plays a critical role in the overall functionality of the opener. The diagram provides a clear layout of these components, showing how they fit together and work as a system.


Benefits of Using the Parts Diagram for Maintenance and Repairs

A parts diagram serves as a valuable tool for anyone looking to maintain or repair their Craftsman garage door opener. By understanding the layout and role of each component, you can quickly identify and resolve issues. Here’s why referencing the parts diagram can be so helpful:

  • Quick Identification: Spotting damaged or worn-out parts is easier when you know exactly where they are located and what they look like.
  • Efficient Repairs: With a clear diagram, you can plan repairs and replacements step-by-step without unnecessary disassembly.
  • Accurate Part Replacement: Diagrams ensure you select the right part, as each is labeled with a specific part number, reducing the risk of installing incompatible parts.

Old Craftsman 1/2 HP Garage Door Opener Parts Diagram: Essential Components Breakdown

To better understand the diagram, let’s dive deeper into the roles and maintenance of each main part.

1. Motor Assembly

The motor is the primary power source, operating the drive mechanism to open and close the door. Craftsman 1/2 HP motors are powerful enough to lift most residential garage doors but may require servicing if they become noisy or fail to work smoothly.

  • Maintenance Tip: Periodically inspect the motor for dust accumulation and ensure that the wiring connections remain tight.

Read too: Craftsman 3/4 HP Garage Door Opener Parts List

2. Drive Gear and Worm Gear

These gears are central to the opener’s operation, converting the motor’s rotation into linear motion that drives the trolley along the rail.

  • Common Issue: Over time, these gears can wear down, causing grinding noises or a lack of movement in the trolley.
  • Replacement: Craftsman often provides a gear replacement kit. The parts diagram helps in identifying the exact gears needed for replacement.

3. Trolley and Rail Assembly

This assembly connects to the door, guiding it up and down. The trolley runs along the rail, moving the door at the command of the motor and drive gear.

  • Maintenance: Regular lubrication of the rail and trolley reduces friction, prolonging their lifespan.
  • Troubleshooting: If the trolley seems stuck or is moving inconsistently, check for obstructions along the rail and confirm the drive gears are in good condition.

4. Limit Switches

Limit switches determine where the door stops when opening or closing, preventing it from traveling too far. They are adjustable and play a critical role in safe operation.

  • Common Problem: Faulty limit switches may cause the door to stop in the wrong position, requiring adjustment or replacement.
  • Adjustment: Using the parts diagram, locate the limit switch mechanism and adjust it according to the manufacturer’s specifications.

5. Logic Board

The logic board acts as the system’s control center, processing inputs from remotes, wall switches, and safety sensors. It’s a sensitive component that may need replacement if exposed to electrical surges.

  • Signs of Trouble: If your opener is unresponsive or acting erratically, a malfunctioning logic board may be the cause.
  • Solution: Use the diagram to find the board’s exact location and remove it carefully for testing or replacement.

6. Safety Sensors

Safety sensors are crucial for preventing accidents by stopping the door from closing on objects in its path. Located on either side of the garage door near the ground, these sensors emit an infrared beam across the door opening.

  • Troubleshooting Tips: If the door won’t close, check the alignment of the sensors or clean their lenses. The diagram will help locate wiring connections if further inspection is needed.

Common Issues with Old Craftsman 1/2 HP Garage Door Openers

Garage door openers, especially older models, are prone to some common issues. Here’s a quick rundown of what you might encounter and how the parts diagram can assist.

Door Not Opening or Closing Fully

If the door isn’t traveling its full range, the limit switches may need adjustment. Refer to the parts diagram to locate these switches and adjust them to correct the door’s travel limits.

Motor Runs but Door Doesn’t Move

This issue is often caused by a worn-out drive gear. Using the parts diagram, locate the drive and worm gear assembly and inspect for signs of wear. Replacing these parts can often resolve the problem.

Unusual Noises

Grinding, screeching, or rattling sounds typically indicate that gears, the trolley, or the rail require maintenance. Lubrication often reduces noise, but if parts are worn, the diagram will help identify the replacement parts needed.


How to Use the Old Craftsman 1/2 HP Garage Door Opener Parts Diagram for DIY Repairs

The parts diagram isn’t just a tool for identification; it’s also essential for anyone performing their repairs. Here’s how to make the most of it:

  1. Gather Tools: Review the diagram to see what tools you may need, such as wrenches, screwdrivers, or specialty parts.
  2. Follow a Step-By-Step Approach: Use the diagram to understand the sequence of part removal and replacement.
  3. Identify Replacement Part Numbers: Each part will have a specific number in the diagram, which is useful when ordering replacements.
  4. Check Manufacturer Guidelines: Refer to the Craftsman manual for additional information, as certain parts may need professional installation.

Where to Find Replacement Parts for an Old Craftsman 1/2 HP Garage Door Opener

Locating parts for older models can sometimes be a challenge, but several reliable sources are available:

  • Official Craftsman Parts Retailers: Sears PartsDirect and other official retailers often have older parts in stock.
  • Online Marketplaces: Websites like eBay or Amazon may carry discontinued parts, often sold by individual sellers or third-party suppliers.
  • Local Repair Shops: Many garage door repair companies keep stock of older opener parts or can order them for you.

Always cross-reference the part number with the diagram to ensure compatibility before purchasing.


Conclusion

An Old Craftsman 1/2 HP Garage Door Opener Parts Diagram is an invaluable resource for anyone looking to maintain, repair, or restore an aging Craftsman garage door opener. From identifying and troubleshooting parts to sourcing replacements, having a clear understanding of each component’s function is essential. By following the guidance in this article, homeowners can extend the life of their opener, ensuring it runs smoothly and safely for years to come. Whether you’re dealing with a simple alignment issue or a more complex mechanical fault, the parts diagram is your map to a well-functioning garage door system.
