The Manual Craftsman Garage Door Opener 1/2 HP Chain Drive is a trusted and widely used garage door opener known for its affordability, reliability, and straightforward mechanics. Whether you’re a homeowner, property manager, or DIY enthusiast, understanding how to operate, maintain, and troubleshoot this chain-driven garage door opener is essential for smooth daily use and long-term durability.
This comprehensive guide will walk you through the components of the Craftsman 1/2 HP Chain Drive Garage Door Opener, highlight common issues, provide detailed maintenance tips, and explain how to interpret your model’s user manual effectively.
Read tooo: Craftsman Garage Door Opener 1/2 HP Programming for Effortless Setup
Introduction to the Manual Craftsman Garage Door Opener 1/2 HP Chain Drive

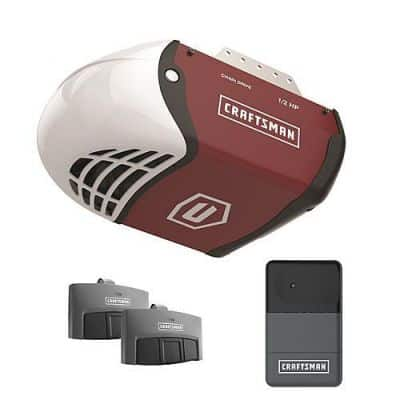

The Craftsman 1/2 HP Chain Drive Garage Door Opener is designed to lift residential garage doors with ease. It’s especially well-suited for sectional garage doors up to 7 feet in height, and with extension kits, it can support even taller doors. This model uses a powerful AC motor and a steel chain drive mechanism, making it dependable for harsh weather conditions and daily use.
The manual Craftsman garage door opener 1/2 HP chain drive serves as your go-to reference for installation, operation, programming, and regular upkeep. It’s essential reading if you’re planning to install one yourself or if you’re experiencing any mechanical or electronic issues.
What’s Included in the Craftsman Chain Drive Opener Manual?
A properly detailed Craftsman opener manual includes the following key sections:
- Safety precautions
- Hardware list and tools required
- Step-by-step installation guide
- Wiring diagrams
- Remote control and keypad programming
- Troubleshooting tips
- Maintenance schedules
- Replacement part identification
Whether your garage opener was newly purchased or already installed in your home, reading the manual is the first step in understanding how to get the most out of your unit.
Benefits of Using a Chain Drive System
Before diving into maintenance and usage, let’s explore why the Craftsman 1/2 HP chain drive model is a favorite:
- Durability: Chain drives are highly durable and great for heavy garage doors.
- Affordability: Less expensive than belt or screw drive systems.
- Consistency: Performs reliably even in extreme weather.
- Widespread Availability: Parts are easy to find and inexpensive to replace.
Manual Craftsman Garage Door Opener 1/2 HP Chain Drive – Setup & Installation
Tools You’ll Need:
- Stepladder
- Power drill
- Adjustable wrench
- Screwdrivers
- Stud finder
- Level
- Tape measure
- Safety glasses
Step-by-Step Installation Overview:
- Assemble the Rail and Chain: Connect the rail sections and thread the chain according to the manual’s diagram.
- Mount the Rail to the Motor Unit: Attach the assembled rail to the motor housing.
- Install the Header Bracket: This is mounted above your garage door.
- Position and Secure the Opener: Lift and attach the opener to ceiling joists using angle iron supports.
- Connect the Door Arm and Bracket: These connect the trolley to your garage door.
- Install Safety Sensors: Position the sensors on each side of the door, no higher than 6 inches from the ground.
- Plug In and Test: Power the opener and run a test open/close cycle.
Each of these steps is explained with images and diagrams in the Manual Craftsman Garage Door Opener 1/2 HP Chain Drive booklet.
Programming the Remote and Keypad
Craftsman openers are known for easy-to-use remote systems. You can typically program a remote in under a minute:
- Press and release the “Learn” button on the back of the opener unit.
- Within 30 seconds, press and hold the button on your remote until the light on the opener blinks.
- For keypads, enter your desired code after pressing the Learn button, then press Enter.
Your manual provides detailed illustrations to guide you through this process for up to three remote devices.
Maintenance Tips from the Manual Craftsman Garage Door Opener 1/2 HP Chain Drive
To extend the life of your garage door opener and ensure it operates safely, follow this simple maintenance checklist:
- Lubricate the chain with garage door lubricant every 6 months.
- Tighten bolts and screws to prevent vibration-related wear.
- Test the safety reversal system monthly. Place an object under the door; it should reverse upon contact.
- Clean the sensor lenses regularly to maintain optimal sensor function.
- Check the balance of the garage door by pulling the emergency release and lifting manually. It should stay open halfway without assistance.
The manual outlines these tasks in a seasonal maintenance chart that helps you stay on top of upkeep.
Common Issues and Troubleshooting
Even the best garage door openers run into occasional issues. The Craftsman 1/2 HP Chain Drive manual offers easy fixes for many of them:
Door Doesn’t Open or Close
- Check if the opener is plugged in.
- Ensure the circuit breaker hasn’t tripped.
- Inspect the safety sensor alignment.
Remote Control Isn’t Working
- Replace the battery.
- Reprogram the remote using the Learn button.
- Remove signal interference by relocating wireless devices.
Door Reverses Before Hitting the Floor
- Adjust the down force or travel limit screws.
- Check for obstructions or debris on the track.
Grinding Noise or Jerky Movement
- Lubricate chain and sprockets.
- Inspect gear and sprocket assembly for wear.
If these fixes don’t help, your manual will include error codes (via blinking lights) that guide you toward the correct part to replace.
Replacement Parts and Accessories
Some parts that may need replacing over time include:
- Chain and Sprocket Kit
- Logic Board
- Safety Sensors
- Travel Limit Switch
- Wall Control Panel
- Battery Backup (if equipped)
Replacement part numbers are listed in your manual, making it easier to shop online or at hardware stores.
Where to Find the Manual
Lost your physical copy? No problem. You can download the Manual Craftsman Garage Door Opener 1/2 HP Chain Drive in PDF format from:
- Sears PartsDirect
- Manualslib
- Manufacturer’s website
- Home improvement forums
Ensure that you’re downloading the manual for your specific model number (found on the back or side of your motor housing).
FAQs
Q: How do I find the model number of my Craftsman opener?
A: Look for a white sticker on the back or underside of the motor housing near the light bulb socket.
Q: Is the chain supposed to be loose?
A: No. It should have about 1/2 inch of give. A loose chain can jump off the sprocket and damage the drive system.
Q: Can I upgrade to a belt drive?
A: Not with the same opener motor. You would need a new unit. However, chain drives remain very dependable and cost-effective.
Final Thoughts
The Manual Craftsman Garage Door Opener 1/2 HP Chain Drive is more than just an instruction booklet—it’s your key to safely and efficiently maintaining one of the most-used devices in your home. Understanding your garage door opener’s mechanics, safety features, and regular maintenance will ensure it runs smoothly for years.
By referencing your manual regularly and following best practices, you’ll avoid costly repairs and enjoy peace of mind knowing your home’s entry point is secure and reliable.
