Garage doors are a crucial part of home security and convenience. However, many homeowners face the issue of their garage doors not closing or opening completely. If you’ve installed or recently reprogrammed your Craftsman garage door opener, learning how to set limits on a Craftsman garage door opener is essential to ensure smooth operation, avoid potential damage, and maintain safety.
This comprehensive guide will walk you through the process of setting and adjusting limits on your Craftsman opener, explain why it matters, what tools you may need, and answer frequently asked questions from homeowners dealing with this common garage issue.
Read too: Craftsman Garage Door Keypad Not Working? Here’s How to Troubleshoot and Fix It
How To Set Limits On A Craftsman Garage Door Opener
Setting the travel limits tells the opener when to stop when the garage door is fully open or closed. Without correct limit settings, the door may:
- Reverse before reaching the floor
- Remain slightly open
- Fail to open fully
The Craftsman garage door opener, especially those with chain drive and belt drive models, includes mechanical or electronic limit settings depending on the model’s age and design. Here’s how to correctly set them.
🔧 Step 1: Understand Your Craftsman Model Type
Before proceeding, determine whether your model uses manual adjustment screws (usually older models) or smart limit programming buttons (for newer MyQ-enabled Craftsman openers). You can usually find this information in the user manual or by checking the motor housing unit.

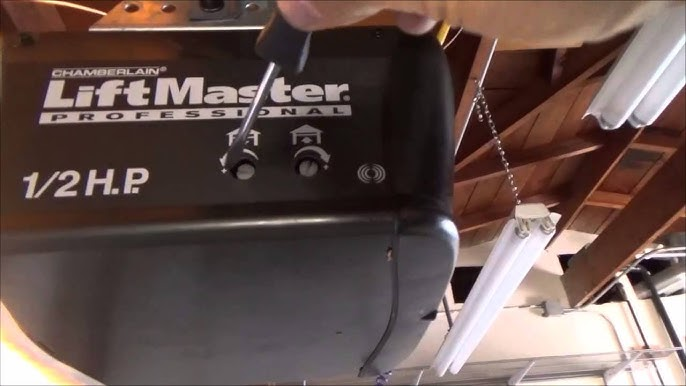

- Manual Limit Models: Use two screws labeled UP and DOWN.
- Electronic Limit Models: Use smart button controls often labeled “SET,” “UP,” and “DOWN.”
🔌 Step 2: Safety First
Before adjusting any limits, follow these safety precautions:
- Unplug the opener or disconnect the power to prevent accidental activation.
- Make sure the garage door is closed before starting.
- Keep children and pets away from the work area.
⚙️ Step 3: Access the Limit Adjustment Panel
Locate the limit switch mechanism. On most Craftsman models, this is found:
- Beneath the light cover on the opener housing
- Near the rear of the motor head
- Or alongside the unit with clearly labeled dials or buttons
Use a step ladder to access it safely if mounted high.
🔩 Step 4: Adjust the Close Limit
If your garage door doesn’t close completely or reverses before hitting the ground:
- Manual Model: Turn the DOWN screw clockwise to increase the travel distance. One full turn equals about 2 inches.
- Electronic Model: Press and hold the SET button until the LED blinks. Press and hold the DOWN arrow until the door reaches the desired closed position. Then press SET again to save.
Test the door by activating it from the wall panel or remote. If it doesn’t close properly, fine-tune with slight additional turns or button presses.
🔼 Step 5: Adjust the Open Limit
If the garage door opens too far or doesn’t open fully:
- Manual Model: Turn the UP screw clockwise to increase the up travel.
- Electronic Model: Press and hold the SET button. Then hold the UP arrow until the door opens fully. Press SET to confirm.
Again, activate the door to test the function.
🛠 Step 6: Final Testing and Safety Sensor Check
Once both limits are set:
- Plug the opener back in.
- Activate the door to go through a full cycle (open and close).
- Watch for any unusual sounds or abrupt stops.
- Ensure the safety reversal system is functioning—wave an object in the door’s path while closing. The door should automatically reverse.
🧠 Why Proper Limit Settings Matter
Here’s why knowing how to set limits on a Craftsman garage door opener is more than just convenience:
- 🛡 Safety: Prevents the door from crushing objects or reversing unexpectedly.
- 🔧 Longevity: Avoids overworking the motor and mechanical components.
- 🧱 Security: Ensures the door fully closes, protecting your home from intruders.
- 🔇 Noise Reduction: A properly set opener runs more quietly with less vibration.
🕵️♂️ Troubleshooting Common Issues When Setting Limits
Even after following the steps, you may encounter a few hiccups. Here are solutions to common problems:
❌ Door Closes Then Immediately Opens
Cause: The down limit is set too far and triggers the safety reversal system.
Fix: Turn the down limit screw counterclockwise slightly or adjust the electronic limit.
🚪 Door Doesn’t Close Completely
Cause: The down limit is too short, or the safety sensors are misaligned.
Fix: Realign sensors at the bottom of the tracks and slightly increase the down limit.
🔄 Door Won’t Open All the Way
Cause: The up limit is too low.
Fix: Turn the up limit screw clockwise or press the up button to increase travel.
🧰 Tools You May Need
For manual limit adjustment models:
- Flathead screwdriver
- Step ladder
- Work gloves
- Flashlight
- Craftsman opener manual (optional but helpful)
For newer smart models:
- Nothing more than the wall control panel or remote
🧪 How to Know If You Need to Reset Your Limits
You may need to adjust or reset your limit settings if:
- You’ve replaced your garage door
- The motor was reinstalled or repaired
- The door is slamming down or stopping mid-way
- A power outage or surge reset the opener’s memory
In such cases, reprogramming the limits using the above steps is a must.
📦 Craftsman Openers with Smart Limit Memory
Some newer Craftsman MyQ models automatically detect limit positions after initial setup. However, you may still need to fine-tune these if the door misbehaves or gets stuck mid-travel.
These models usually include:
- LED indicators for diagnostics
- Auto force adjustment
- Motion sensors and WiFi connectivity
Refer to your Craftsman smart opener’s manual for model-specific instructions.
💡 Pro Tips for Garage Door Limit Settings
- Mark original positions of the screws before adjusting for reference.
- Make small adjustments and test after each.
- Lubricate moving parts to ensure accurate performance post-adjustment.
- Reset opener to factory settings if you’re unsure about previous adjustments.
🤔 FAQs: How To Set Limits On A Craftsman Garage Door Opener
Q: How long does it take to set limits?
A: Typically 10–15 minutes for experienced users, a bit longer for first-timers.
Q: Do I need to reset the remote after adjusting limits?
A: No. Limit settings and remote programming are separate processes.
Q: Why does my Craftsman garage door reverse after hitting the ground?
A: The down limit is set too far. The opener thinks it’s hit an obstruction and reverses.
Q: Can I use my smartphone to adjust limits?
A: Only with MyQ-enabled smart openers. Use the MyQ app or follow on-screen prompts.
🔚 Final Thoughts
Learning how to set limits on a Craftsman garage door opener ensures optimal functionality, safety, and convenience. Whether you’re using an older manual model or a newer smart system, proper adjustment can prevent issues like improper closures, door reversals, and mechanical strain.
By following the steps outlined in this guide, you can confidently troubleshoot and fine-tune your garage door opener for reliable performance every day. Don’t hesitate to consult your model’s user manual for diagrams or contact a professional if something doesn’t feel right.
